16.5ti-S Heavyweight Winch

Manufacturer part number: 97740
This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
$2,937.99
This Warn Industries 16.5ti-S 12 volt electric Winch is vehicle mounted and has a pull capacity of 16,500 pound. It has a 80 feet wire rope. Note: This Winch will require winch mount for proper installation. Part number 97740

Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle. Please visit our Mounting & Protection category for available options.
+ -

With a massive 16,500 lbs. of pulling capacity, the 16.5ti-s is not only the most powerful truck winch we make, it's also now available with 80' of 3/8" lightweight, easy-to-handle Spydura® Pro synthetic rope. The rope's heat-treated construction provides maximum tensile strength, and the temperature-resistant sleeve on the first layer provides maximum heat protection. This winch also features a thermometric indicator which provides operator feedback during the winching process and is great for the biggest, heaviest vehicles on or off the pavement.

  • 16,500 lb. capacity
  • Includes 80' of 3/8" Spydura Pro synthetic rope
  • Includes 18,000 lb capacity EPIC hook
  • Thermometric indicator LED provides operator feedback
  • Large-frame winch architecture mounts feet forward
  • Contactor control for the ultimate in reliable electronics
  • Powerful, efficient series-wound motor
  • Durable, smooth three-stage planetary gear train
  • Best-in-class cone brake
  • Limited lifetime warranty

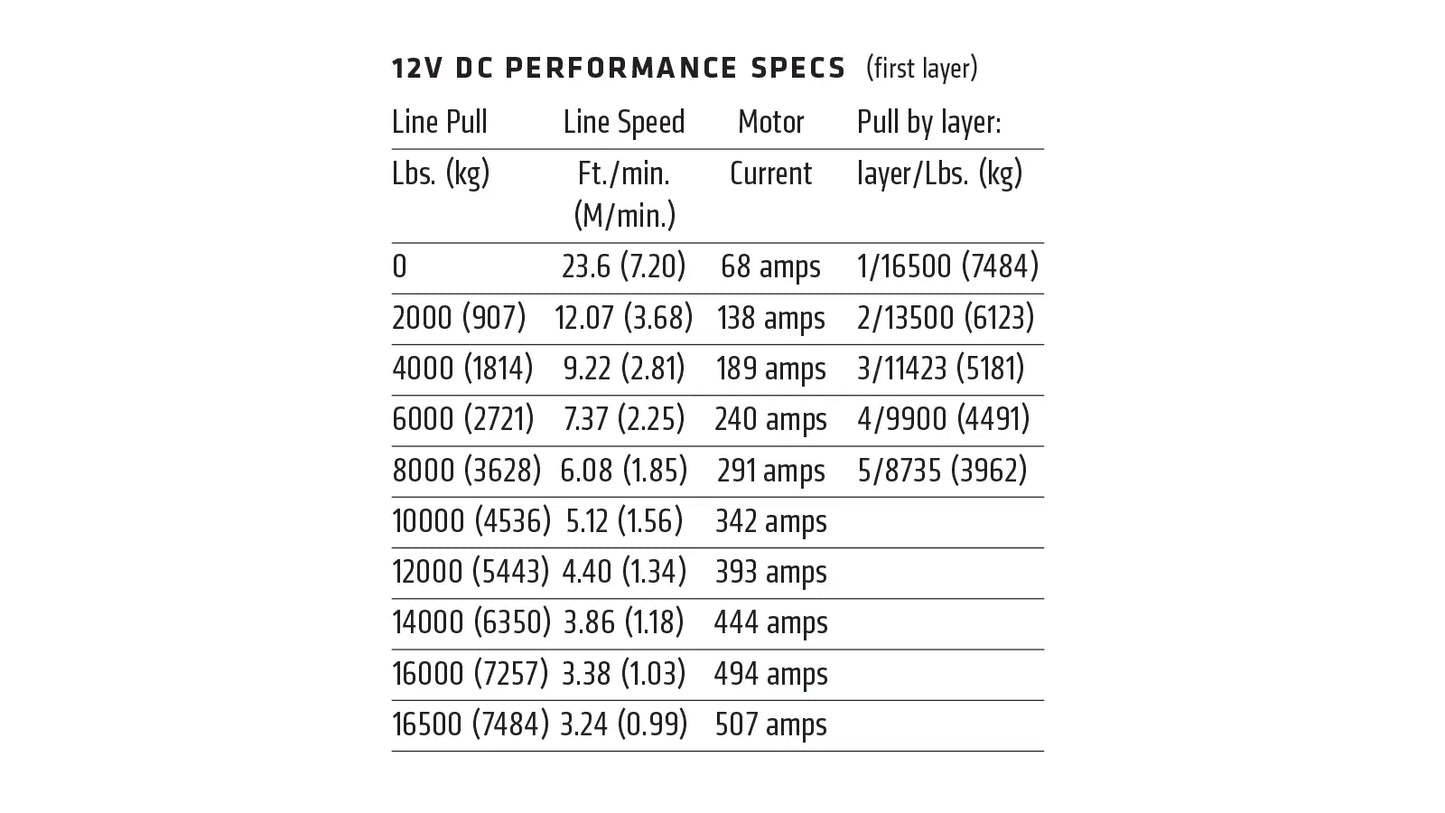

Products specifications
Type Electric
Mount Type Vehicle Mounted
Recommended Use Vehicle Recovery
Voltage 12 Volt
Motor Horsepower 4.6 Horsepower
Electrical Control Type Contactors
Motor Type Series Wound
Drive Gear Type Planetary
Gear Reduction Ratio 315:1
Free Spooling Yes
Brake Type Direct Drive Cone
Line Diameter (IN) 3/8 Inch
Line Length (FT) 80 Feet
Line Material Synthetic
Fairlead Type Hawse
Conforms To J706 Standards No
Remote Type 12 Feet Wired
Mounting Hole Quantity 4
Operation Type Automatic
Mounting Pattern Length (IN) 10 Inch
Mounting Pattern Width (IN) 4-1/2 Inch
Includes Mounting Hardware No
Color Black
Max Amp Draw/ Line Pull 507 Amp Draw/ 16500 Pound
Max Line Pull/ Line Speed 16500 Pound/ 3.24 Feet Per Minute
Write your own review Close Review Form
  • Only registered users can write reviews
  • Bad
  • Excellent
Description

With a massive 16,500 lbs. of pulling capacity, the 16.5ti-s is not only the most powerful truck winch we make, it's also now available with 80' of 3/8" lightweight, easy-to-handle Spydura® Pro synthetic rope. The rope's heat-treated construction provides maximum tensile strength, and the temperature-resistant sleeve on the first layer provides maximum heat protection. This winch also features a thermometric indicator which provides operator feedback during the winching process and is great for the biggest, heaviest vehicles on or off the pavement.

  • 16,500 lb. capacity
  • Includes 80' of 3/8" Spydura Pro synthetic rope
  • Includes 18,000 lb capacity EPIC hook
  • Thermometric indicator LED provides operator feedback
  • Large-frame winch architecture mounts feet forward
  • Contactor control for the ultimate in reliable electronics
  • Powerful, efficient series-wound motor
  • Durable, smooth three-stage planetary gear train
  • Best-in-class cone brake
  • Limited lifetime warranty
Products specifications
Type Electric
Mount Type Vehicle Mounted
Recommended Use Vehicle Recovery
Voltage 12 Volt
Motor Horsepower 4.6 Horsepower
Electrical Control Type Contactors
Motor Type Series Wound
Drive Gear Type Planetary
Gear Reduction Ratio 315:1
Free Spooling Yes
Brake Type Direct Drive Cone
Line Diameter (IN) 3/8 Inch
Line Length (FT) 80 Feet
Line Material Synthetic
Fairlead Type Hawse
Conforms To J706 Standards No
Remote Type 12 Feet Wired
Mounting Hole Quantity 4
Operation Type Automatic
Mounting Pattern Length (IN) 10 Inch
Mounting Pattern Width (IN) 4-1/2 Inch
Includes Mounting Hardware No
Color Black
Max Amp Draw/ Line Pull 507 Amp Draw/ 16500 Pound
Max Line Pull/ Line Speed 16500 Pound/ 3.24 Feet Per Minute
