Industrial Winches
Which Winch Is Right For You?
Compare every WARN industrial winch series — DC Electric, Hydraulic, and Severe Duty specs side by side.
Industrial Winches
Winch Comparison
DC Electric
1 Series

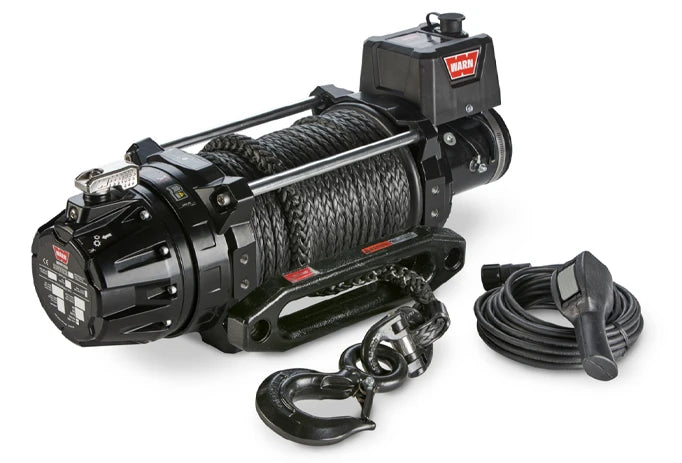

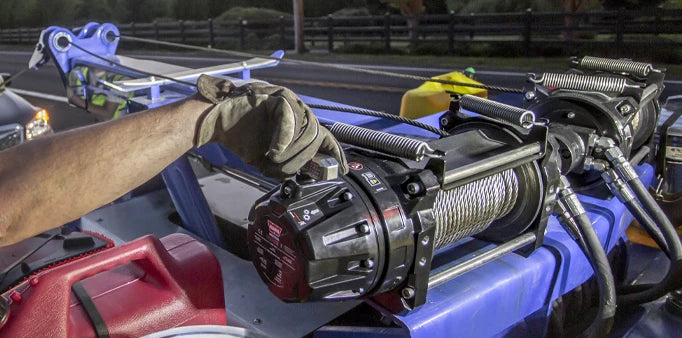

The all-new line-up of Series G2 DC Electric winches are ideal for first responders, utility vehicles, and other applications where an electric winch is preferred. New levels of performance, durability, and efficiency help to get the jobs done quickly and reliably time after time. More configurable than ever before so you get the right winch for the job. Available in 9,000, 12,000, 15,000, and 18,000 lb capacities with wire drum or Spydura Pro synthetic rope options across 12V and 24V configurations.
Key Specs
Hydraulic
2 Series

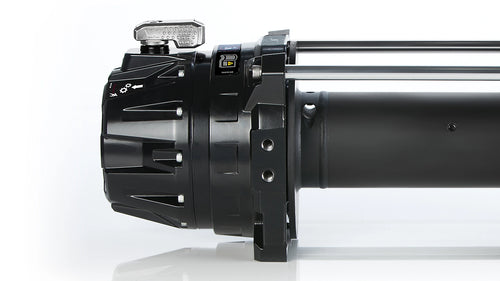

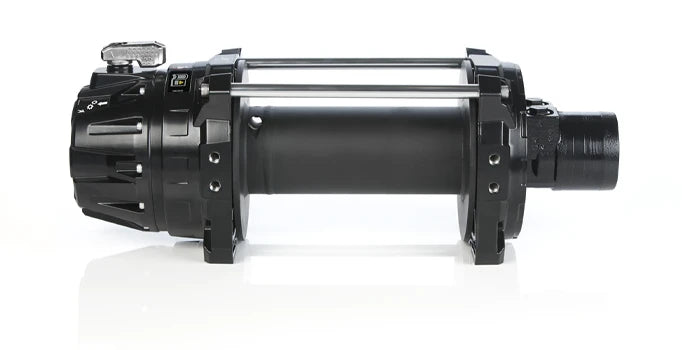

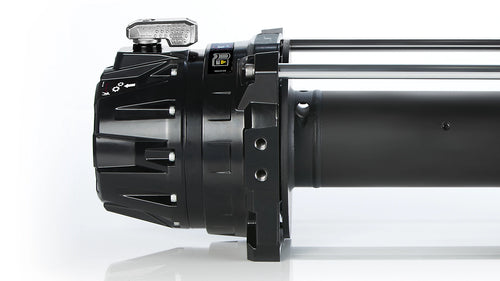

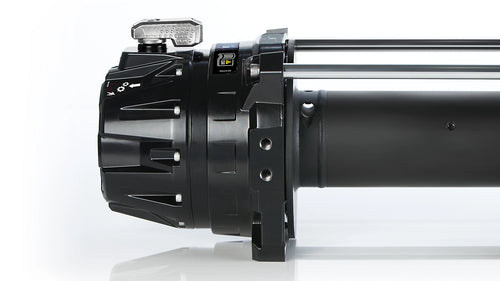

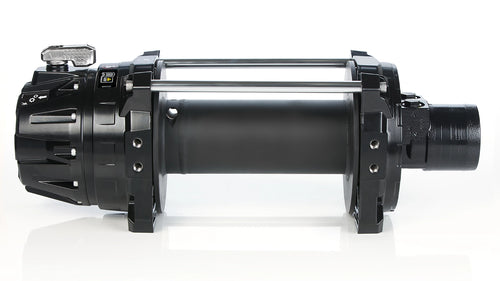

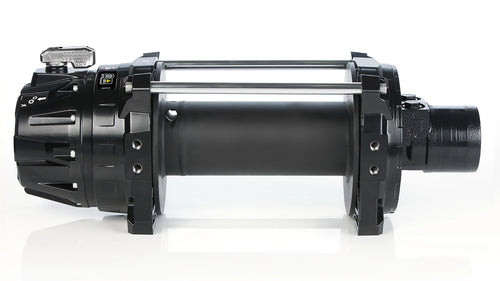

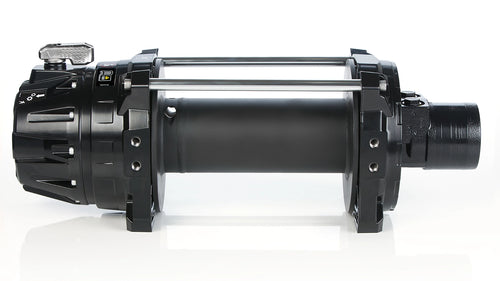

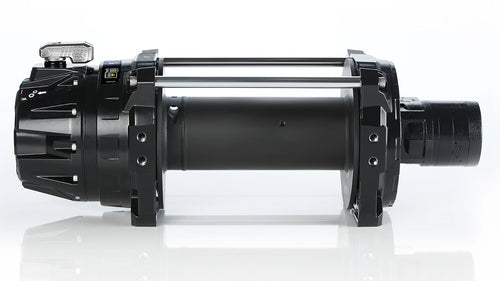

Jobs in the towing industry require your winch to be turning all day long. So WARN gave the all-new Series G2 hydraulic winches a more robust and serviceable design with a stronger gear train for increased performance. Less maintenance and less downtime means more work and more money made. All-new structural design makes the clutch mount exceedingly durable, with a 10" throw on the freespool clutch for easier remote clutch operation. Available in 9,000, 12,000, 15,000, and 18,000 lb capacities.
Key Specs

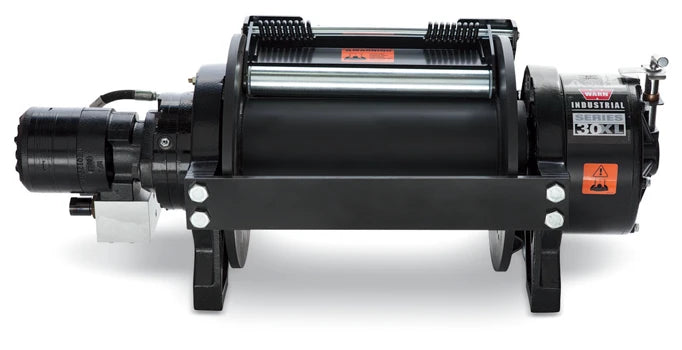

With cast-iron construction, two-stage planetary gear train, and spring-applied disc brake, the Series XL is the best choice for heavy industrial use. Choose from 20,000 lb or 30,000 lb capacities, manual or air clutches, and standard or long-drum models. Available in standard and XL-LP (low-pressure) configurations for hydraulic systems that operate below 3,000 PSI, plus a Series XL 2-Speed model that doubles the speed of the standard Series XL for fast rope retrieval and increased productivity.
Key Specs
Severe Duty
1 Series

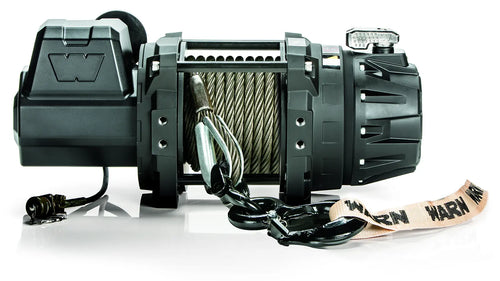

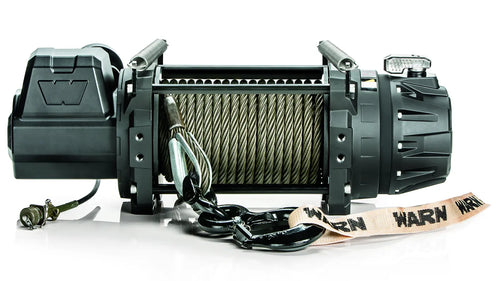

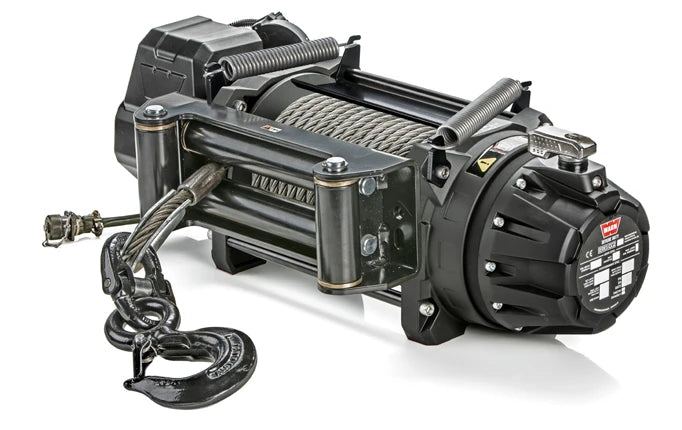

The completely redesigned line-up of Series G2 Severe Duty winches are the ultimate winch for the most demanding conditions worldwide. Ideally suited to military applications, these winches have unique features that make them nearly indestructible no matter the extreme situation. Upgraded winch sealing in multiple locations provides IP-68 / IP-69K waterproof protection for outstanding reliability and long product life in all conditions. Severe Duty models meet stringent MIL-STD-1184 waterproofing standards. Available in Severe Duty 12 (12,000 lb) and Severe Duty 18 (18,000 lb) configurations.
Key Specs
Planetary Hoists
1 Series
If you need optimum power in lifting operations, look no further. WARN Industrial hoists combine the performance of heavy-duty motors with hardened steel planetary geartrains to provide lift assists you can count on. WARN DC electric hoists are available with 12V and 24V motors, while hydraulic hoists work with all hydraulic systems. All WARN hoists comply with tough global quality standards.
Key Specs

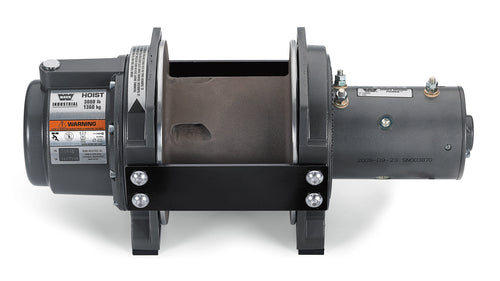

DC3000 12V Hoist
Shop Now

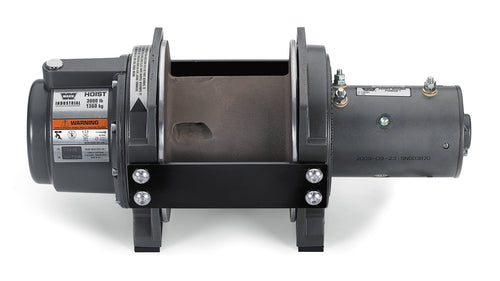

DC3000 24V Hoist
Shop Now

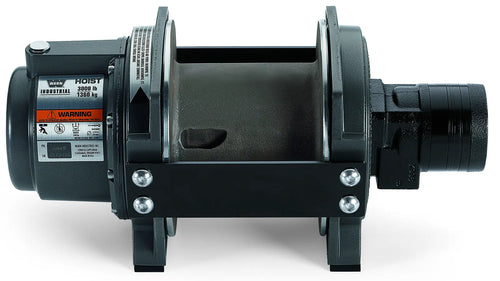

HY3000 Hoist
Shop Now

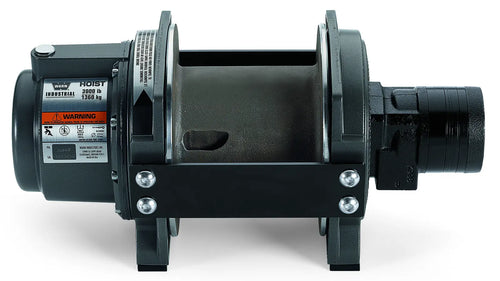

HY3000 Hoist - Anti-Clockwise
Shop Now

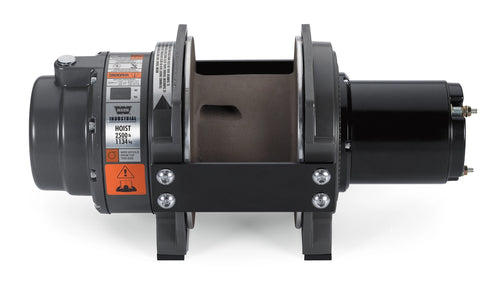

DC2500 12V Hoist - Anti-Clockwise
Shop Now

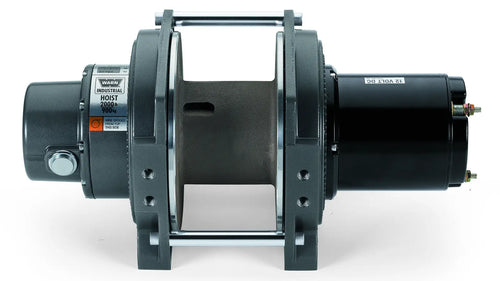

DC2000 LF 12V Hoist
Shop Now

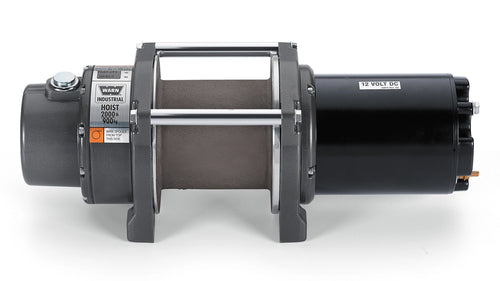

DC2000 MF 24V Hoist
Shop Now

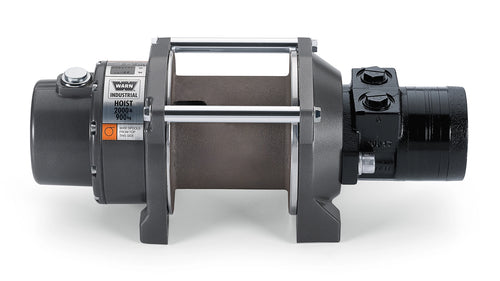

HY2000 Hoist
Shop Now

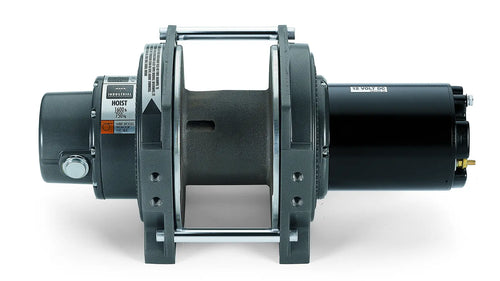

DC1600 12V Hoist
Shop Now

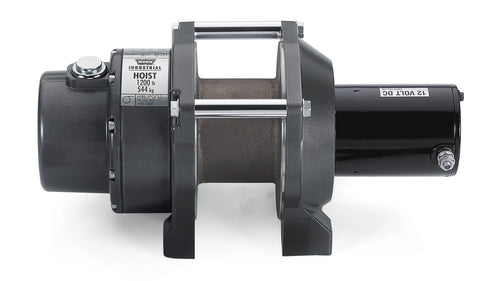

DC1200 24V Hoist
Shop Now

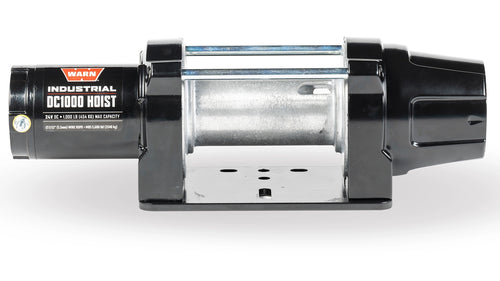

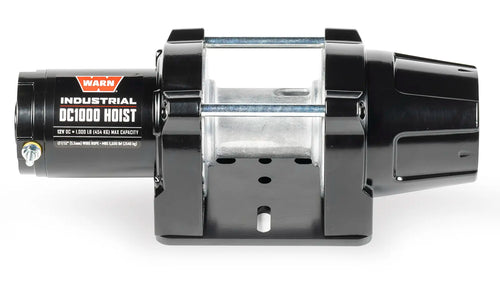

DC1000 12V Hoist - Short Drum
Shop Now

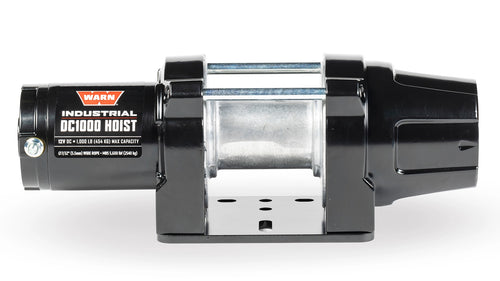

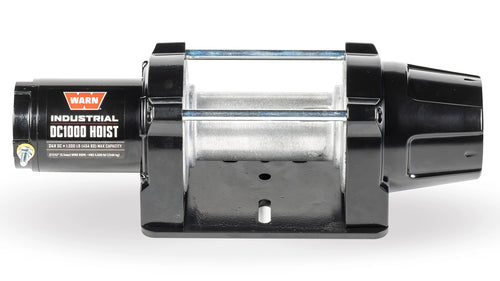

DC1000 24V Hoist
Shop Now

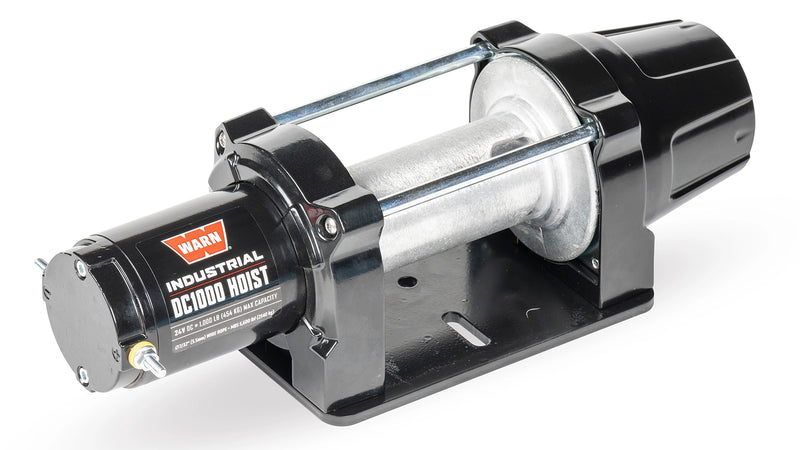

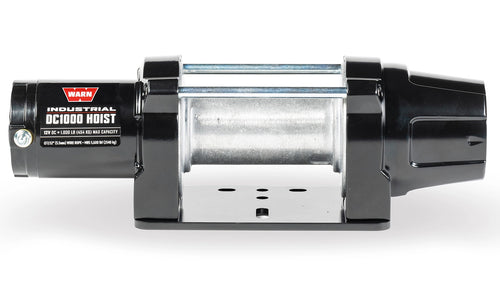

DC1000 12V Hoist
Shop Now

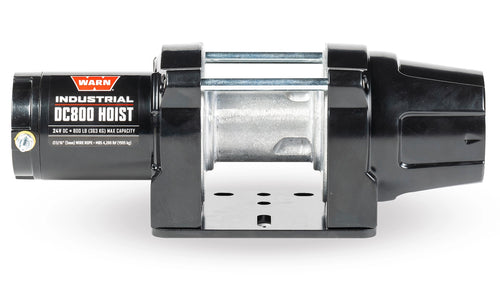

DC800 24V Hoist
Shop Now
Side-by-Side Comparison
All WARN industrial winch series at a glance
| Feature | Series G2 DC | Series G2 Hydraulic | Series XL Hydraulic | Series G2 Severe Duty | Planetary Hoists |
|---|---|---|---|---|---|
| Capacity Range | 9,000–18,000 lb | 9,000–18,000 lb | 20,000–30,000 lb | 12,000–18,000 lb | 800–4,000 lbf |
| Power Source | 12V / 24V DC | Hydraulic | Hydraulic | 24V DC | 12V / 24V DC & Hydraulic |
| Generation | G2 (Next Gen) | G2 (Next Gen) | XL (Heavy) | G2 (Redesigned) | Planetary Gear |
| Geartrain | Planetary | 2-Stage Planetary | 2-Stage Planetary (Aircraft Grade) | 3-Stage Planetary | 3-Stage Planetary |
| Speed Options | Standard | Standard | Standard or 2-Speed | Standard | Standard |
| Vibration Reduction | Up to 65% reduced | — | — | — | — |
| Waterproof Rating | SAE J706 / EN-14492 | SAE J706 / EN-14492 | SAE J706 / CE | IP68 / IP69K / MIL-STD-1184 | Robust Sealing |
| Contactor | New 2-Coil Contactor | — | — | Industrial Contactor | — |
| OLI / Overload Protection | — | — | — | ✓ OLI Module | — |
| CARC Coating | — | — | — | ✓ | — |
| Potted Electronics | — | — | — | ✓ | — |
| Clutch Options | Manual | Manual or Air | Manual or Air | Manual | — |
| Rope Included | ✓ Spydura Pro (select models) | — | — | Wire Rope Only | — |
| Military / Defense Ready | — | — | — | ✓ | — |
| Standards | SAE J706 / EN-14492 | SAE J706 / EN-14492 | SAE J706 / CE | SAE / MIL-STD-1184 | Global Quality Standards |
| Tier | DC Electric | Hydraulic | Hydraulic | Severe Duty | Planetary Hoist |
* Specs based on current model year. See individual product pages for model-specific part numbers and configurations.
