ATV, UTV & Powersports Winches

Which Winch Is Right For You?

Compare every WARN powersports winch series — R-Series, VRX, and Axon specs, features, and performance side by side.

ATV, UTV & Powersports

Winch Comparison

Need a side-by-side spec sheet? Jump to the full comparison chart. View Comparison Chart →
Standard 1 Series
2,500–6,000 lb
Capacity
IP67
Waterproof
5-yr / 3-yr
Warranty

THE NAME YOU TRUST, THE PRICE YOU DEMAND. With the WARN R-Series, you simply get more. More waterproofing, more capacity, more metal, and a more comprehensive warranty. When you compare the specs, you’ll see that our dominance is in the details. Engineered in-house at our Oregon headquarters, these winches are built to Warn’s specs and put through rigorous testing and quality control measures. All-metal gear trains, IP67 waterproofing, a compact design, and steel or synthetic rope make R-Series the top standard-duty powersports winches on the market. After all, if they’re going to wear a red WARN W, they must be better than good, they need to be great.

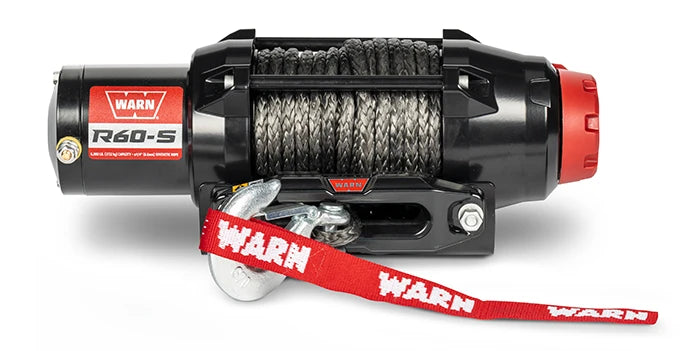

Warn Engineered, Tested, And Proven

WARN R-Series Powersports Winches offer reliable performance from a name you can trust. With capacities ranging from 2,500 lbs to 6,000 lbs, we offer something for every ATV, UTV, or even a small pickup or SUV.

R-Series has the features you want, the power you need, and a price that won't leave you stuck looking at lesser brands. Engineered in-house at our Oregon headquarters, these winches are built to Warn's specs and put through rigorous testing and quality control measures.

All-metal gear trains, IP67 waterproofing, a compact design, and steel or synthetic rope make R-Series the top standard-duty powersports winch on the market.

R-Series Winch LineUp callout

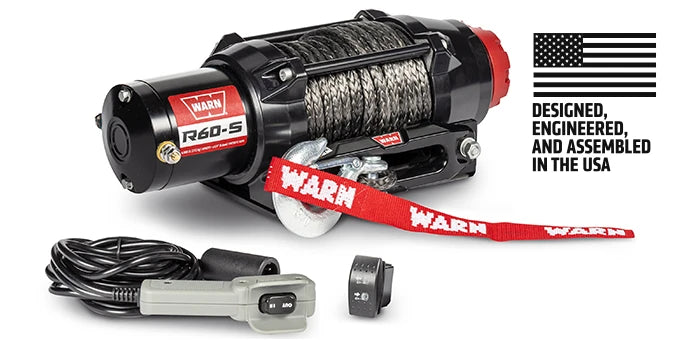

Some winches you buy, others you pay for

Other winches come with limits. The WARN R-Series comes with total confidence and is backed by over 75 years of engineering know-how. R-Series winches are all backed by Warn’s best-in-class warranty — five years mechanical, three years electrical. Plus they’re supported by a knowledgeable North American customer service team located in Clackamas, Oregon USA.

R-Series Winch LineUp callout

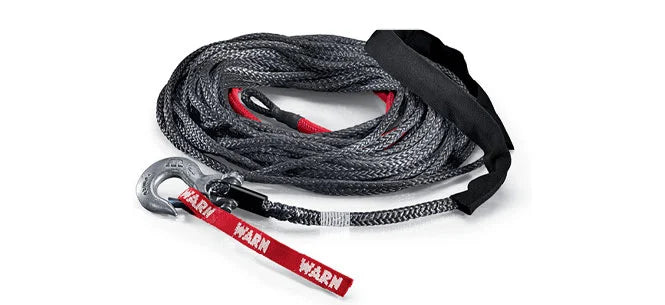

Equipped With Premium Spydura Synthetic Rope

WARN Spydura rope provides tremendous tensile strength and abrasion resistance. It’s coated with a protective urethane coating that shields against UV, dirt and debris, helping to prevent the rope from splitting and fraying. The heat resistant red sleeve protects the first layer of rope from high winch drum temperature, and also works as a end-of-rope warning sleeve.

R-Series Winch LineUp callout
Shop R-Series Winch LineUp →
Key Specs
  • Backed by WARN — engineered and tested in Oregon
  • IP67 waterproof — keeps water, dirt, and debris out
  • All-metal three-stage planetary gear train
  • Compact design — easy to install
  • Automatic load-holding brake for excellent control
  • 5-year mechanical warranty, 3-year electrical
  • Capacities: 2,500–6,000 lb
Dimensions
R-Series Winch LineUp dimensions
R-Series Winch LineUp logo
R-Series Winch LineUp feature

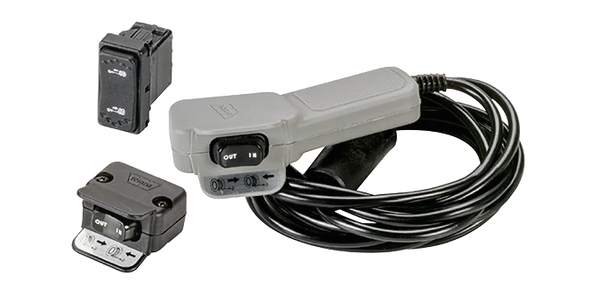

ERGONOMIC WINCH CONTROLS

Includes hand-held corded remote and dash or handlebar-mounted switch, depending on winch model

WARN ENGINEERED, TESTED, AND PROVEN

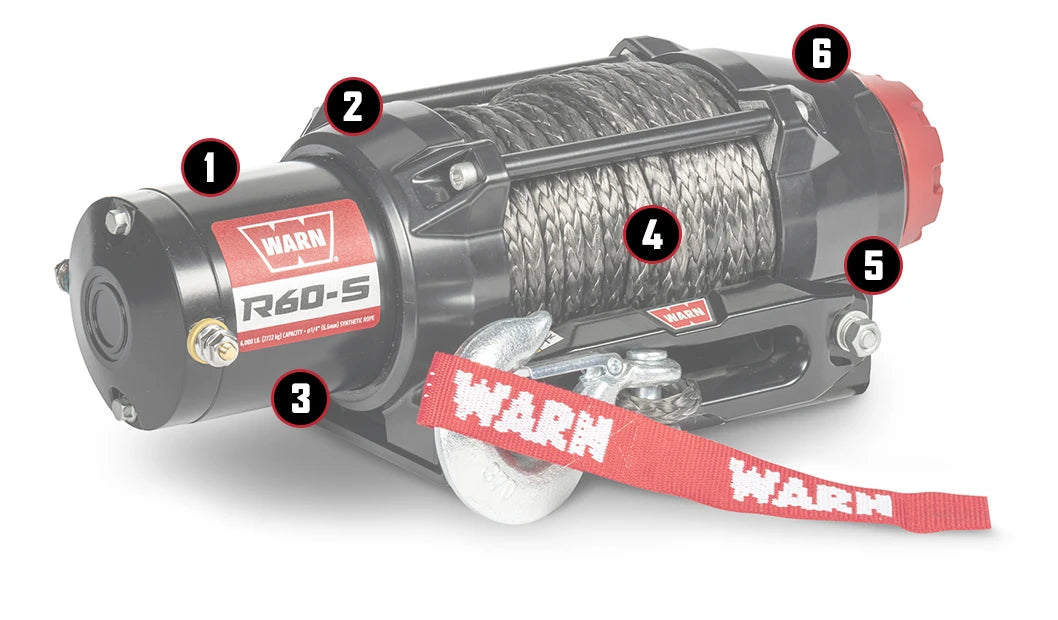

R-Series Winch LineUp features
  1. BACKED BY WARN ENGINEERED
    In Oregon, built to WARN specs, and thoroughly tested for quality control

  2. SUPERIOR WARRANTY
    5-year mechanical warranty, 3-year electrical warranty, supported by a US-based customer service team

  3. WATERPROOF
    IP67 waterproofing keeps the water, dirt, and debris out and reliability

  4. RELIABLE BRAKE
    Automatic load-holding brake for excellent control

  5. DURABLE
    Highly efficient and strong all-metal three-stage planetary gear train is built to last

  6. COMPACT DESIGN
    Easy to install

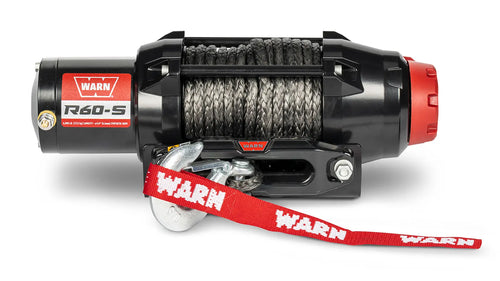

R60-S
R60-S

This powersports winch is equipped with 50-ft. of 1/4-in. synthetic rope and a hawse fairlead. It includes a corded remote and dash-mounted control switch. With a big 6,000 lb. capacity, this winch is great for big UTVs or even smaller trucks/SUVs. With the WARN R-Series, you simply get more. More waterproofing, more capacity, more metal, and a more comprehensive warranty.

Shop Now

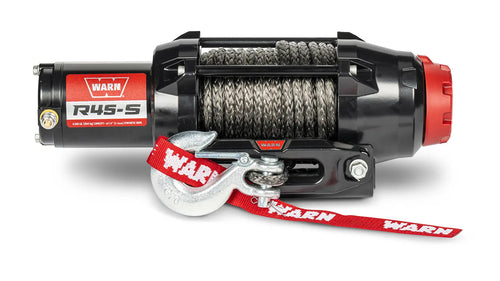

R45-S
R45-S

This powersports winch is equipped with 50-ft. of 1/4-in. synthetic rope and a hawse fairlead. It includes a corded remote and dash-mounted control switch. With a 4,500 lb. capacity, this winch is great for UTVs. With the WARN R-Series, you simply get more. More waterproofing, more capacity, more metal, and a more comprehensive warranty.

Shop Now

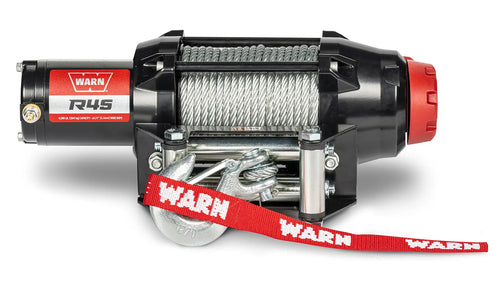

R45
R45

This powersports winch is equipped with 50-ft. of 1/4-in. steel rope, and a roller fairlead. It includes a corded remote and dash-mounted control switch. With a 4,500 lb. capacity, this winch is great for UTVs. With the WARN R-Series, you simply get more. More waterproofing, more capacity, more metal, and a more comprehensive warranty.

Shop Now

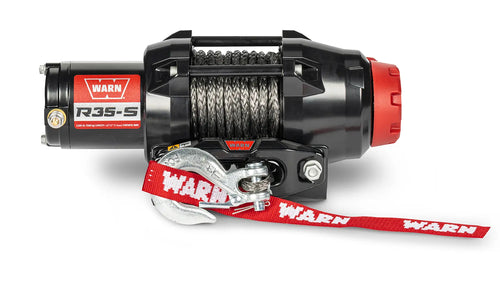

R35-S
R35-S

This powersports winch is equipped with 50-ft. of 7/32-in. synthetic rope, a hawse fairlead, and a handlebar-mounted rocker control switch. The 3,5000 lb. capacity is great for big ATVs. With the WARN R-Series, you simply get more. More waterproofing, more capacity, more metal, and a more comprehensive warranty.

Shop Now

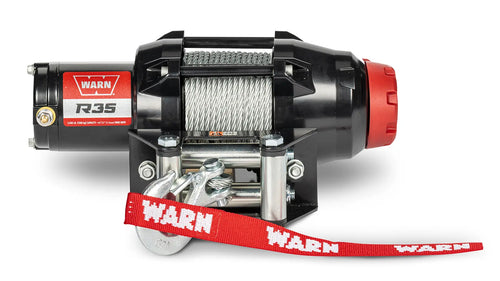

R35
R35

This powersports winch is equipped with 50-ft. of 7/32-in. steel rope, a roller fairlead, and a handlebar-mounted rocker control switch. With a 3,500 lb. capacity, this winch is ideal for bit ATVs. With the WARN R-Series, you simply get more. More waterproofing, more capacity, more metal, and a more comprehensive warranty.

Shop Now

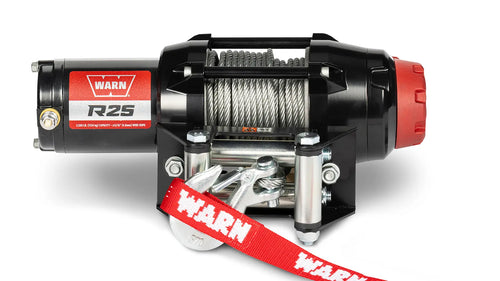

R25
R25

This powersports winch is equipped with 50-ft. of 3/16-in. steel rope, a roller fairlead, and a handlebar-mounted rocker control switch. With a 2,500 lb. capacity, this winch is great for quads or smaller ATVs. With the WARN R-Series, you simply get more. More waterproofing, more capacity, more metal, and a more comprehensive warranty.

Shop Now

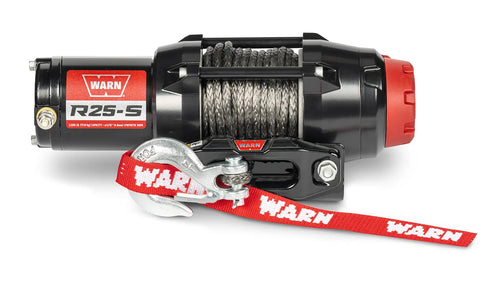

R25-S
R25-S

This powersports winch is equipped with 50-ft. of 3/16-in. synthetic rope, a hawse fairlead, and a handlebar-mounted rocker control switch. With a 2,500 lb. capacity, this winch is great for quads and smaller ATVs. With the WARN R-Series, you simply get more. More waterproofing, more capacity, more metal, and a more comprehensive warranty.

Shop Now
Premium 1 Series
2,500–4,500 lb
Capacity
IP68/IP69K
Waterproof
Ltd. Lifetime
Warranty

ALL-NEW LINEUP TAKES PERFORMANCE AND VALUE TO LEVELS NEVER BEFORE SEEN IN A POWERSPORTS WINCH. Whether you’re on the job or on the trail, WARN VRX winches work as hard as you do thanks to all-metal construction, a new clutch based on the legendary WARN 4WD hublock design, an ultra-durable all-metal gear train, and full waterproof sealing to take on the elements. VRX is available in 2,500, 3,500, and 4,500 lb. capacities and is perfect for a variety of vehicles and any job—big or small

Part Winch. Part Workhorse. 100% Warn.
For those looking for a truly premium powersports winch from the most trusted brand in the winch business, the WARN VRX is the one to get.

Designed, engineered, tested, and assembled at our Clackamas, OR facility, VRX has a superior durability rating that stands up to 1,100+ cycles—more than twice that of standard-duty winches. Its IP68/IP69K waterproof ratings are the highest available. The winch can work even if submerged and will stand up to pressure washing; VRX will keep water, dirt, and debris out while keeping reliability in.

With a stout all-metal housing and geartrain, VRX will pull hard for your ATV or UTV every time. Add to it a black finish with stainless steel fasteners for corrosion resistance, and you’ve got a truly premium powersports powerhouse.

VRX Winch LineUp callout

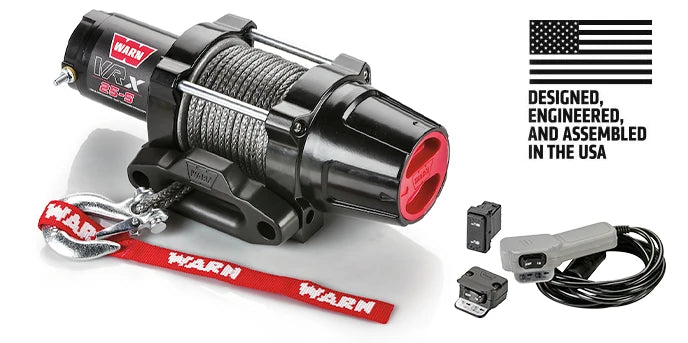

Designed And Assembled In America, Trusted Around The World

WARN VRX is brought to you by American product designers, engineers, technicians, and assemblers. It all comes together at our ISO quality-certified factory in Oregon, where more than 400 dedicated employees bring the industry's most trusted winches to life.

VRX Winch LineUp callout

Equipped With Premium Spydura Synthetic Rope

WARN Spydura rope provides tremendous tensile strength and abrasion resistance. It’s coated with a protective urethane coating that shields against UV, dirt and debris, helping to prevent the rope from splitting and fraying. The heat resistant red sleeve protects the first layer of rope from high winch drum temperature, and also works as a end-of-rope warning sleeve.

VRX Winch LineUp callout
Shop VRX Winch LineUp →
Key Specs
  • IP68 submersion + IP69K high-pressure spray rated — best waterproof ratings possible
  • 1,100+ cycle durability rating — more than twice that of standard-duty winches
  • All-metal housing and geartrain with stainless steel fasteners
  • Robust clutch design based on 75+ years of 4WD hub lock knowhow
  • Smooth, reliable all-metal three-stage planetary geartrain
  • Load-holding brake for ultimate control
  • Limited lifetime mechanical warranty, 3-year electrical
  • Capacities: 2,500–4,500 lb
Dimensions
VRX Winch LineUp dimensions
VRX Winch LineUp logo
VRX Winch LineUp feature

ERGONOMIC WINCH CONTROLS

Includes hand-held corded remote and dash or handlebar-mounted switch, depending on winch model

View VRX Accessories →

BUILT TO OUTWORK, OUTLAST, AND OUTPERFORM.

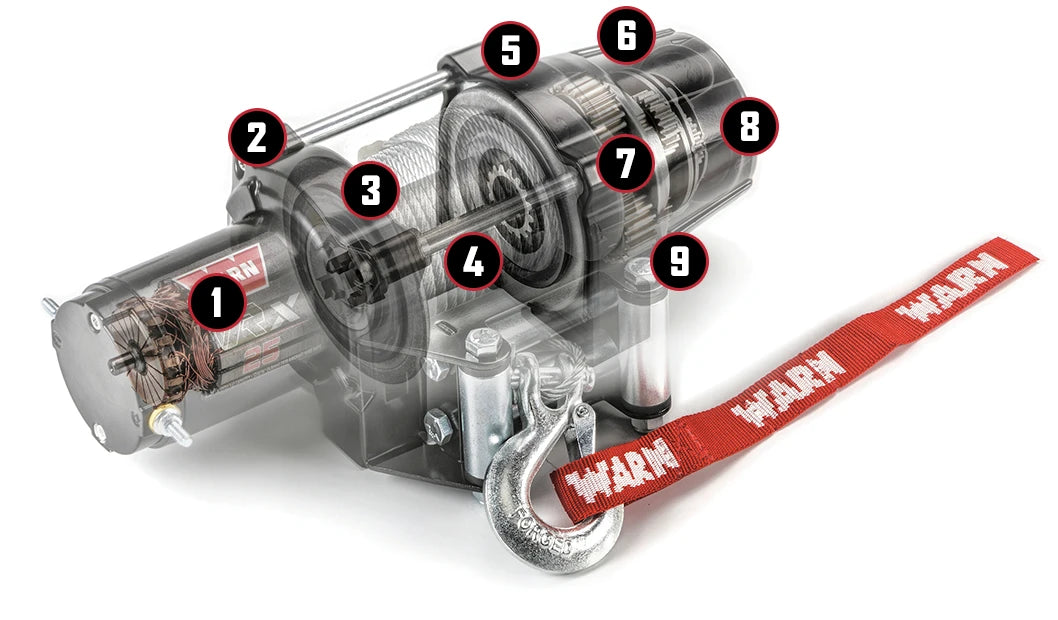

VRX Winch LineUp features
  1. POWERFUL, HIGH-EFFICIENCY MOTOR
    The best-in-class VRX motor lets you pull longer, harder, and with less battery use

  2. CORROSION RESISTANT FINISH
    Semi-gloss black powder-coated finish looks great and resists corrosion. Salt-spray tested to exceed industry standards
  3. MECHANICAL BRAKE
    Internal brake is engineered to hold the full rated load and offers excellent control while winching
  4. SYNTHETIC OR STEEL ROPE
    Increased diameter rope is rated to exceed the rated load limit
  5. WATERPROOF CONSTRUCTION
    IP68-rated waterproof construction is built to reliably keep the water and elements out
  6. ALL-METAL CONSTRUCTION
    Durable external shell protects vital components from impact and damage
  7. PLANETARY GEAR TRAIN
    The new, completely re-engineered three-stage gear train delivers reliable pulling power that is fast, quiet, and more efficient than ever
  8. CLUTCH DIAL
    Robust, easy-to-handle new design. Based on proven WARN 4WD hub lock know-how.
  9. LIMITED LIFETIME WARRANTY
    VRX has a limited lifetime warranty on mechanical parts, and a three-year warranty on electrical components. It’s the best in the industry—all backed by a global service network and a WARN name that’s trusted worldwide

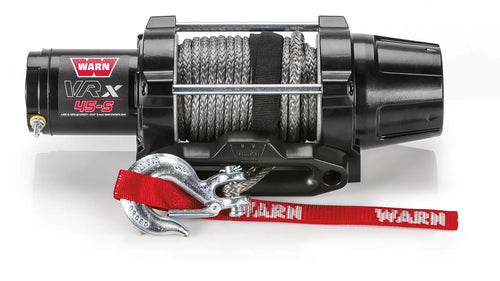

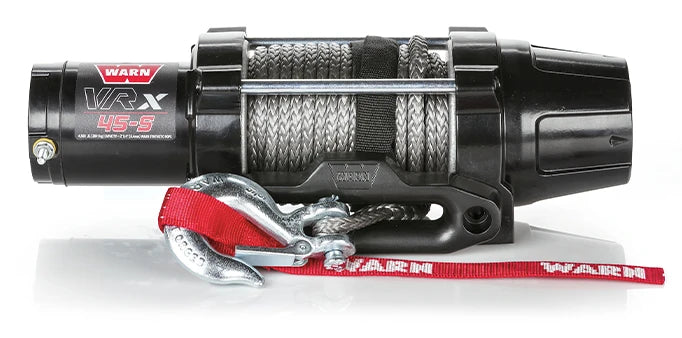

VRX 45-S
VRX 45-S

Whether you’re on the job or on the trail, the 4,500 lb. capacity WARN VRX 45-S winch works as hard as you do and is great for UTVs. Thanks to all-metal construction, a clutch based on the legendary WARN 4WD hublock design, an ultra-durable all-metal gear train, and full IP68 waterproof sealing to take on the elements, the VRX is a true workhorse. Plus, it's designed, engineered, and assembled in the USA.

Shop Now

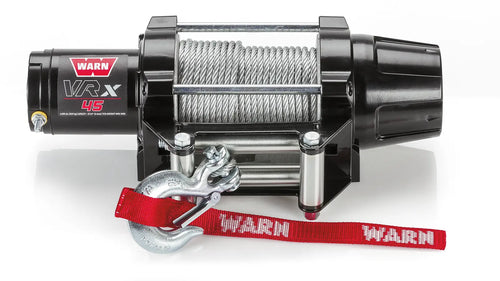

VRX 45
VRX 45

Whether you’re on the job or on the trail, the 4,500 lb. capacity WARN VRX 45 winch works as hard as you do and is great for UTVs. Thanks to all-metal construction, a clutch based on the legendary WARN 4WD hublock design, an ultra-durable all-metal gear train, and full IP68 waterproof sealing to take on the elements, the VRX is a true workhorse. Plus, it's designed, engineered, and assembled in the USA.

Shop Now

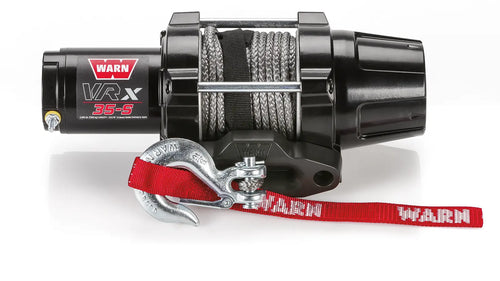

VRX 35-S
VRX 35-S

Whether you’re on the job or on the trail, the 3,500 lb. capacity WARN VRX 35-S winch works as hard as you do and is great for large ATVs or two-seat UTVs. Thanks to all-metal construction, a clutch based on the legendary WARN 4WD hublock design, an ultra-durable all-metal gear train, and full IP68 waterproof sealing to take on the elements, the VRX is a true workhorse. Plus, it's designed, engineered, and assembled in the USA.

Shop Now

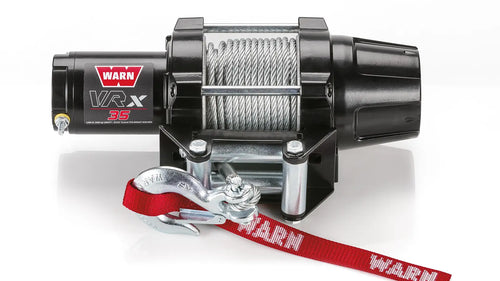

VRX 35
VRX 35

Whether you’re on the job or on the trail, the 3,500 lb. capacity WARN VRX 35 winch works as hard as you do and is great for large ATVs or two-seat UTVs. Thanks to all-metal construction, a clutch based on the legendary WARN 4WD hublock design, an ultra-durable all-metal gear train, and full IP68 waterproof sealing to take on the elements, the VRX is a true workhorse. Plus, it's designed, engineered, and assembled in the USA.

Shop Now

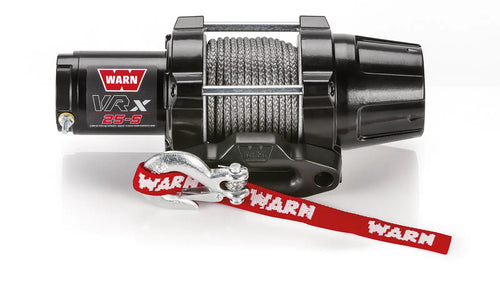

VRX 25-S
VRX 25-S

Whether you’re on the job or on the trail, the 2,500 lb. capacity WARN VRX 25-S winch works as hard as you do and is great for ATVs. Thanks to all-metal construction, a clutch based on the legendary WARN 4WD hublock design, an ultra-durable all-metal gear train, and full IP68 waterproof sealing to take on the elements, the VRX is a true workhorse. Plus, it's designed, engineered, and assembled in the USA.

Shop Now

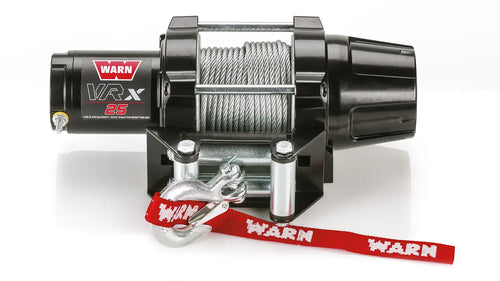

VRX 25
VRX 25

Whether you’re on the job or on the trail, the 2,500 lb. capacity WARN VRX 25 winch works as hard as you do and is great for ATVs. Thanks to all-metal construction, a clutch based on the legendary WARN 4WD hublock design, an ultra-durable all-metal gear train, and full IP68 waterproof sealing to take on the elements, the VRX is a true workhorse. Plus, it's designed, engineered, and assembled in the USA.

Shop Now

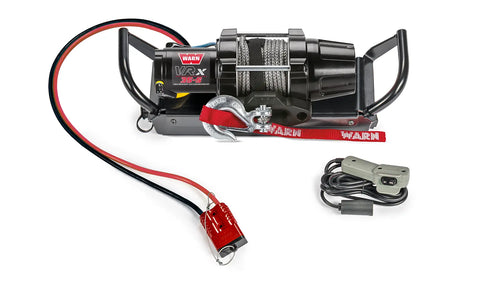

VRX 35-S All-In-One Multi-Mount Kit
VRX 35-S All-In-One Multi-Mount Kit

The VRX Multi-Mount kit works with any 2-in. class III hitch receiver. Requires 175-amp power lead connected to vehicle battery (PN 70717).

Shop Now

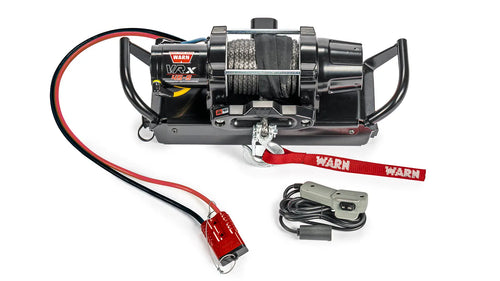

VRX 45-S All-In-One Multi-Mount Kit
VRX 45-S All-In-One Multi-Mount Kit

The VRX Multi-Mount kit works with any 2-in. class III hitch receiver. Requires 175-amp power lead connected to vehicle battery (PN 70717).

Shop Now
Ultimate 1 Series
3,500–5,500 lb
Capacity
IP68/IP69K
Waterproof
Ltd. Lifetime
Warranty

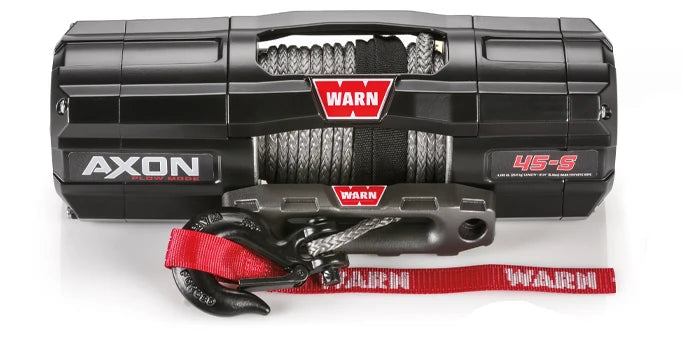

HIGH-TECH MEETS EXTREME-DURABILITY Whether it’s deep sand, thick mud, jagged rocks, or something in between, unexpected challenges can lead to stuck situations. That’s why the WARN AXON winches take a legendary reputation for proven performance to a new level. Advanced technology and standard HUB Wireless smartphone control monitors temperature and provide user feedback, all adding up to maximum levels of reliability. AXON delivers technology you can count on in any situation with brute force pulling power. All this from Warn—the company that has always put reliability above all else. If you live for pushing limits, you can’t live without AXON.

AXON is the most durable, reliable, feature-packed powersports winch anywhere. Designed, engineered, tested, and assembled in the USA, AXON takes WARN's legendary reputation for reliable performance to a new level.

You get beans pulling force plus easy-to-use controls that simplify operation and provide real-time performance monitoring. The latest AXON winches now include Plow Mode — accessible when using the HUB Wireless Receiver, Plow Mode provides optimum control for plow systems and helps to reduce wear and tear on plow parts.

AXON's unique 3-in-1 motor and contactor unit — the Motactor — saves space and provides supreme efficiency. It powers on at install time so you can save big on labor cost. With AXON you're in control of the toughest job or self-recovery situation.

Axon Winch LineUp callout

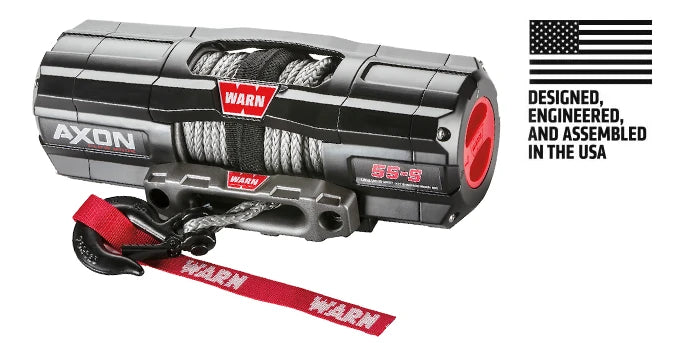

Designed And Assembled In America, Trusted Around The World

AXON is brought to you by American product designers, engineers, technicians, and assemblers. It all comes together at our ISO quality-certified factory in Oregon, where more than 400 dedicated employees bring the industry's most trusted winches to life.

Axon Winch LineUp callout

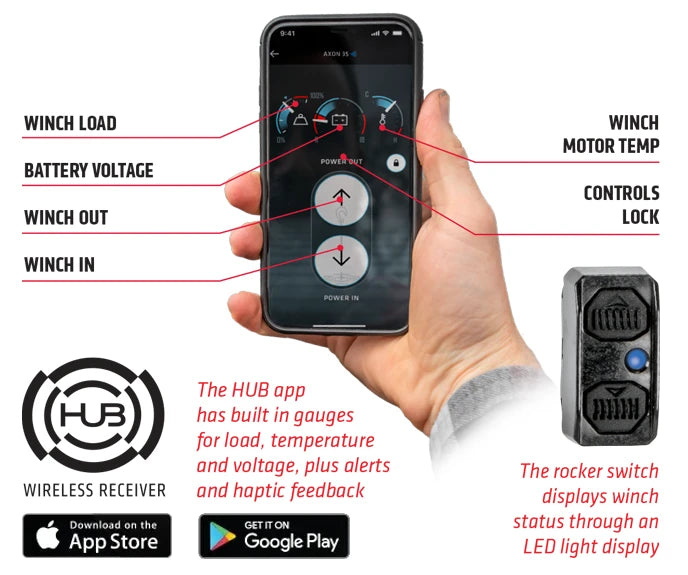

Freedom To Control The Winch Your Way

AXON 45 and 55 comes standard with a rocker bar digital control switch plus the WARN HUB wireless. Both controls operate the winch and provide winch status feedback. The HUB Wireless Receiver lets you operate the winch using your smart-phone from over 100 ft away. Easy-to-read gauges show the winch’s motor temperature, load info, and the vehicle’s battery info. And the new Plow Mode lets you seamlessly operate your plow—all from your smartphone.

Axon Winch LineUp callout

Equipped With Premium Spydura Synthetic Rope

WARN Spydura rope provides tremendous tensile strength and abrasion resistance. It’s coated with a protective urethane coating that shields against UV, dirt and debris, helping to prevent the rope from splitting and fraying. The heat resistant red sleeve protects the first layer of rope from high winch drum temperature, and also works as a end-of-rope warning sleeve.

Axon Winch LineUp callout
Shop Axon Winch LineUp →
Key Specs
  • Plow Mode via HUB Wireless Receiver and smartphone app
  • Motactor 3-in-1 motor and contactor unit — saves space, powers on at install
  • Up to 40 ft/min free-spool line speed — fastest in its class
  • IP68/IP69K waterproof — submersible and pressure-wash rated
  • Rocker digital control switch standard; HUB Wireless included on 4S and 5S models
  • Three-stage planetary gear train — fast, smooth, and quiet
  • Powerful brake holds full-rated load with great control while winching
  • Limited lifetime mechanical warranty, 3-year electrical
  • Capacities: 3,500–5,500 lb
Dimensions
Axon Winch LineUp dimensions
Axon Winch LineUp logo
Axon Winch LineUp feature

Working harder to make your job easier.

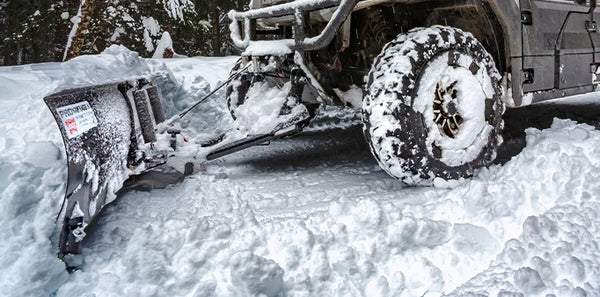

The latest AXON winches now include Plow Mode. Accessible when using the HUB Wireless Receiver, Plow Mode provides optimum control for plow system and helps to reduce wear and tear on plow parts.

Plow Mode lets you program the winch’s upper and lower travel limits to prevent damage from raising or lowering the blade too much. Plow Mode also has the one-touch Auto Move option to raise or lower the blade to those specified limits. This removes clumsy operation and the need to operate multiple controls at one.

Plow Mode requires a Hub Receiver and Smartphone to work (HUB Receiver sold separately for AXON 35 and 35-S).

View Axon Accessories →

Groundbreaking tech meets unmatched reliability

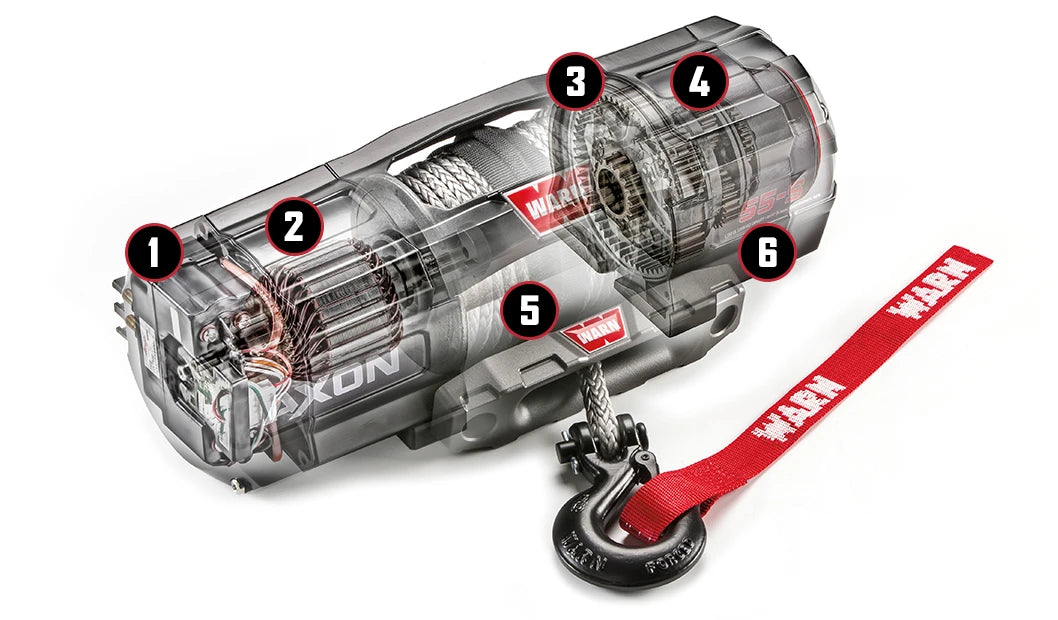

Axon Winch LineUp features
  1. COMPACT INTERNAL CONTROLS
    Motactor™ combines motor plus contactor for easy installation and great performance
  2. HIGH-PERFORMANCE, HIGH SPEED
    WARN’s next-generation motor and gear train work together to deliver a blazing fast no-load line speed of up to 40 ft/min—
    the fastest in its class
  3. SPEC IT YOUR WAY
    Your choice of steel rope and a roller fairlead or synthetic rope and a hawse fairlead, in 3,500, 4,500, 5,500 lb. capacities
  4. ULTIMATE WATERPROOFING
    IP68/IP69K waterproof ratings are the best possible, providing submersible performance and complete ingress protection
    against high-pressure, high temperature water jets and steam cleaning
  5. THREE-STAGE PLANETARY GEAR TRAIN
    It’s about as fast and smooth as a gear train gets. Plus a new ergonomic easy-throw clutch leaver
  6. SUPERIOR BRAKE DESIGN
    Powerful brake holds the full-rated load and provides great control while winching
  7. BUILT TO ENDURE
    All-metal construction with black powder coated finish and stainless-steel fasteners deliver top-tier corrosion resistance

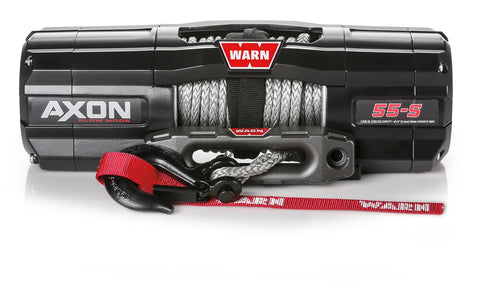

AXON 55-S
AXON 55-S

AXON 55-S winch featuring 50-ft. of 1/4-in. Spydura synthetic rope, Epic hawse fairlead, Rockerbar digital control switch, and HUB Wireless Receiver

Shop Now

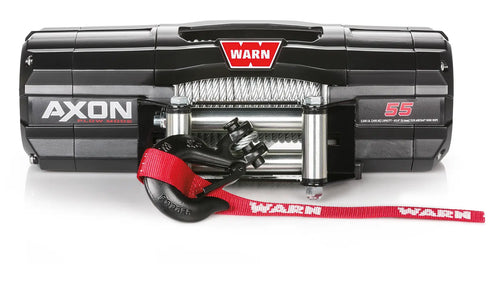

AXON 55
AXON 55

AXON 55 includes 50-ft. of durable steel rope, roller fairlead, a black hook, and a rockerbar digital control switch as well a HUB Wireless Receiver. AXON is the ultimate powersports winch featuring the all-new plow mode.

Shop Now

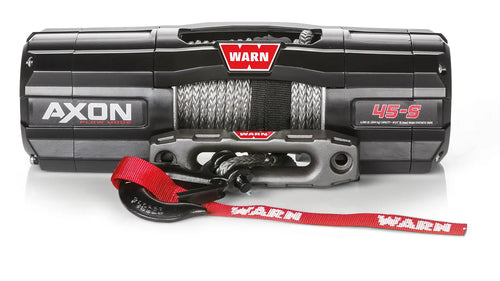

AXON 45-S
AXON 45-S

AXON 45-S includes 50-ft. of lightweight, easy-to-handle 1/4-in. Spydura synthetic rope, an Epic hawse fairlead, a black hook, and a rockerbar digital control switch as well a HUB Wireless Receiver. AXON is the ultimate powersports winch featuring the all-new plow mode.

Shop Now

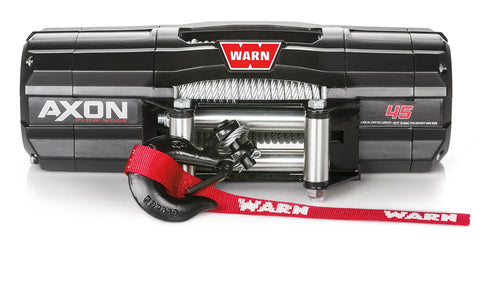

AXON 45
AXON 45

The premium AXON 45 includes 50-ft. of durable 1/4-in. steel rope, roller fairlead, and black hook, and a rockerbar digital control switch. AXON is the ultimate powersports winch featuring the all-new plow mode.

Shop Now

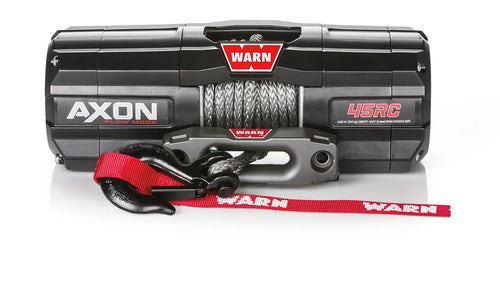

AXON 45RC
AXON 45RC

With a short drum design, the AXON 45Rc is optimized for mounting in the tight space required with some UTVs. It includes 27-ft. of 1/4-in. Spydura synthetic rope, Epic hawse fairlead, a black hook, rockerbar digital control switch, and HUB Wireless Receiver. AXON is the ultimate powersports winch featuring Plow Mode.

Shop Now

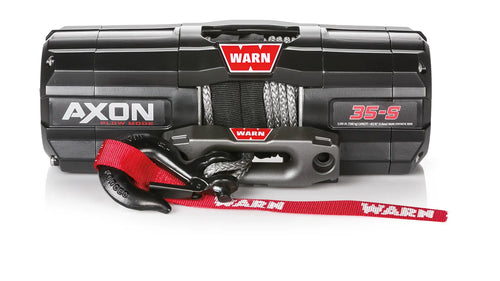

AXON 35-S
AXON 35-S

AXON 35-S includes 50-ft. of lightweight, easy-to-handle 3/16-in. Spydura synthetic rope, Epic hawse fairlead, and black hook, and a rockerbar digital control switch. AXON is the ultimate powersports winch featuring Plow Mode.

Shop Now

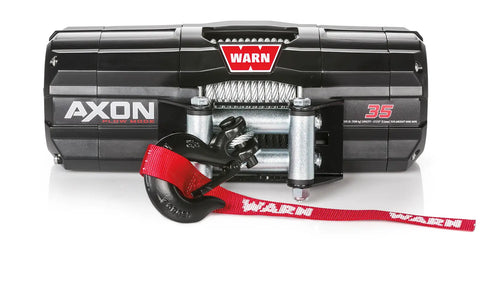

AXON 35
AXON 35

The premium AXON 35 includes 50-ft. of durable 7/32-in. steel rope, roller fairlead, and black hook, and a rocker bar digital control switch. AXON is the ultimate powersports winch featuring the all-new plow mode.

Shop Now

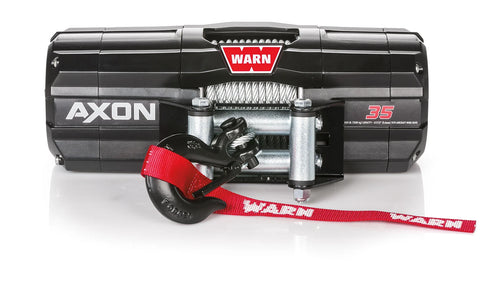

AXON 35
AXON 35

AXON 35 includes 50-ft. of durable 7/32-in. steel rope, roller fairlead, and black hook. Excellent for big ATVs or smaller UTVs. AXON is the ultimate powersports winch.

Shop Now


Three levels of WARN. One standard of excellence.

WARN winches aren't just built, they're designed and engineered for confidence and come with the best warranties in the industry. With over 75 years of American innovation, WARN offers the most complete lineup of superior, ultra-rugged winches you can buy. From the R-Series, our most accessible, to the VRX, a step up in reliability and durability, to the AXON, the most advanced of them all, every WARN winch is designed, tested, and backed by our factory-based product specialists. No matter your level or your needs, WARN gives you more choices, more capability, and the trusted reliability and durability that serious off-roader demands.

How do you choose which one is right for you?
  • ATV: 2,500 lb. to 3,500 lb. capacity (1134 kg to 1588 kg)
  • Two-Seat UTV: 3,500 lb. to 4,500 lb. capacity (1588 kg to 2041 kg)
  • Four-Seat UTV: 4,500 lb. to 5,500 lb. capacity (2041 kg to 2495 kg)
Side-by-Side Comparison
All WARN powersports winch series at a glance
Specifications AXON VRX R-SERIES
Available Capacities (lbs.) 3,500; 4,500; 5,500 2,500; 3,500; 4,500 2,500; 3,500; 4,500; 6,000
Part Numbers 110235 (AXON 35), 110230 (AXON 35-S)
110245 (AXON 45), 110240 (AXON 45-S)
110340 (AXON 45RC)
110255 (AXON 55), 110250 (AXON 55-S) 		101025 (VRX 25), 101020 (VRX 25-S)
101035 (VRX 35), 101030 (VRX 35-S)
101045 (VRX 45), 101040 (VRX 45-S) 		110025 (R25), 110020 (R25-S)
110035 (R35), 110030 (R35-S)
110045 (R45), 110040 (R45-S)
110060 (R60-S)
Rated Line Pull (single line) AXON 35 / 35-S: 3,500 lbs (1588 kg)
AXON 45 / 45-S: 4,500 lbs (2041 kg)
AXON 45RC: 4,500 lbs (2041 kg)
AXON 55 / 55-S: 5,500 lbs (2495 kg) 		VRX 25 / 25-S: 2,500 lbs (1134 kg)
VRX 35 / 35-S: 3,500 lbs (1588 kg)
VRX 45 / 45-S: 4,500 lbs (2041 kg) 		R25 / R25-S: 2,500 lbs (1134 kg)
R35 / R35-S: 3,500 lbs (1588 kg)
R45 / R45-S: 4,500 lbs (2041 kg)
R60-S: 6,000 lbs (2722 kg)
Motor Motactor with 12V DC permanent magnet 12V DC permanent magnet 12V DC permanent magnet
Sealing IP68 submersion and IP69K spray rating IP68 submersion and IP69K spray rating IP67 rated waterproof
Gear Train 3-stage planetary 3-stage planetary R25 / R25-S: differential planetary
R35 / R35-S / R45 / R45-S / R60-S: 3-stage planetary
Plow Mode Yes – Supports Plow Mode No – Does not support Plow Mode No – Does not support Plow Mode
Clutch Engagement Recessed dial based on WARN hub lock Recessed dial based on WARN hub lock End housing dial
Performance Sensors Monitors load, temperature, and battery condition None None
Contactor WARN patented Motactor External, remotely mounted External, remotely mounted
Durability 1,100+ cycles 1,100+ cycles 500+ cycles
Corrosion Testing 408 hours 240 hours 200 hours
Fasteners All stainless steel All stainless steel Zinc plated
Rope AXON 35: 50' x 7/32"(15m x 6.3mm) steel;
AXON 35-S: 50' x 3/16" (15m x 4.8mm) Spydura synthetic;
AXON 45: 50' x 1/4"(15m x 6.3mm) steel;
AXON 45-S: 50' x 1/4" (15m x 6.3mm) Spydura synthetic;
AXON 45RC: 27' x 1/4"(8m x 6.3mm) Spydura synthetic;
AXON 55: 50' x 1/4" (15m x 6.3mm) steel;
AXON 55-S: 50' x 1/4" (15m x 6.3mm) Spydura synthetic 		VRX 25: 50' x 3/16" (15m x 4.8mm) steel;
VRX 25-S: 50' x 3/16" (15m x 4.8mm) synthetic;
VRX 35: 50' x 7/32" (15m x 5.5mm) steel;
VRX 35-S: 50' x 3/16" (15m x 4.8mm) synthetic;
VRX 45: 50' x 1/4" (15m x 6.3mm) steel;
VRX 45-S: 50' x 1/4" (15m x 6.3mm) synthetic 		R25, R35: 50' x 3/16" (15m x 4.8mm) steel;
R25-S, R35-S: 50' x 3/16" (15m x 4.8mm) synthetic;
R45: 50' x 1/4" (15m x 6.3mm) steel;
R45-S, R60-S: 50' x 1/4" (15m x 6.3mm) synthetic
Hook Black powder coat Zinc plated Zinc plated
Fairlead AXON 35, AXON 45, AXON 55: Roller Fairlead;
AXON 35-S, Axon 45-S, AXON 45RC, Axon 55-S: Epic hawse fairlead 		VRX 25, VRX 35, VRX 45: Roller fairlead;
VRX 25-S, 35-S, 45-S: Cast aluminum hawse 		R25, R35, R45: roller fairlead;
R25-S, R35-S, R45-S, R60-S: cast aluminum hawse
Primary Control AXON 55, 55-S: Rockerbar digital control switch;
AXON 45, 45-S: Rockerbar digital control switch;
AXON 35, 35-S: Rockerbar digital control switch with handle-bar mount adapter;
AXON 45RC: Rockerbar digital control switch 		VRX 25, VRX 25-S: Handlebar-mounted rocker switch;
VRX 35, VRX 35-S: Handlebar-mounted rocker switch;
VRX 45, VRX 45-S: Dash-mounted rocker 		R25, R25-S: handle-bar mounted rocker switch;
R35, R35-S: handle-bar mounted rocker switch; dash-mounted rocker switch; remote socket harness
R45, R45-S, R60-S: dash-mounted rocker switch
Remote Control AXON 55, 55-S: HUB Wireless Control;
AXON 45, 45-S: HUB Wireless Control;
AXON 35, 35-S: Sold separately;
AXON 45RC: HUB Wireless Control 		VRX 25, VRX 25-S: Sold Separately;
VRX 35, VRX 35-S: Sold Separately;
VRX 45, VRX 45-S: hand-held corded remote included 		R25, R25-S, R35, R35-S: sold separately;
R45, R45-S, R60-S: hand-held corded remote included
Brake Mechanical brake Mechanical brake R25, R25-S: dynamic brake;
Others: mechanical brake
Warranty Limited lifetime mechanical, 3 year electrical Limited lifetime mechanical, 3 year electrical 5 years mechanical, 3 years electrical
Dimensions AXON 35, 35-S: length: 13.3" (338mm); height: 4.6" (117mm); width: 4.8" (122mm);
AXON 45, 45-S: length: 15.0" (381 mm); height: 4.6" (117mm); width: 4.8" (122mm);
AXON 45RC: length: 13.3" (337mm); height: 4.6" (117mm); width: 4.8" (122mm);
AXON 55, 55-S: length: 15.0" (381 mm); height: 4.6" (117mm); width: 4.8" (122mm) 		VRX 25, 25-S, 35, 35-S: length: 13.1" (332.74); height: 4.7" (119.38 mm); width: 4.7" (119.38 mm);
VRX 45, 45-S: length: 15.0" (381 mm); height: 4.7" (119.38 mm); width: 4.7" (119.38 mm) 		R25, R25-S: length: 12.4" (315mm); height: 4.5" (114mm); width: 4.0" (102mm);
R35, R35-S: length: 12.3" (312mm); height: 4.7" (120mm); width: 4.6" (117mm);
R45, R45-S: length: 14.6" (371mm); height: 4.7" (120mm); width: 4.6" (117mm);
R60-S: length: 14.1" (358mm); height: 4.7" (120mm); width: 4.6" (117mm)
Final Assembly Oregon, USA Oregon, USA China
CE Certified Yes Yes Yes
Mounting Bolt Pattern AXON 35, 35-S: 3" x 6.59" (76.2mm x 167.4mm);
AXON 45, 45-S: 3" x 6.59" (76.2mm x 167.4mm);
AXON 45RC: 3" x 4.9" (76.2mm x 123.7mm);
AXON 55, 55-S: 3" x 6.59" (76.2mm x 167.4mm) 		VRX 25, VRX 25-S: 3" x 4.9" (76.2mm x 123.7mm);
VRX 35, VRX 35-S: 3" x 4.9" (76.2mm x 123.7mm);
VRX 45, VRX 45-S: 3" x 6.59" (76.2mm x 167.4mm) 		R25, R25-S, R35, R35-S: 3" x 4.9" (76.2mm x 167.4mm)
R45, R45-S, R60-S: 3" x 6.59" (76.2mm x 167.4mm)
Tier Ultimate Premium Standard

* Warranty and specs based on current model year. See individual product pages for model-specific details.
