9.0Rc Winch

Número de pieza del fabricante: 71550
This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
$2,122.99
This Warn Industries 9.0Rc Series 12 volt electric Winch is vehicle mounted and has a pull capacity of 9,000 pound. It has a 50 feet synthetic rope.
+ -

Competitive rock crawling means tackling tough climbs, intense approach angles and tight turns. That's why rock crawling rigs need a low-profile, lightweight winch like the WARN 9.0Rc that delivers maximum power in a compact, 54-lb. unit. The 9.0Rc is a winch built for rock crawlers looking for efficiency, reliability and legendary WARN performance.

  • 4.8 hp series wound motor delivers 9,000 lbs. of pulling capacity, and fast line speed under load
  • Next-generation control pack delivers long duty cycles
  • New-style remote control
  • 50' of 3/8" (15 m of 9.5 mm) diameter synthetic rope combined with a rugged, 360-degree swivel hook and thimble
  • Ballistic nylon sliding sleeve that provides extra rope protection against abrasion and wear
  • Aluminum hawse fairlead
  • Exclusive multi-segment cam actuated brake for positive operator control during winching
  • Gloss red paint with primer undercoat gives superior corrosion resistance
  • Limited Lifetime Warranty
Especificaciones de producto
Type Electric
Mount Type Vehicle Mounted
Recommended Use Vehicle Recovery
Voltage 12 Volt
Motor Horsepower 4.8 Horsepower
Electrical Control Type Contactors
Motor Type Series Wound
Thermal Shutoff No
Drive Gear Type Planetary
Gear Reduction Ratio 216:1
Free Spooling Yes
Brake Type Mechanical Cone
Line Diameter (IN) 3/8 Inch
Line Length (FT) 50 Feet
Line Material Synthetic
Fairlead Type Hawse
Conforms To J706 Standards No
Remote Type Handheld Remote Switch
Mounting Hole Quantity 4
Operation Type Automatic
Mounting Pattern Length (IN) 6 Inch
Mounting Pattern Width (IN) 4-1/2 Inch
Includes Mounting Hardware No
Color Red

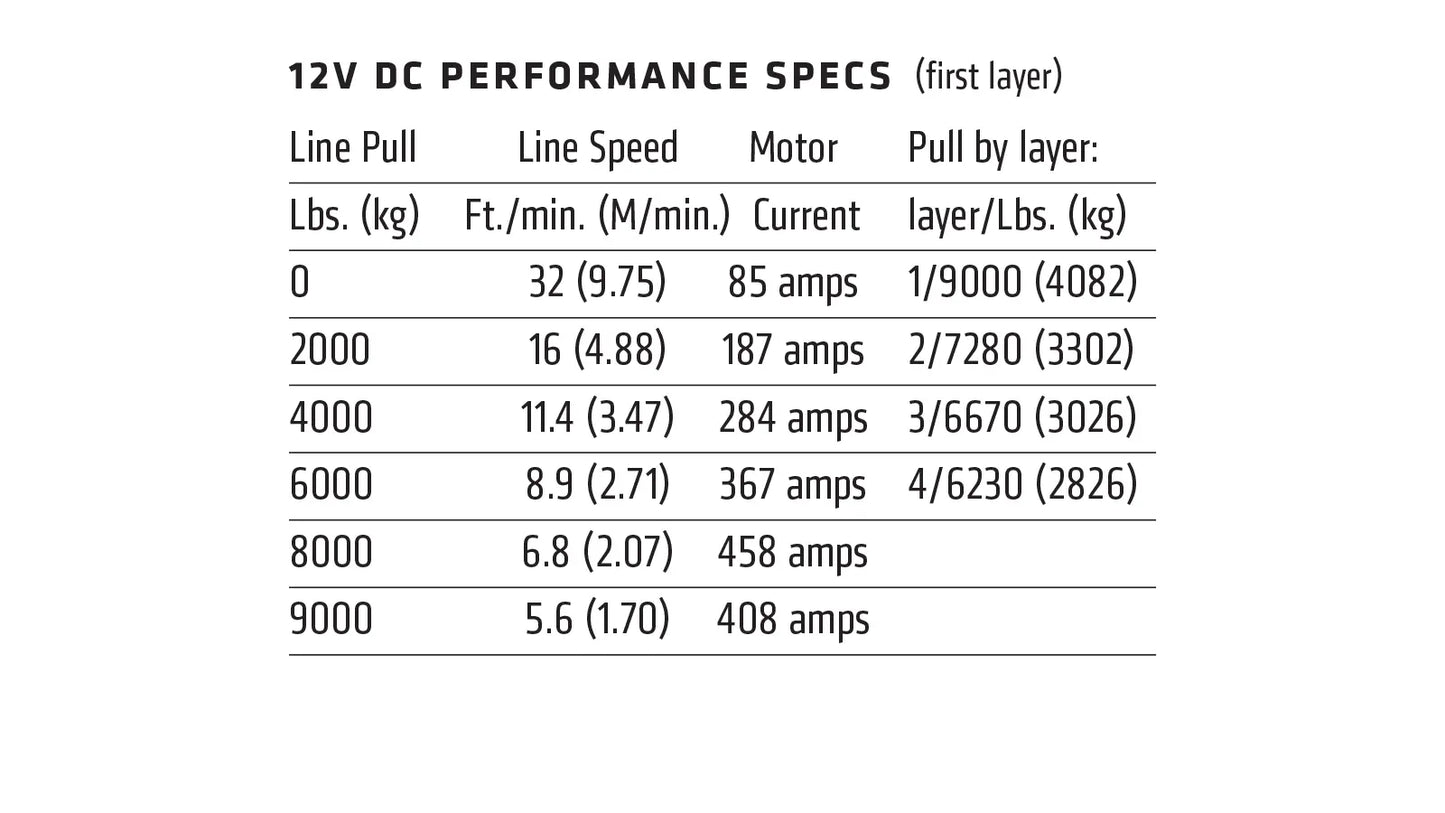

Max Amp Draw/ Line Pull 408 Amp Draw/ 9000 Pound
Max Line Pull/ Line Speed 9000 Pound/ 5.6 Feet Per Minute
Escriba su propia opinión Close Review Form
  • Sólo los usuarios registrados pueden escribir opiniones
  • Malo
  • Excelente
Description

Competitive rock crawling means tackling tough climbs, intense approach angles and tight turns. That's why rock crawling rigs need a low-profile, lightweight winch like the WARN 9.0Rc that delivers maximum power in a compact, 54-lb. unit. The 9.0Rc is a winch built for rock crawlers looking for efficiency, reliability and legendary WARN performance.

  • 4.8 hp series wound motor delivers 9,000 lbs. of pulling capacity, and fast line speed under load
  • Next-generation control pack delivers long duty cycles
  • New-style remote control
  • 50' of 3/8" (15 m of 9.5 mm) diameter synthetic rope combined with a rugged, 360-degree swivel hook and thimble
  • Ballistic nylon sliding sleeve that provides extra rope protection against abrasion and wear
  • Aluminum hawse fairlead
  • Exclusive multi-segment cam actuated brake for positive operator control during winching
  • Gloss red paint with primer undercoat gives superior corrosion resistance
  • Limited Lifetime Warranty
Especificaciones de producto
Type Electric
Mount Type Vehicle Mounted
Recommended Use Vehicle Recovery
Voltage 12 Volt
Motor Horsepower 4.8 Horsepower
Electrical Control Type Contactors
Motor Type Series Wound
Thermal Shutoff No
Drive Gear Type Planetary
Gear Reduction Ratio 216:1
Free Spooling Yes
Brake Type Mechanical Cone
Line Diameter (IN) 3/8 Inch
Line Length (FT) 50 Feet
Line Material Synthetic
Fairlead Type Hawse
Conforms To J706 Standards No
Remote Type Handheld Remote Switch
Mounting Hole Quantity 4
Operation Type Automatic
Mounting Pattern Length (IN) 6 Inch
Mounting Pattern Width (IN) 4-1/2 Inch
Includes Mounting Hardware No
Color Red
Max Amp Draw/ Line Pull 408 Amp Draw/ 9000 Pound
Max Line Pull/ Line Speed 9000 Pound/ 5.6 Feet Per Minute
