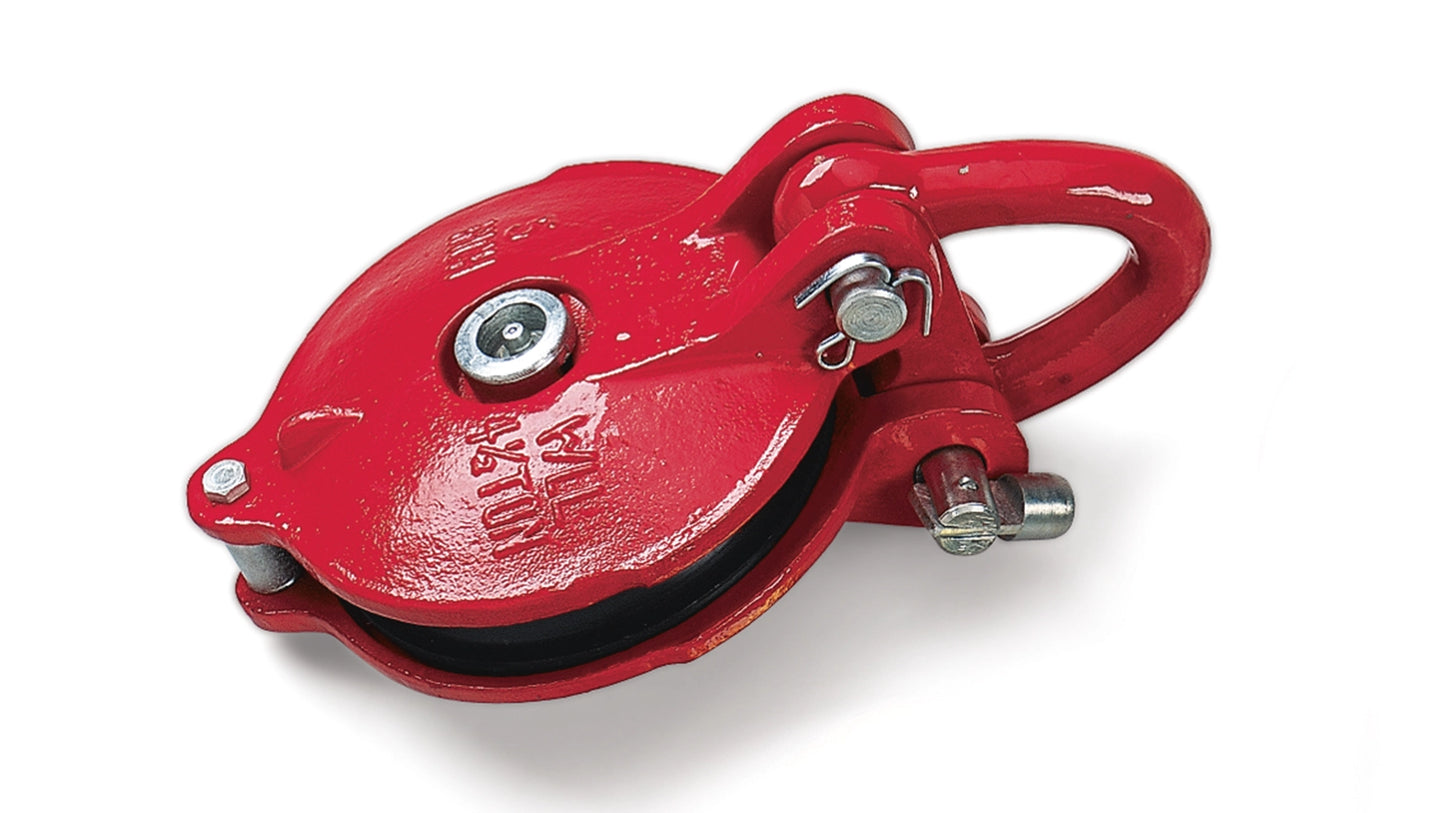

• WARN Heavy-Duty Snatch Block for Winch Capacities up to 12,000 lbs.

Heavy-Duty Snatch Block for Winch Capacities up to 12,000 lbs.

PART NUMBER: 15640

This heavy-duty snatch block is for use with wire rope only, up to 1/2-in. With an easy-to-see red finish, this rugged accessory will help you get the most out of your winch.

$202.39
$202.39
Fast delivery truck
Want Free & Faster Shipping?

With Ship-To-Store, we offer thousands of products shipped to your local store fast and free with next-day delivery*. Learn More

California Prop 65:
California Prop 65 Warning
This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov

Description

When used properly, this multi-purpose snatch block can double the pulling power of a winch and change the pulling direction without risk of damaging the rope. Snatch blocks also reduce amp draw and winch overheating. Applicable working load limit (WLL) is dependent on application: 4:1 Safety Factor WLL: 9,000 lbs. - per ASME B30.26 Standard (General rigging & lifting); 2:1 Safety Factor WLL: 18,000 lbs. - per BS 7901 Standard (Vehicle recovery, not overhead). Minimum breaking strength: 36,000 lbs. Max recommended winch capacity: 9,000 lbs.

  • Red finish increases visibility, all-metal construction is exceptionally durable
  • Reduces heat build up and amp draw
  • Can be used to increase a winch's pulling ability by nearly 2x
  • Change the pull direction without damaging rope
  • Verify the correct WLL based on your application: 9,000 lbs. WLL for general rigging and lifting; 18,000 lbs. WLL for vehicle recovery and non-overhead pulling. Max recommended winch capacity: 9,000 lbs.

vehicle Compatibility List

Specifications

Capacity9,000 LB, 18,000 LB
CompatibilityWinches With 12000 Pounds Capacity
GreaseableYes
Includes Grease PortYes
Maximum Line Diameter3/8
Pulley MaterialSteel
Side Plate ColorRed
Side Plate FinishPainted
