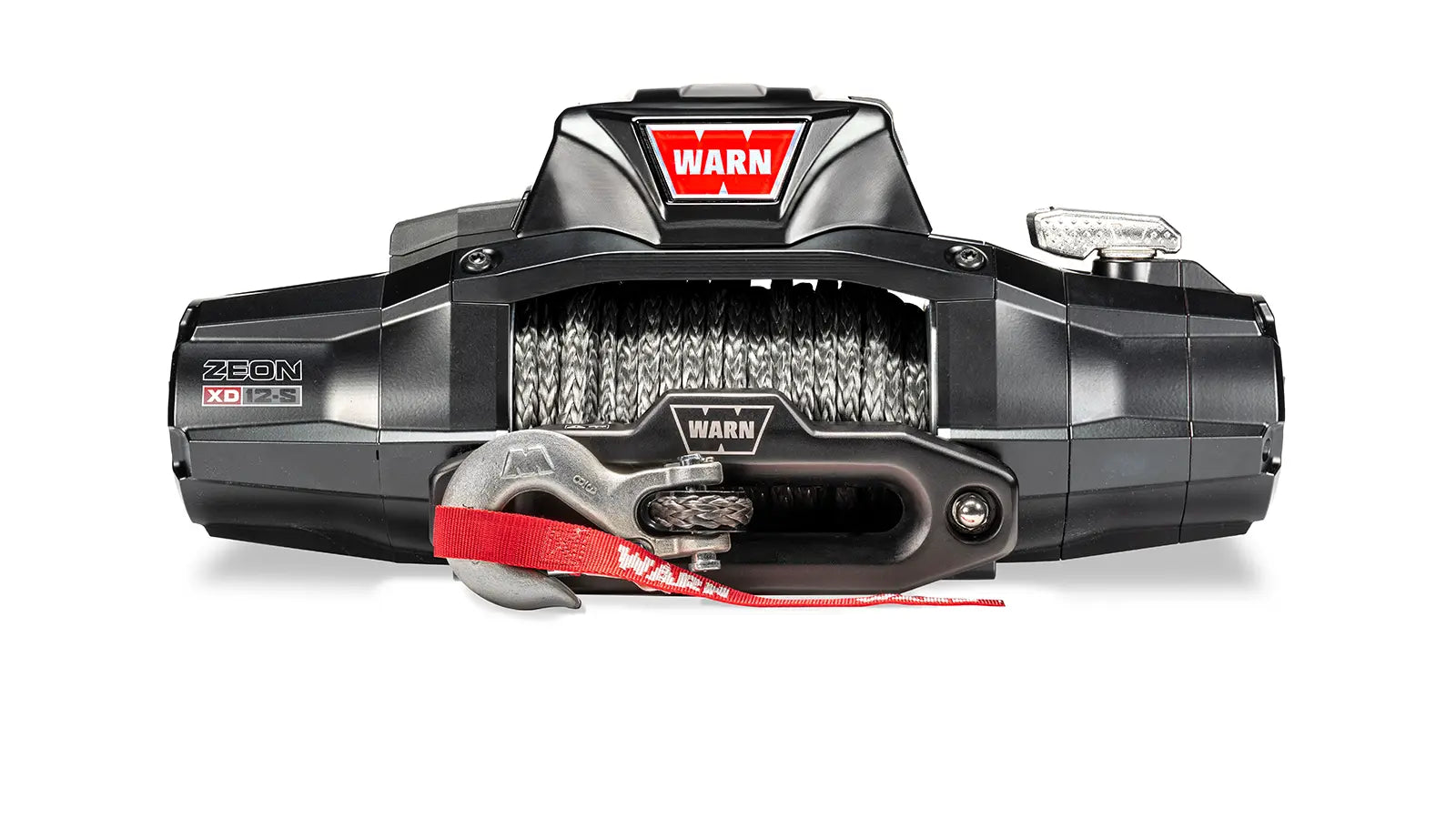

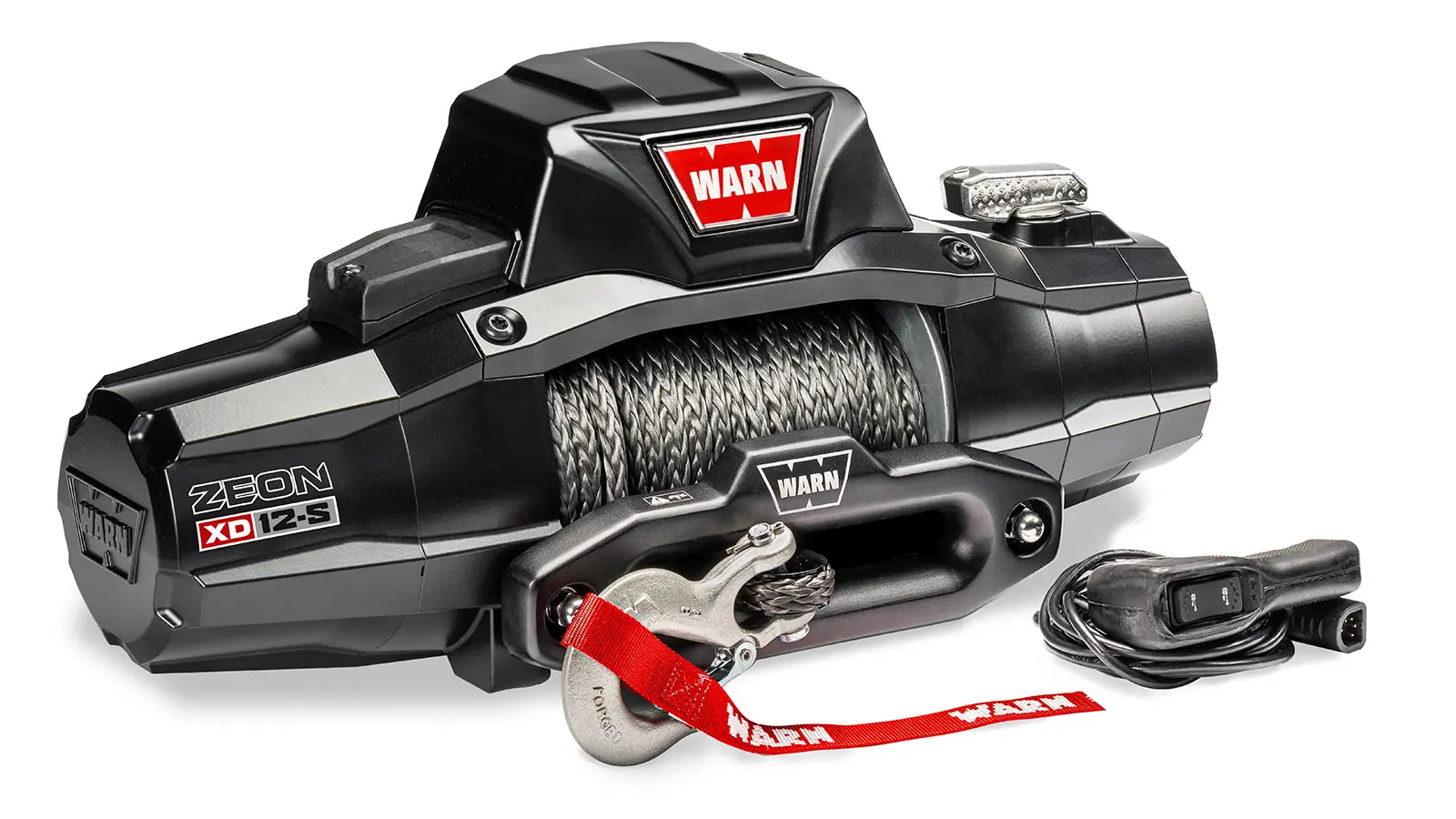

ZEON XD 12-S

PART NUMBER: 110012

WARN ZEON XD 12-S premium recovery winch. Performance and durability; industry's best warranty; fastest line-speed; and most robust waterproof sealing. ZEON XD is the ultra-reliable recovery tool you can count on.

Regular price $1,989.40
Sale price $1,989.40 Regular price
Winch Comparison ➜
Fast delivery truck
Want Free & Faster Shipping?

With Ship-To-Store, we offer thousands of products shipped to your local store fast and free with next-day delivery*. Learn More

Designed, engineered, and assembled in the USA
Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle. Please visit our Mounting & Protection category for available options.
California Prop 65:
California Prop 65 Warning
This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov

Description

ZEON XD stands ready for the moments when "good enough" simply won't suffice. Boasting the fastest line-speed in its class, robust waterproof sealing, and multiple control options, ZEON XD is the ultra-reliable recovery tool you can count on in critical situations. Every ZEON XD is meticulously engineered, rigorously tested, and expertly assembled in Clackamas, Oregon, USA.

  • High-performance motor and geartrain deliver blazing fast no-load line speeds.
  • IP68 water submersion and IP69K high pressure spray rating, achieved through the use of automotive-grade O-ring sealing.
  • OE-grade paint and fasteners increase resistance to fading and corrosion, ensuring ZEON XD stays pristine for years to come.
  • Full metal armor safeguards components from impact, damage, and trail debris.
  • Albright contactor control and bus bars provide ultimate electrical reliability .
  • Strong, lightweight and easy to handle WARN Spydura PRO synthetic rope with heat resistant inner wraps and an abrasion sleeve.
  • Industry-leading warranty: Limited lifetime mechanical, seven year electricalall backed by a global service network.

vehicle Compatibility List

Specifications

Brake ActivationAutomatic
Brake TypeCone
Cable Diameter3/8 IN
Cable Length80 FT
Cable MaterialSynthetic Rope
ColorBlack
D Shackle IncludedNo
Fairlead TypeHawse
Free SpoolingYes
Gear Ratio176:1
Gearing3-Stage Planetary
Hand SaverYes

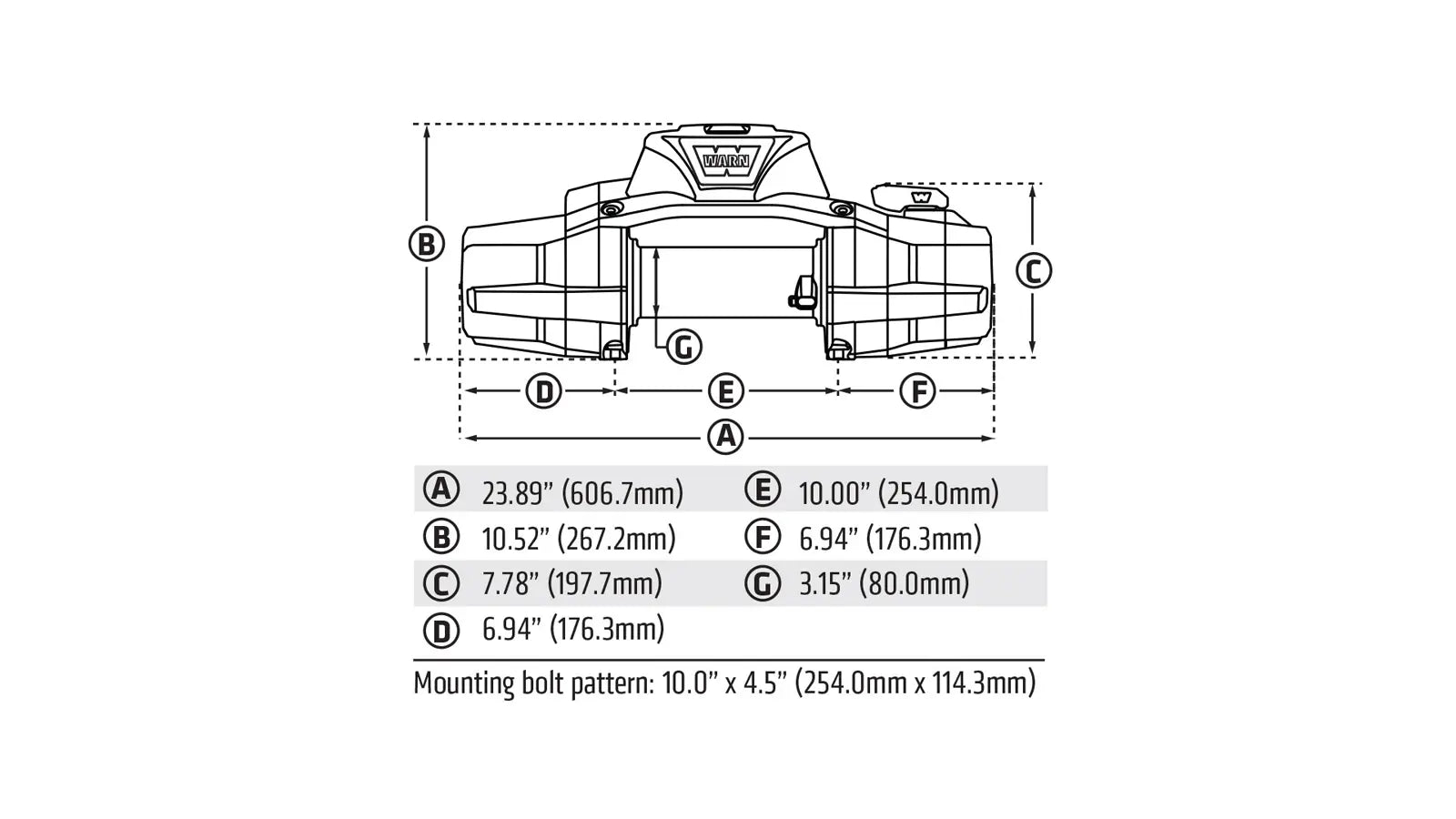

Length23.9
Maximum Height10.5 IN
Maximum Width7.1 IN
Motor TypeSeries Wound
Motor Voltage12V
Mount TypeFixed Mount
Mounting Bolt Pattern Length4.5 IN
Mounting Bolt Pattern Width10 IN
Mounting Hole Quantity4
Power OutYes
Rated Line Pull12000 LB
Remote IncludedYes

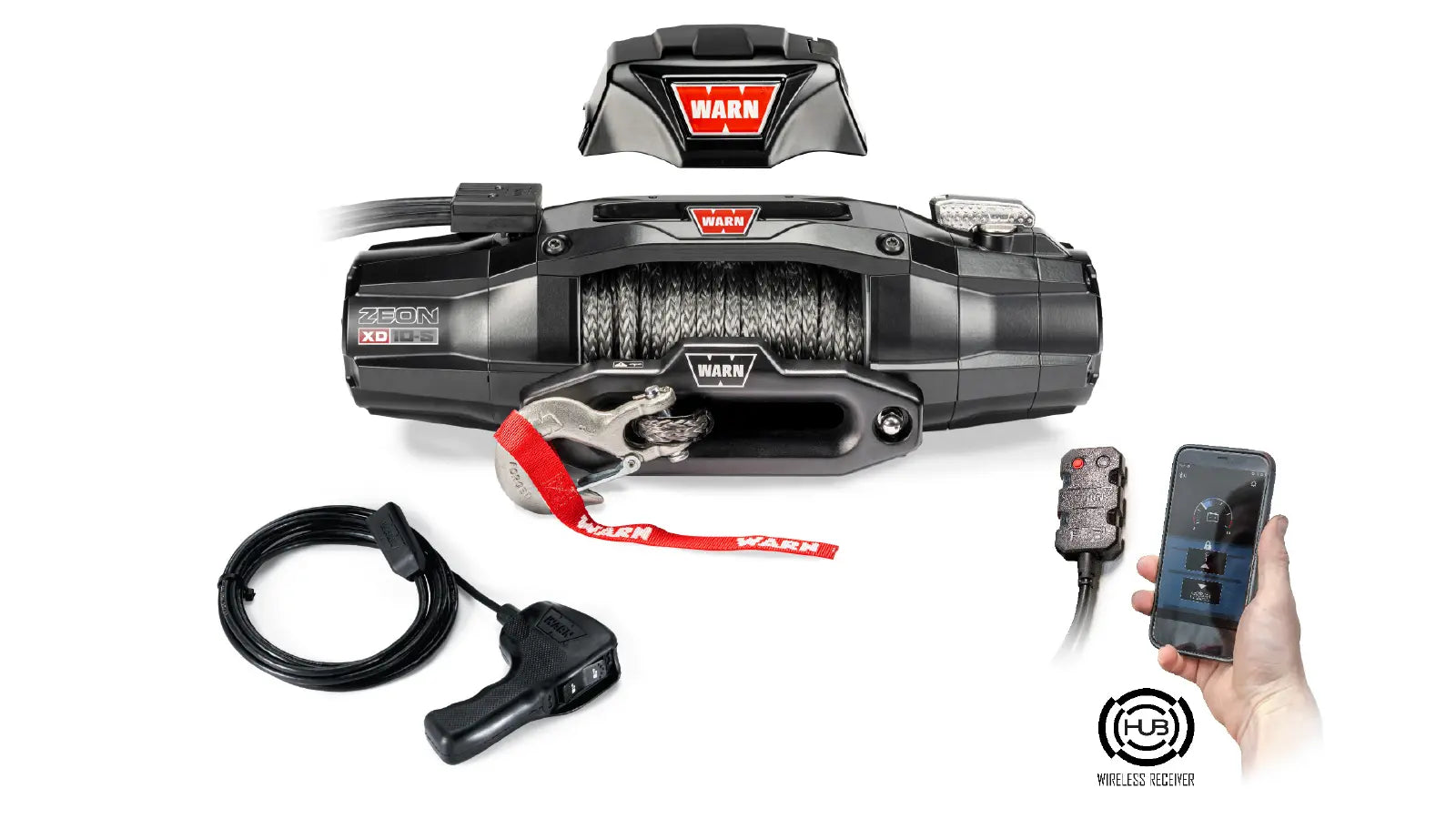

Remote TypeWire, Wireless
Requires MountYes
Solenoid TypeContactor
Tree SaverNo
TypeElectric
Voltage12V
Winch RatingElectric

Product Literature

ZEON XD Winch LineUp

REDESIGNED FROM THE GROUND UP TO BE THE CORE OF THE WARN LINEUP.

Built to endure over the long haul, the new ZEON XD is the core of the WARN® winch lineup and have been completely redesigned with American engineering and assembly. These are the go-to winches for off-roaders who value reliability, durability, and performance, no matter where adventure takes you.

LEARN MORE →
ZEON XD Winch LineUp
10K–14K lbs
Capacity Range
IP68 / IP69K
Waterproof Rating

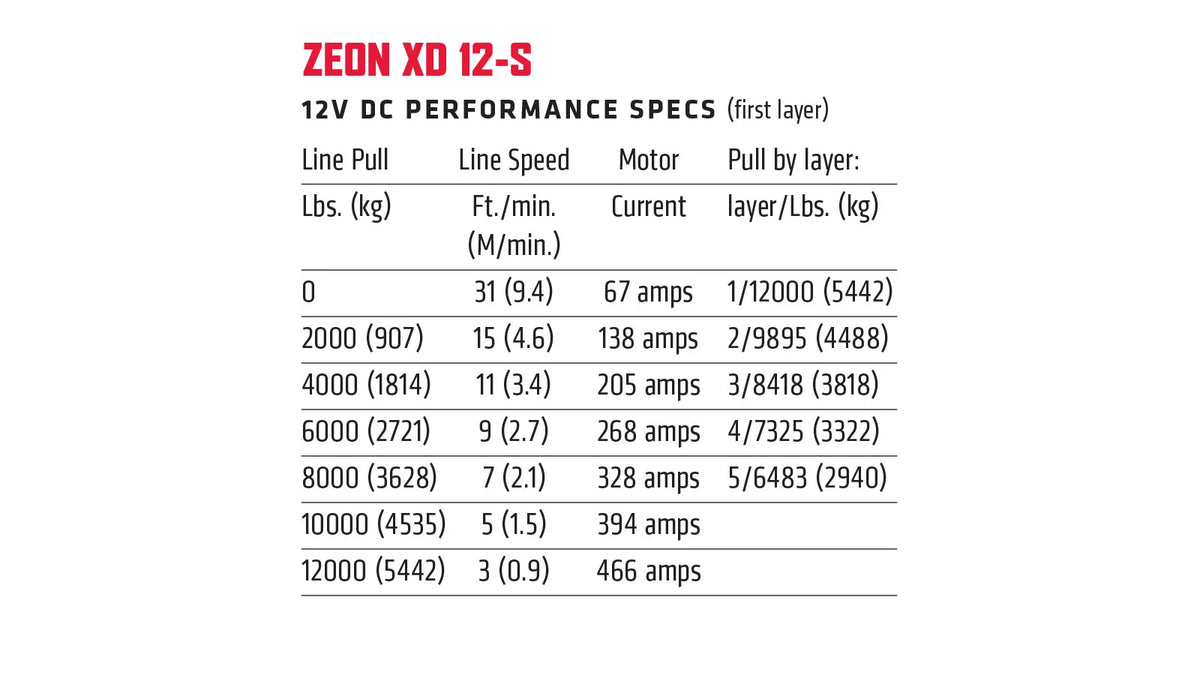

31 ft/min
No-Load Line Speed
Oregon, USA
Assembly
