AXON 35

PART NUMBER: 101135

AXON 35 includes 50-ft. of durable 7/32-in. steel rope, roller fairlead, and black hook. Excellent for big ATVs or smaller UTVs. AXON is the ultimate powersports winch.

Regular price $674.99
Sale price $674.99 Regular price
Winch Comparison ➜
Fast delivery truck
Want Free & Faster Shipping?

With Ship-To-Store, we offer thousands of products shipped to your local store fast and free with next-day delivery*. Learn More

Designed, engineered, and assembled in the USA
Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle. Please visit our Mounting & Protection category for available options.
California Prop 65:
California Prop 65 Warning
This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov

Description

Add some brainpower to your horsepower. With advanced Motactor (motor/contactor) digital technology, IP68 rated, and a compact, easy-to-install design, the WARN AXON is the best powersports winch on the market. With pulling capacities from 3,500 to 5,500 lbs., these state-of-the-art winches will help you go prepared for any situation.

  • AXON 35 includes 50-ft. of durable 7/32-in. steel rope, roller fairlead, and black hook
  • Stout 3,500 lb. capacity for riders who push the limits
  • Revolutionary Motactor™ combines motor and contactor for easy installation, best performance
  • Digital control offers never-before seen levels of reliability and user feedback, including load and temperature info
  • Durable all-metal construction and one-piece tie plate (vs. tie bars) for increased structural rigidity
  • IP68 waterproofing keeps water and the elements out
  • Rockerbar digital control switch with handlebar mount adaptor
  • Satin black powder-coated finish and stainless steel fasteners for corrosion resistance
  • New clutch design based on legendary WARN 4WD hub lock know-how
  • Load-holding brake for great control
  • Smooth and reliable all-metal three-stage planetary gear train
  • Limited lifetime warranty (mechanical), 3 year warranty (electrical)
  • Designed, engineered, and assembled in the USA

vehicle Compatibility List

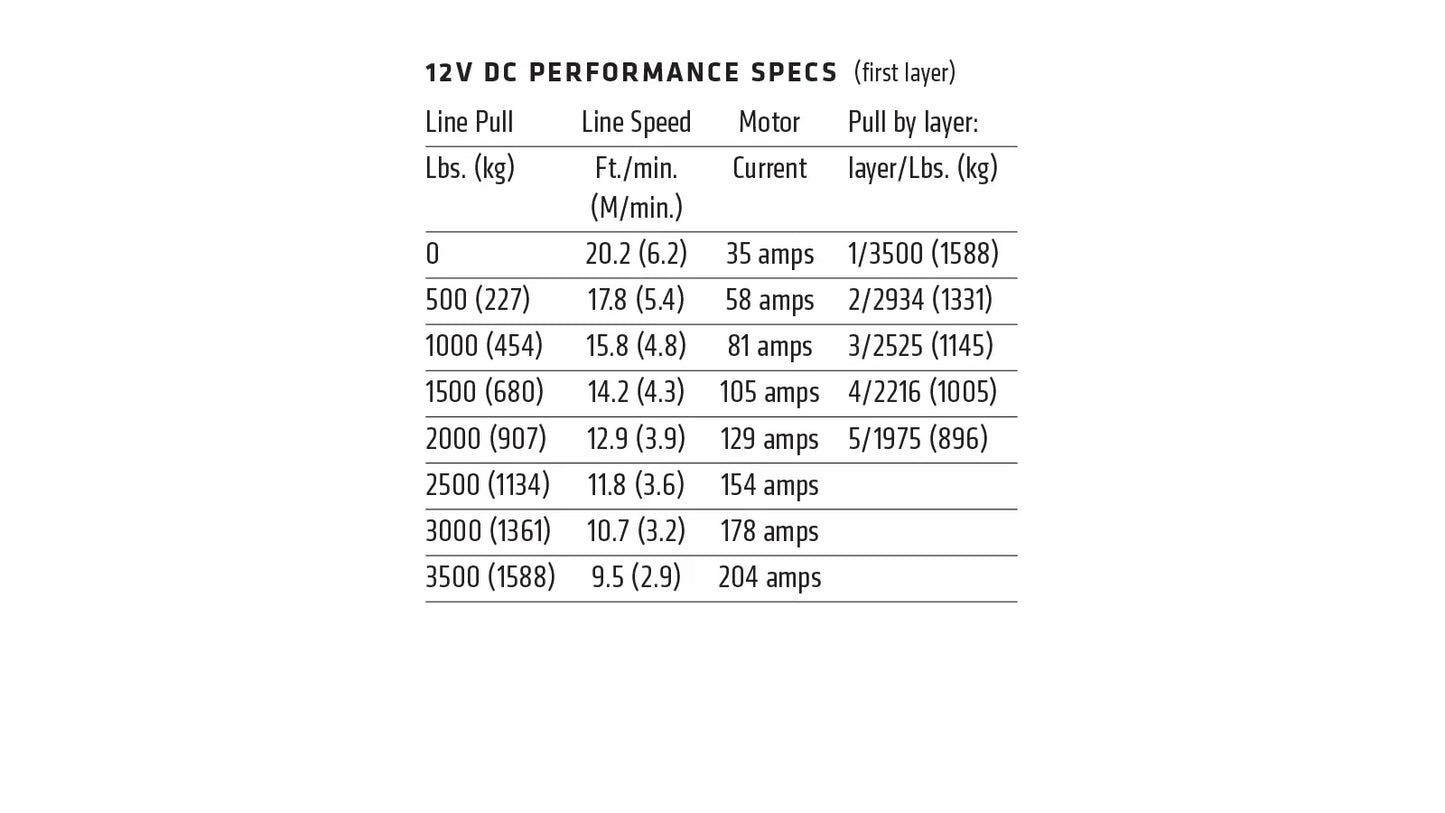

Specifications

Brake ActivationAutomatic
Brake TypeDrum
Cable Diameter7/32 IN
Cable Length50 FT
Cable MaterialMetal Rope
D Shackle IncludedNo
Fairlead TypeRoller
Free SpoolingYes
Gear Ratio168:1
Gearing3-Stage Planetary
Length13.3 IN
Maximum Height4.8 IN
Maximum Width4.6 IN
Motor TypePermanent Magnet
Motor Voltage12V
Mount TypeFixed Mount
Mounting Bolt Pattern Length4.87 IN
Mounting Bolt Pattern Width3 IN
Mounting Hole Quantity4
Power OutYes
Rated Line Pull3500 LB
Requires MountYes
TypeElectric
Voltage12V

Product Literature

Axon Winch LineUp

HIGH-TECH MEETS EXTREME-DURABILITY

Whether it’s deep sand, thick mud, jagged rocks, or something in between, unexpected challenges can lead to stuck situations. That’s why the WARN AXON winches take a legendary reputation for proven performance to a new level. Advanced technology and standard HUB Wireless smartphone control monitors temperature and provide user feedback, all adding up to maximum levels of reliability. AXON delivers technology you can count on in any situation with brute force pulling power. All this from Warn—the company that has always put reliability above all else. If you live for pushing limits, you can’t live without AXON.

LEARN MORE →
Axon Winch LineUp
3,500–5,500 lb
Capacity
IP68/IP69K
Waterproof
Ltd. Lifetime
Warranty
