ZEON 10 Winch

Manufacturer part number: 88990
This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
$1,220.99
This Warn Industries ZEON (R) 10 12 volt electric Winch is vehicle mounted and has a pull capacity of 10,000 pound. It has a 80 feet wire rope. Note: This Winch will require winch mount for proper installation.

Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle. Please visit our Mounting & Protection category for available options.
+ -

Choose your way to conquer the terrain. The ZEON 10 is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck busting sealing keeps out everything but the good times. Add a hyper durable cast aluminum housing, satin black finish, and 10,000 Pounds. Single line pulling capacity and, well, you've got a workhorse unit you can trust for years to come.



  • Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks
  • New Design Planetary Gear Train And Series Wound Motor Deliver Fast, Quiet, And Reliable Pulling Power
  • Satin Black Powder Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion
  • Improved Winch Sealing To Keep The Elements Out
  • Large Diameter Winch Drum Reduces Rope Wear, Is Lightweight, And Has An Integrated Rope Anchor For Easy Rope Installation
  • Includes 80 Foot Of 3/8 Inch Galvanized Steel Wire Rope
  • 10,000 Pounds Single Line Pulling Capacity
  • Limited Lifetime Warranty
Products specifications
Type Electric
Mount Type Vehicle Mounted
Recommended Use Vehicle Recovery
Voltage 12 Volt
Electrical Control Type Contactors
Motor Type Series Wound
Thermal Shutoff No
Drive Gear Type Planetary
Gear Reduction Ratio 216:1
Free Spooling Yes
Brake Type Mechanical Cone
Line Diameter (IN) 3/8 Inch
Line Length (FT) 80 Feet
Line Material Steel
Fairlead Type Roller
Conforms To J706 Standards No
Remote Type Handheld Remote Switch
Mounting Hole Quantity 4
Operation Type Automatic
Mounting Pattern Length (IN) 10 Inch
Mounting Pattern Width (IN) 4-1/2 Inch
Includes Mounting Hardware No
Color Black

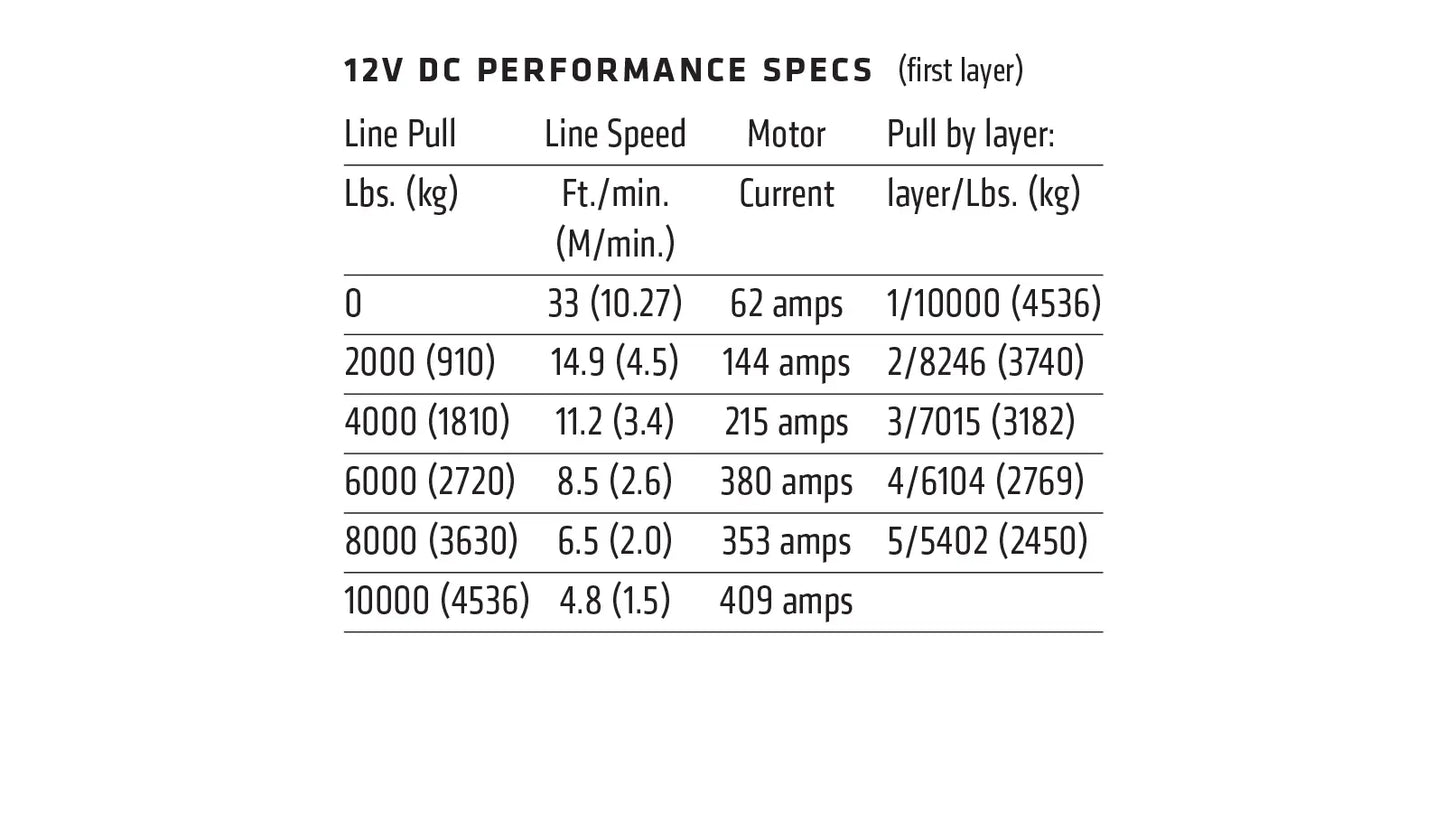

Max Line Pull/ Line Speed 10000 Pound/ 4.8 Feet Per Second
Max Amp Draw/ Line Pull 409 Amp Draw/ 10000 Pound
Write your own review Close Review Form
  • Only registered users can write reviews
  • Bad
  • Excellent
Description

Choose your way to conquer the terrain. The ZEON 10 is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck busting sealing keeps out everything but the good times. Add a hyper durable cast aluminum housing, satin black finish, and 10,000 Pounds. Single line pulling capacity and, well, you've got a workhorse unit you can trust for years to come.



  • Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks
  • New Design Planetary Gear Train And Series Wound Motor Deliver Fast, Quiet, And Reliable Pulling Power
  • Satin Black Powder Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion
  • Improved Winch Sealing To Keep The Elements Out
  • Large Diameter Winch Drum Reduces Rope Wear, Is Lightweight, And Has An Integrated Rope Anchor For Easy Rope Installation
  • Includes 80 Foot Of 3/8 Inch Galvanized Steel Wire Rope
  • 10,000 Pounds Single Line Pulling Capacity
  • Limited Lifetime Warranty
Products specifications
Type Electric
Mount Type Vehicle Mounted
Recommended Use Vehicle Recovery
Voltage 12 Volt
Electrical Control Type Contactors
Motor Type Series Wound
Thermal Shutoff No
Drive Gear Type Planetary
Gear Reduction Ratio 216:1
Free Spooling Yes
Brake Type Mechanical Cone
Line Diameter (IN) 3/8 Inch
Line Length (FT) 80 Feet
Line Material Steel
Fairlead Type Roller
Conforms To J706 Standards No
Remote Type Handheld Remote Switch
Mounting Hole Quantity 4
Operation Type Automatic
Mounting Pattern Length (IN) 10 Inch
Mounting Pattern Width (IN) 4-1/2 Inch
Includes Mounting Hardware No
Color Black
Max Line Pull/ Line Speed 10000 Pound/ 4.8 Feet Per Second
Max Amp Draw/ Line Pull 409 Amp Draw/ 10000 Pound
