ZEON 12 Winch

Número de pieza del fabricante: 89120
This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
$1,286.99
This Warn Industries ZEON (R) 12 12 volt electric Winch is vehicle mounted and has a pull capacity of 12,000 pound. It has a 80 feet wire rope. Note: This Winch will require winch mount for proper installation.
+ -

The WARN ZEON 12 is the face of winching. Bolt one on, and you'll be ready for anything.

A top choice for those with heavily-loaded off-road vehicles, the ZEON 12 features innovative design, increased performance and durability, steel rope, and a hefty 12,000 lb. single-line pulling capacity.

The ZEON 12 is a pulling machine you can rely on to rescue you or your buddies, from nearly anything.

  • 12,000 lb. (5443 kg) single-line pulling capacity.
  • Includes 80' of durable 3/8" galvanized steel wire rope.
  • Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately*).
  • Gear train and motor deliver reliable pulling power that is fast, and quieter than ever.
  • Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
  • Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
  • Limited Lifetime Warranty
Especificaciones de producto
Type Electric
Mount Type Vehicle Mounted
Recommended Use Vehicle Recovery
Voltage 12 Volt
Electrical Control Type Contactors
Motor Type Series Wound
Thermal Shutoff No
Drive Gear Type Planetary
Gear Reduction Ratio 216:1
Free Spooling Yes
Brake Type Mechanical Cone
Line Diameter (IN) 3/8 Inch
Line Length (FT) 80 Feet
Line Material Steel
Fairlead Type Roller
Conforms To J706 Standards No
Remote Type Handheld Remote Switch
Mounting Hole Quantity 4
Operation Type Automatic
Mounting Pattern Length (IN) 10 Inch
Mounting Pattern Width (IN) 4-1/2 Inch
Includes Mounting Hardware No
Color Black

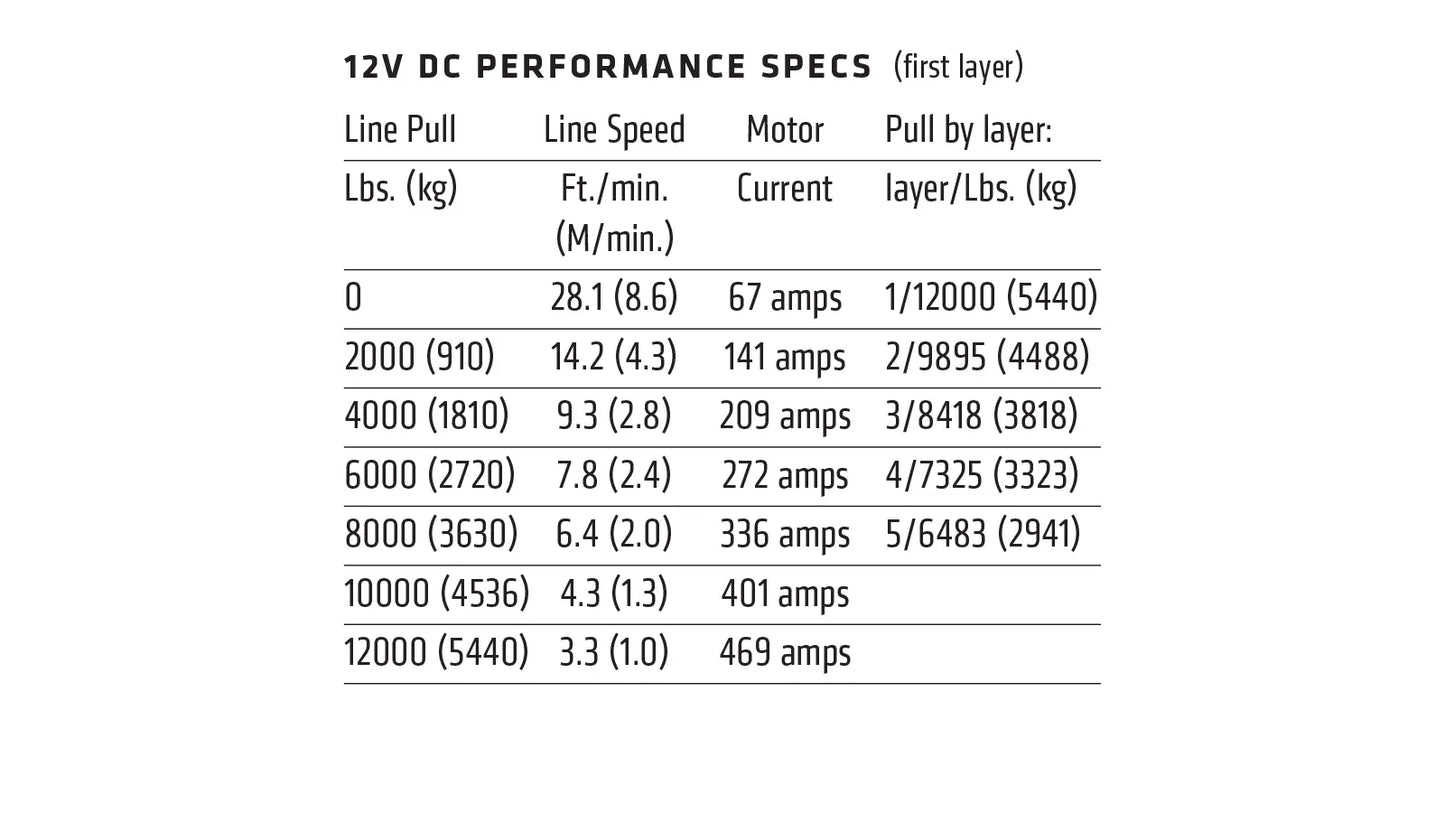

Max Amp Draw/ Line Pull 469 Amp Draw/ 12000 Pound
Max Line Pull/ Line Speed 12000 Pound/ 3.3 Feet Per Minute
Escriba su propia opinión Close Review Form
  • Sólo los usuarios registrados pueden escribir opiniones
  • Malo
  • Excelente
Description

The WARN ZEON 12 is the face of winching. Bolt one on, and you'll be ready for anything.

A top choice for those with heavily-loaded off-road vehicles, the ZEON 12 features innovative design, increased performance and durability, steel rope, and a hefty 12,000 lb. single-line pulling capacity.

The ZEON 12 is a pulling machine you can rely on to rescue you or your buddies, from nearly anything.

  • 12,000 lb. (5443 kg) single-line pulling capacity.
  • Includes 80' of durable 3/8" galvanized steel wire rope.
  • Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately*).
  • Gear train and motor deliver reliable pulling power that is fast, and quieter than ever.
  • Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
  • Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
  • Limited Lifetime Warranty
Especificaciones de producto
Type Electric
Mount Type Vehicle Mounted
Recommended Use Vehicle Recovery
Voltage 12 Volt
Electrical Control Type Contactors
Motor Type Series Wound
Thermal Shutoff No
Drive Gear Type Planetary
Gear Reduction Ratio 216:1
Free Spooling Yes
Brake Type Mechanical Cone
Line Diameter (IN) 3/8 Inch
Line Length (FT) 80 Feet
Line Material Steel
Fairlead Type Roller
Conforms To J706 Standards No
Remote Type Handheld Remote Switch
Mounting Hole Quantity 4
Operation Type Automatic
Mounting Pattern Length (IN) 10 Inch
Mounting Pattern Width (IN) 4-1/2 Inch
Includes Mounting Hardware No
Color Black
Max Amp Draw/ Line Pull 469 Amp Draw/ 12000 Pound
Max Line Pull/ Line Speed 12000 Pound/ 3.3 Feet Per Minute
