UNDERSTANDING WINCH SPECIFICATIONS:

When it comes to winches, you might think a higher horsepower electric motor easily means more pulling power. Many manufacturers boast about their winch's 6 HP, or 7 HP motors. You can even find budget priced off-brand winches for sale boasting 7.4 HP for under $250. But does claiming big motor horsepower automatically mean high performance? The answer is no, and we'll tell you why.

Big Horsepower Doesn't Always Mean High-Performance

Horsepower is one of those things people relate to because cars and trucks have a horsepower rating. Most people think a vehicle making more power is automatically faster and better. Of course, that's not always the case, and it certainly isn't with electric winches.
For example, a dump truck might make 500 HP, while a sports car may only make 300 HP. Just because the truck has more power doesn't make it faster. Why? Because horsepower is only part of the vehicle's performance. The dump truck has more mass to move. It's also geared differently than the sports car, which is optimized to go fast.
Also, you can throw a huge engine into a car, but that means you need to upgrade the other components to handle the extra power—transmission, driveline, brakes, etc. They must work as an efficient system, or you're bound to have a failure. So just because something has a higher horsepower doesn't automatically mean it's faster or stronger.

The new ZEON XD features a custom-tuned motor that's optimized to provide both fast line speeds and massive pulling power, up to 14,000 lbs.

Performance Comes from a Highly Engineered, Balanced System of Parts

A winch's motor horsepower is only one component of its performance. You can't simply assume a winch with 6 HP is going to pull harder/faster/longer or be more durable than a winch a winch with 4.6 HP. There needs to be a balanced, cohesive performance system that is tuned to work well together for efficiency. You can't just throw a big motor on and expect excellent results. You need engineering know-how to make this work.
For example, Warn puts a lot of time and effort into creating an efficient motor and geartrain combo that doesn't require higher motor horsepower. The combination of excellent gear design practices coupled with motor tuning knowhow helps achieve this system without needing a big motor that may tax the electrical system. Going back to the vehicle analogy, WARN winches are like a car that uses as 10-speed transmission vs. a three-speed. Warn can put more power to the ground without using a big motor. This is why Warn has teams of electrical and mechanical engineers behind every winch they make—and we have the data to prove our winches' performance.

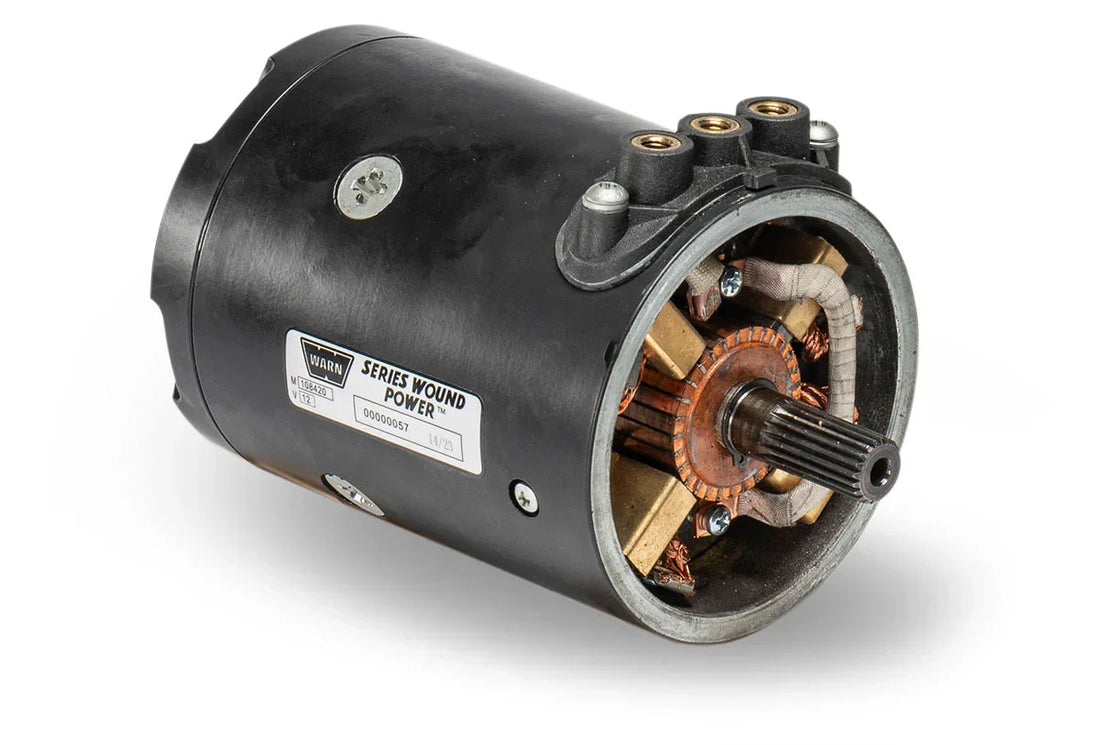

Speaking motors, Warn didn't just get an off-the-shelf motor for its new ZEON XD. Instead, our electrical engineers designed and tuned a motor pecifically for this application. You can learn more about this in this ZEON XD Winch Overview video.

Gear Ratios Are Important

More important than motor horsepower is the winch's gearing. Generally, the higher the winch's gear ratio, the faster it'll pull. A lower ratio (which is actually a larger number) will pull harder but may sacrifice line speed.

Left: The WARN 16.5ti Heavyweight winch features a 4.6 HP motor combined with a 315:1 gear ratio. Right: The WARN M8274 features a 6 HP motor combined with a 134:1 gear ratio.

Take for example the 16,500 lb. capacity WARN 16.5ti winch. It has a 4.6 HP motor—less than the WARN M8274, which has a 6 HP motor. The 16.5ti has a 6,000 lb. higher capacity. How? Gearing. The 16.5ti has a 315:1 gear ratio. The M8274 has a 134:1 ratio. So, despite the lower horsepower motor, the 16.5ti pull harder. However, the M8274 is also much faster. It should be noted that the 16.5ti (and all other WARN truck winches) use a planetary-style gear train, whereas the M8274 uses a spur-style gear train.

Other Performance Factors

A variety of other factors come into play with electric winches and performance. This includes drum diameter, rope diameter, electrical efficiency, and geartrain efficiency. While yes, power comes from the motor, the entire system needs to be tuned to work well together; it should be a system that efficiently puts power through the system to provide optimal pulling performance—something Warn Industries excels at.
The bottom line is this: You can't simply rely on a motor's claimed horsepower to choose the fastest or more powerful winch.

What Performance Stats to Look for In A Winch

Forget motor horsepower. It's not all that important. Instead, look at these performance features.

1. Maximum winch capacity
2. No-load line speed
3. Full-load line speed

Maximum winch capacity is important because you need the right rating for your vehicle. Go too small, and the winch won't be able to pull a stuck vehicle. (We have an entire post dedicated to how to choose the right winch for your vehicle.)
No-load line speed is important for a couple reasons. First, it is better when for vehicle-assisted winching. It helps reduce slack and shock loading during winching operation. Secondly, winches with faster no-load line speed are quicker to be re-spooled after a recovery. This means less time e-spooling winch line, and more time on the trail.

Driver-assisted recovery benefits from a winch with fast no-load line speed.

Lastly, full-load line speed. How fast is this winch going to pull under a full load? This may be more important to rock racers who need to go as fast as possible, however.

The Moral: Don't Judge a Winch by Its Horsepower

Clearly, motor horsepower means something. You can't put a little tiny motor from an R/C car onto a truck winch and expect it to pull 10,000 lb. Conversely, you can't throw a massive electric motor into the equation and expect efficiency. There must be some engineering know-how here.
Most winch motors are going to be able to pull the advertised capacity regardless of horsepower. But that horsepower number some manufacturers tout is less important than they want you to believe.
Rather than fixating on a winch's motor output, look at the gear ratios and then the line speed ratings. These will give you a glimpse at the winch's actual performance. And if you run across cheap winches that don't provide performance data but brag about their high-power motor? Well, just remember— you get what you pay for.
Warn has been making winches since 1959 and knows how to make a world-class winch with the right mix of power, gear train, and electrical know-how. So don't worry about the horsepower, rather, look at the performance stats and buy from trusted brands, like Warn Industries.
