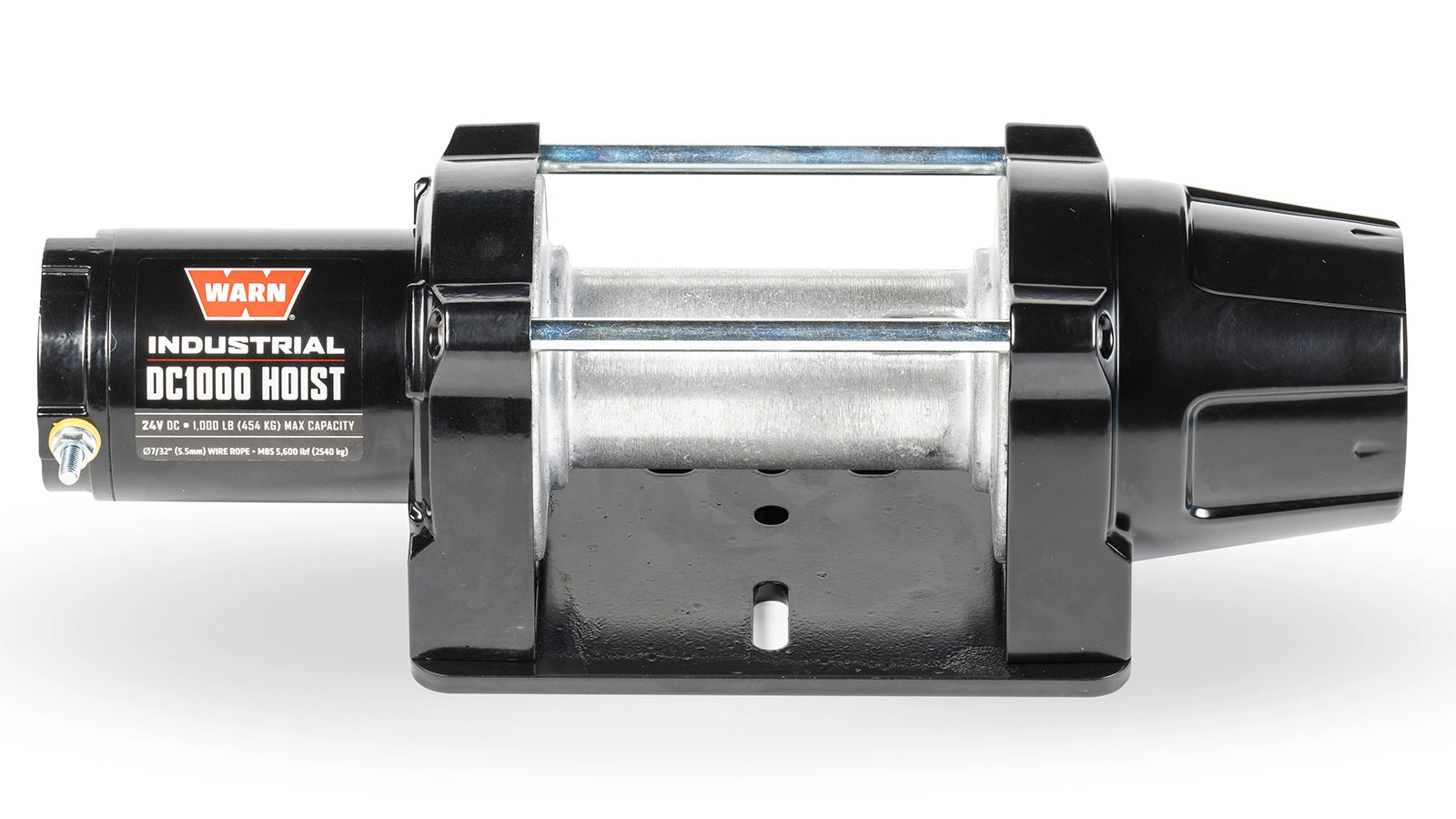

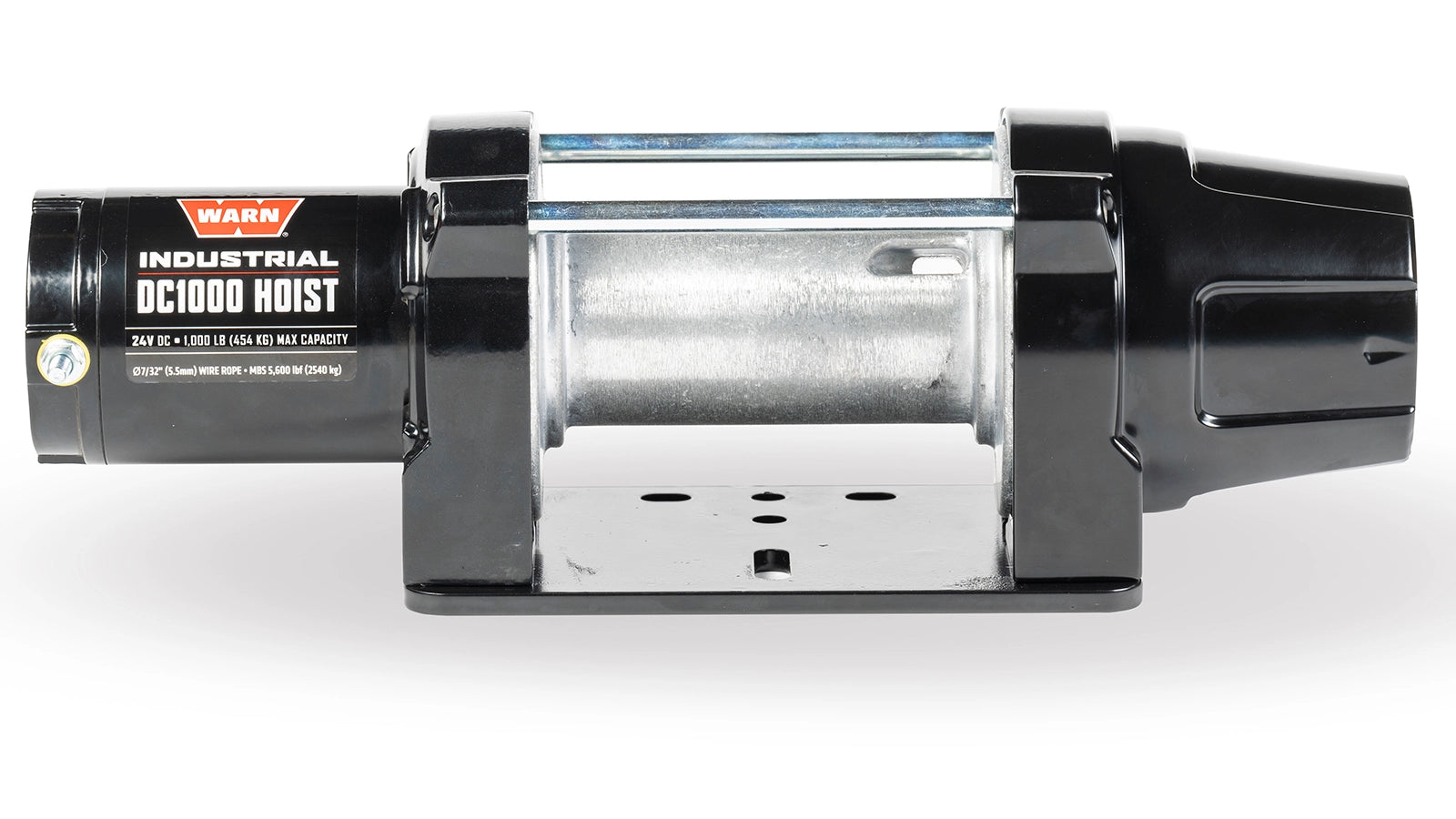

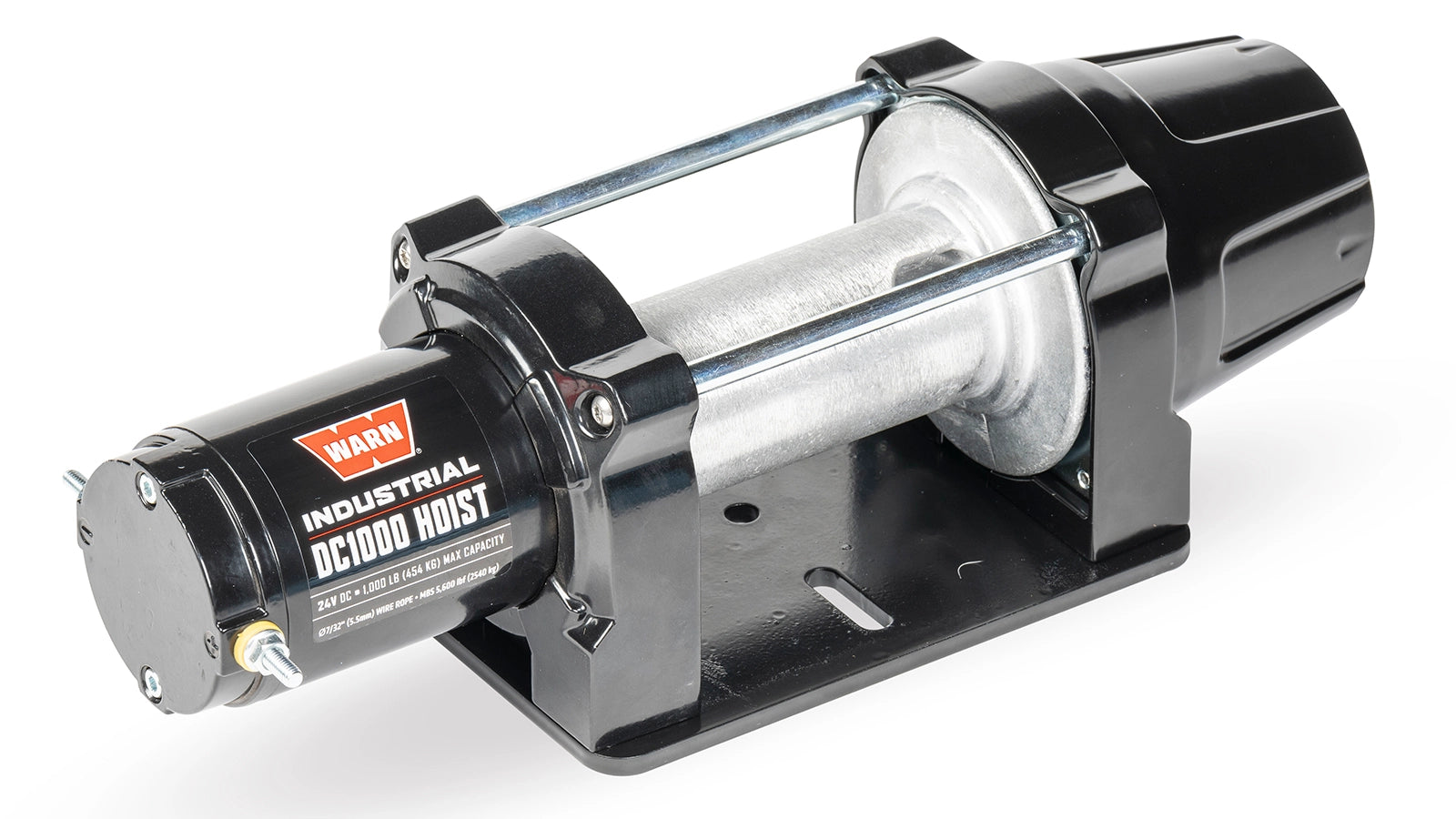

DC1000 24V Hoist

PART NUMBER: 105102

This hoist has a 1,000 lb. (454kg) capacity and is powered by a strong 24-volt DC permanent magnet motor. Also features a reliable three-stage planetary gear train, automatic load-holding brake, and is IP68/IP69K waterproof.

Regular price $918.99
Sale price $918.99 Regular price
Fast delivery truck
Want Free & Faster Shipping?

With Ship-To-Store, we offer thousands of products shipped to your local store fast and free with next-day delivery*. Learn More

Designed, engineered, and assembled in the USA
California Prop 65:
California Prop 65 Warning
This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov

Description

Small but mighty, these hoists will work in a variety of applications from work truck cranes and davits, to lifting heavy spare tires on overland rigs, and even military vehicles. With WARN reliability, automatic braking, and an included mounting plate and hardware, the new DC1000 are the perfect way to give those tough jobs a lift. WARN Industrial hoists combine the performance of heavy duty motors with hardened steel planetary gear trains to provide optimum power in lifting operations. All WARN hoists comply with the most stringent standards.

  • 1000 lb. (454 kg) capacity
  • 24V DC permanent magnet motor
  • IP68/IP69K waterproofing sealing
  • Mounting bolt pattern 3.0-in. x 6.59-in. (76.2mm x 167.4mm)
  • Automatic mechanical brake that holds full-rated load

vehicle Compatibility List

Specifications

Cable MaterialNo rope included
ColorN/A
Motor CapacityN/A
Motor Voltage12V
Mount TypeFixed Mount
Operation TypeElectrical
Rated Line Pull1000 LB
Winch RatingN/A

Product Literature

Planetary Gear Hoists Lineup

If you need optimum power in lifting operations, look no further. WARN Industrial hoists combine the performance of heavy-duty motors with hardened steel planetary geartrains to provide lift assists you can count on. WARN DC electric hoists are available with 12V and 24V motors, while hydraulic hoists work with all hydraulic systems. All WARN hoists comply with tough global quality standards.

LEARN MORE →
Planetary Gear Hoists Lineup
800–4,000 lbf
Lift Capacity
3-Stage
3-Stage
12V / 24V DC & Hydraulic
Power Options
