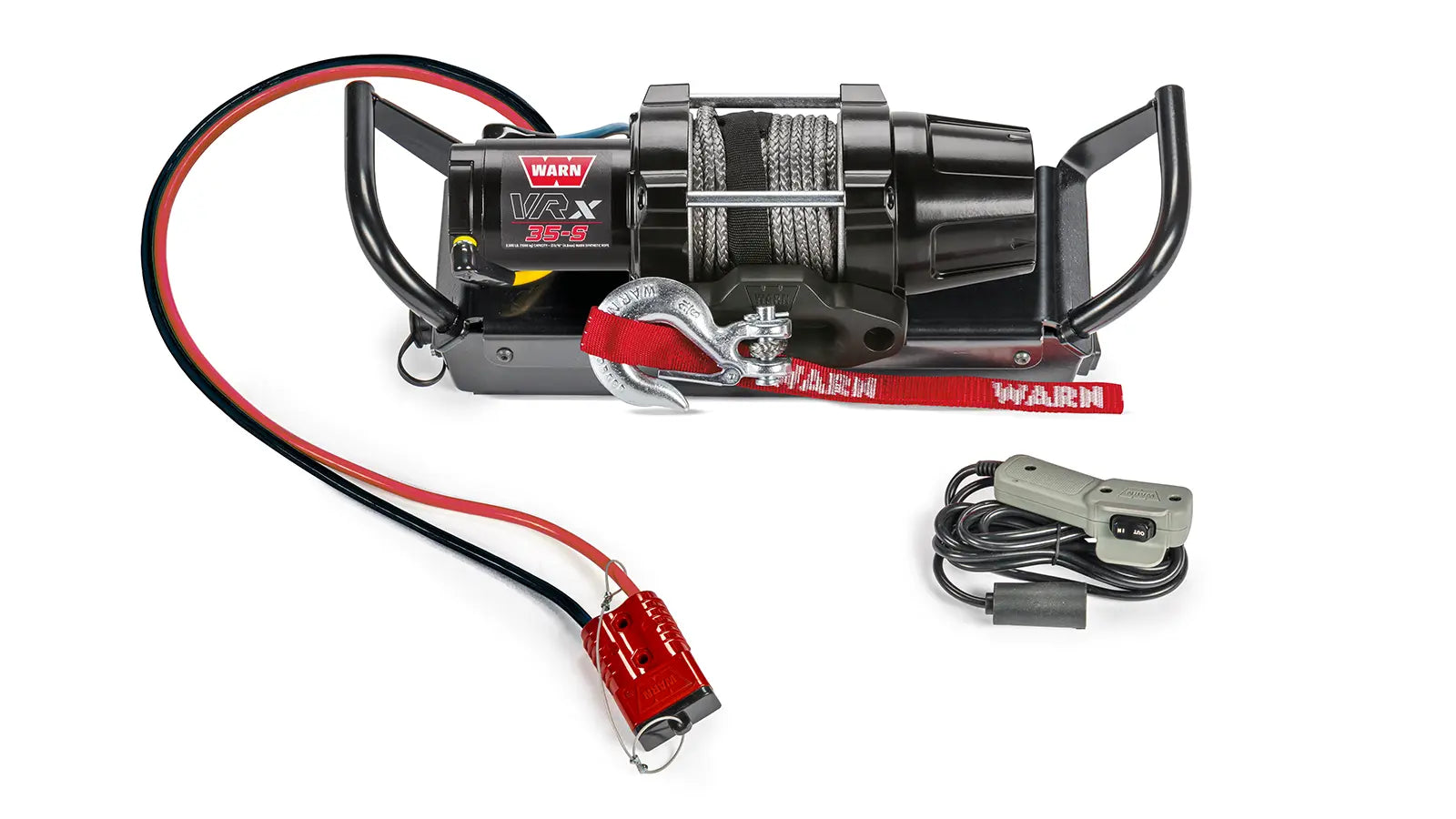

VRX 35-S All-In-One Multi-Mount Kit

PART NUMBER: 111878

The VRX Multi-Mount kit works with any 2-in. class III hitch receiver. Requires 175-amp power lead connected to vehicle battery (PN 70717).

Regular price $944.99
Sale price $944.99 Regular price
Winch Comparison ➜
Fast delivery truck
Want Free & Faster Shipping?

With Ship-To-Store, we offer thousands of products shipped to your local store fast and free with next-day delivery*. Learn More

Designed, engineered, and assembled in the USA
California Prop 65:
California Prop 65 Warning
This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov

Description

All the benefits of a Multi-Mount, but now pre-wired for faster, simpler installation. The new VRX All-In-One Multi-Mount Kit is pre-wired out of the box and gets rid of complex wiring and setup. Just bolt the included VRX 35-S or VRX-45-S winch to the pre-wired electrical tray, and connect the appropriate wiring, and you’re ready to winch to any vehicle equipped with Quick-Connect wiring (sold separately). There’s no fussing with wires, no need to find a place for the winch’s contactor—it’s all in the mount’s tray. You get the ability to move the winch from the front to the rear of your ATV/UTV or even install it on other vehicles. The new VRX All-In-One Multi-Mount Kit is designed, engineered, and made in the USA and will work with any 2-in. class III hitch receiver. A rocker switch and corded remote are included, and the wiring is already in the tray and ready to work.

  • Lets you move your winch between the front and rear of your ATV/UTV or even between vehicles making it a great portable solution
  • Since it's pre-wired out of the box, there's no complex wiring or setup required. Simply bolt the winch and the pre-wired electrical tray to the mounting plate and the winch is ready to use
  • Versatile controls let you operate the winch with a lighted rocker switch or corded remote control via a plug-in connector. Both are included, and preinstalled right on the multi-mount carrier
  • Includes 3,500 lb. capacity VRX winch, which includes 50-ft. of lightweight, easy-to-handle 1/4-in. synthetic rope, hawse fairlead, and a forged hook. Fits any 2-in. class III hitch receiver
  • Designed, engineered, and assembled in the USA

vehicle Compatibility List

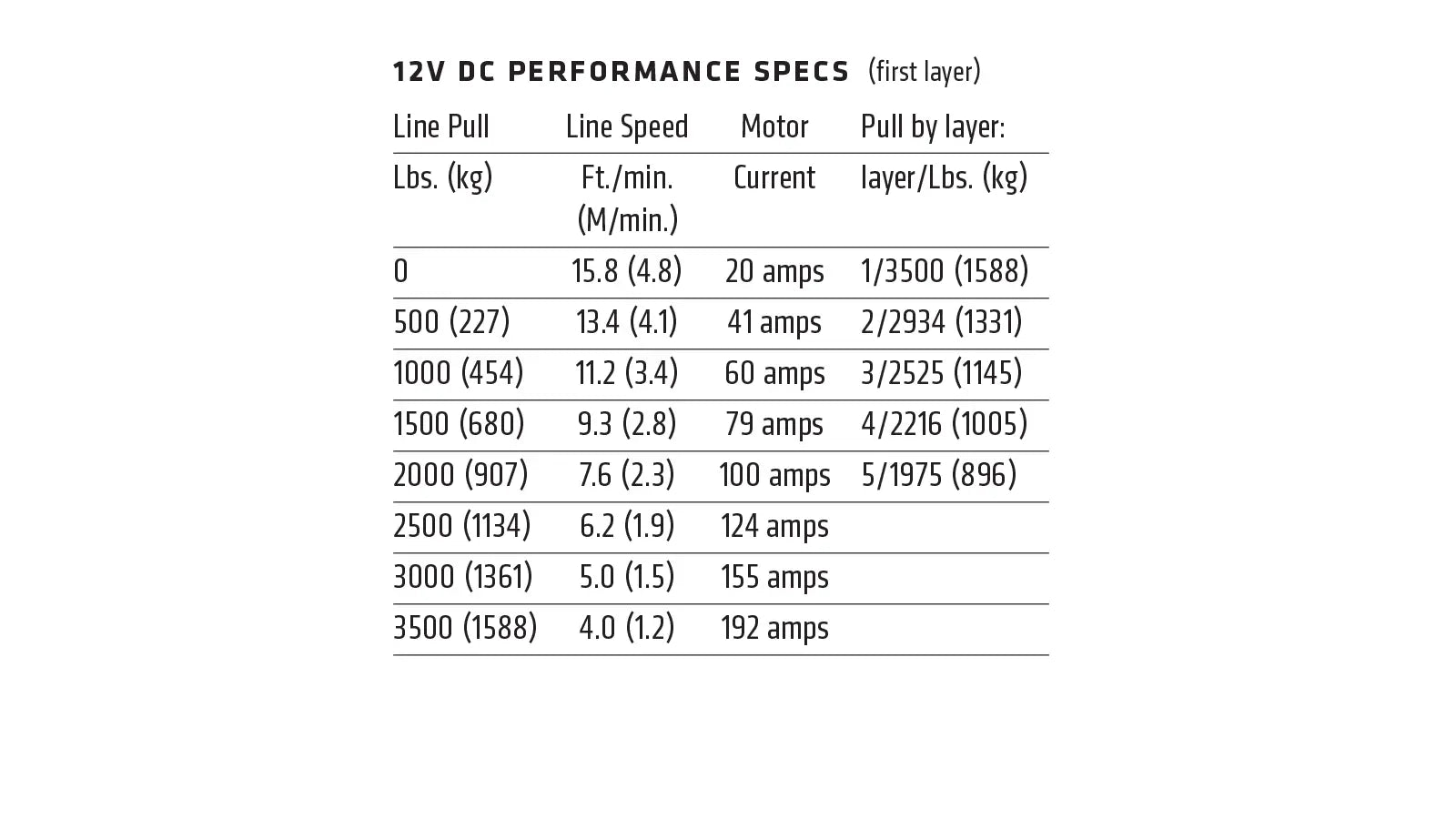

Specifications

Brake ActivationAutomatic
Brake TypeDrum
Cable Diameter0.1875 IN
Cable Length50 FT
Cable MaterialSynthetic Rope
Fairlead TypeHawse
Free SpoolingYes
Gear Ratio153:1
Gearing3-Stage Planetary
Motor TypePermanent Magnet
Motor Voltage12
Mount TypeMulti Mount
Mounting Bolt Pattern Length4.87 IN
Mounting Bolt Pattern Width3 IN
Mounting Hole Quantity4
Operation TypeElectrical
Power OutYes
Rated Line Pull3500 LB
Remote IncludedYes
Remote TypeWire
TypeElectric

Product Literature

VRX Winch LineUp

ALL-NEW LINEUP TAKES PERFORMANCE AND VALUE TO LEVELS NEVER BEFORE SEEN IN A POWERSPORTS WINCH.

Whether you’re on the job or on the trail, WARN VRX winches work as hard as you do thanks to all-metal construction, a new clutch based on the legendary WARN 4WD hublock design, an ultra-durable all-metal gear train, and full waterproof sealing to take on the elements. VRX is available in 2,500, 3,500, and 4,500 lb. capacities and is perfect for a variety of vehicles and any job—big or small

LEARN MORE →
VRX Winch LineUp
2,500–4,500 lb
Capacity
IP68/IP69K
Waterproof
Ltd. Lifetime
Warranty
