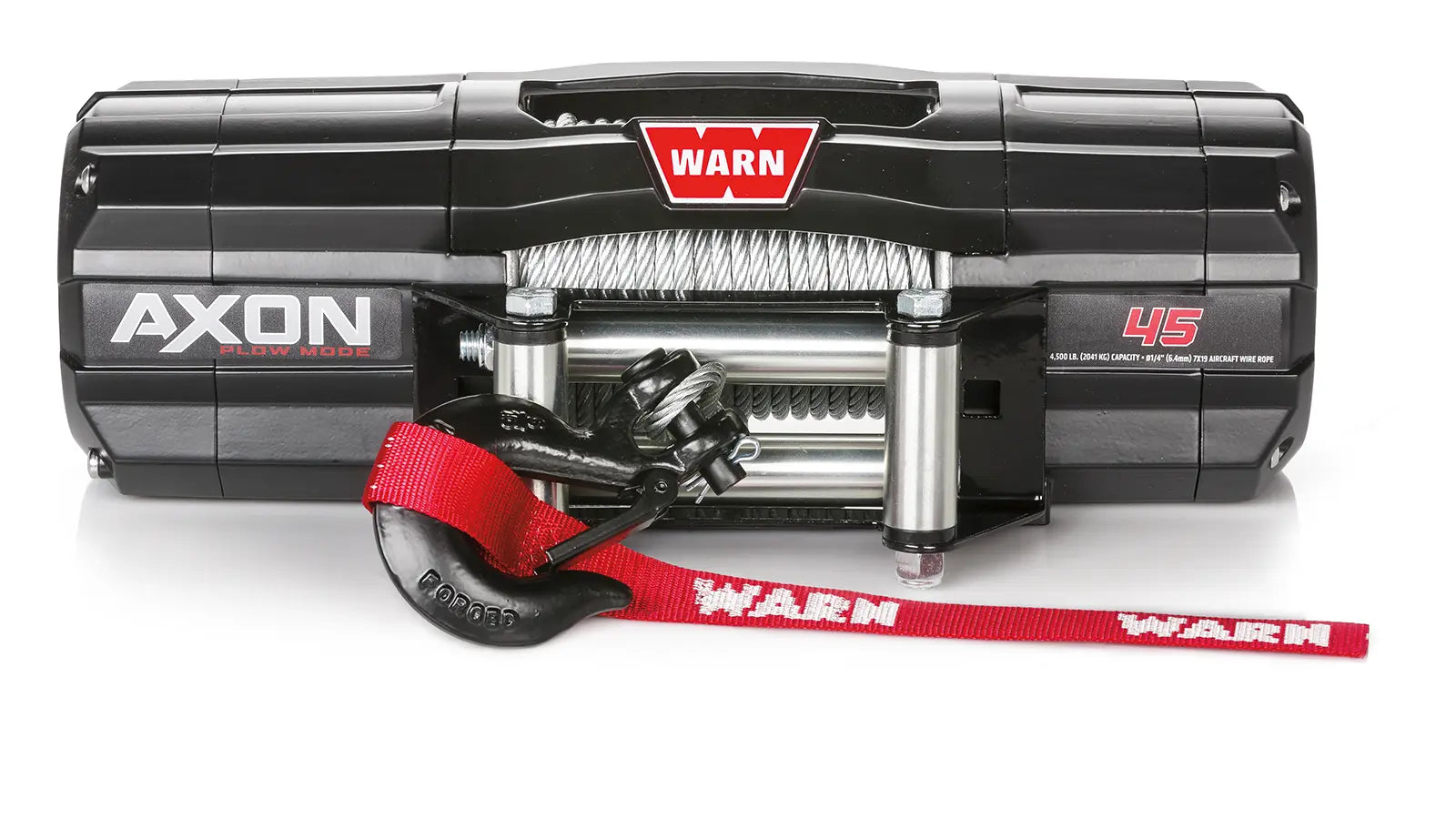

AXON 45

PART NUMBER: 110245

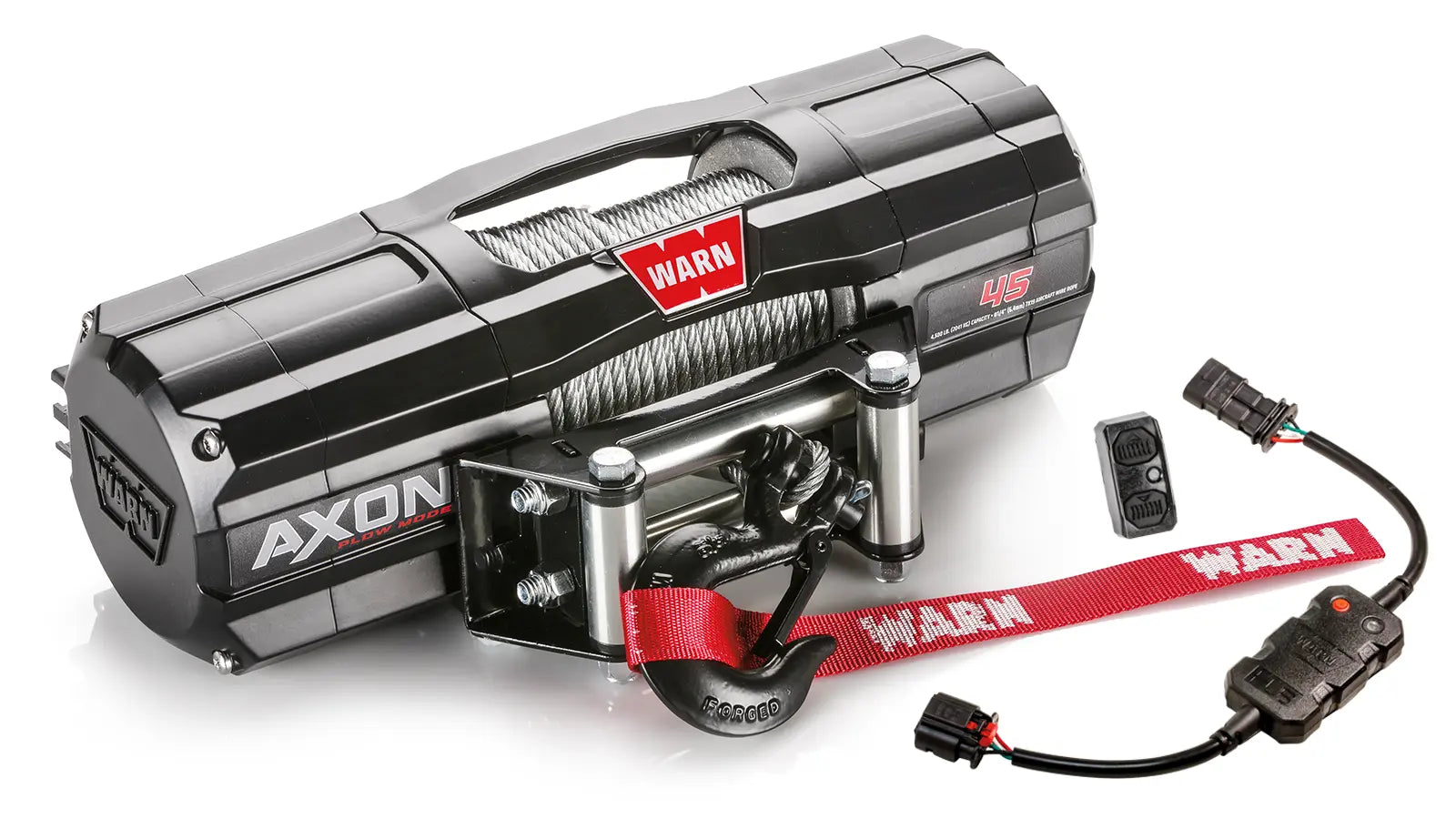

The premium AXON 45 includes 50-ft. of durable 1/4-in. steel rope, roller fairlead, and black hook, and a rockerbar digital control switch. AXON is the ultimate powersports winch featuring the all-new plow mode.

Regular price $859.99
Sale price $859.99 Regular price
Winch Comparison ➜
Fast delivery truck
Want Free & Faster Shipping?

With Ship-To-Store, we offer thousands of products shipped to your local store fast and free with next-day delivery*. Learn More

Designed, engineered, and assembled in the USA
Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle. Please visit our Mounting & Protection category for available options.
California Prop 65:
California Prop 65 Warning
This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov

Description

AXON is the most durable, reliable, feature packed powersports winch anywhere. Designed, engineered, tested, and assembled in the USA, AXON’s no-compromise quality means it has what it takes to stand up to whatever you throw at it. AXON is a versatile workhorse that gives you a variety of control options. All models come with a dash switch that operates the winch while also providing winching feedback (AXON 35 comes with an adaptor so the switch can be mounted on handlebar). The HUB Wireless Receiver (sold separately for AXON 35) lets you operate the winch using your smartphone from over 100 ft away. Easy-to-read gauges show the winch’s motor temperature, load info, and the vehicle’s battery info. The new Plow Mode lets you seamlessly operate your plow—all from your smartphone. AXON 45 and 55 also include a corded remote socket and wiring harness (the corded remote is sold separately). Plow Mode provides superior control over a plow’s position with programmable upper and lower travel limits, preventing possible damage from raising or lowering the blade too much. The one-touch Auto Move option adjusts the plow to its upper and lower limits with one-touch operation, eliminating the need to operate multiple controls at once. Plow Mode requires a Hub Receiver and Smartphone to work (HUB Receiver sold separately for AXON 35 and 35-S). AXON’s unique 2-in-1 motor and contactor unit, aka, Motactor, saves space and provides supreme efficiency. Plus, it saves on install time, so you can put the winch to work faster. The IP68/IP69K-rated waterproof construction keeps the gunk out and the winch working in all conditions. Available in 3,500 lb., 4,500 lb., and 5,500 lb. capacities, there’s an AXON to suite a variety of ATVs and UTVs. With reliability, power, and versatility, AXON lets you GO PREPARED for work or play.

  • Powerful 4,500 lb. pulling capacity is perfect for UTV/Side x Sides
  • Plow mode allows for simplified plow controls and operation. Lets you set lifting limits and has one-touch control
  • Revolutionary Motactor™ combines motor and contactor for easy installation, best performance
  • Digital control offers never-before seen levels of performance and user feedback including load and temperature info
  • Smooth, reliable all-metal three-stage planetary gear train
  • Satin black powder-coated finish and stainless steel fasteners for corrosion resistance
  • New clutch design based on legendary WARN 4WD hub lock know-how
  • Durable all-metal construction and one-piece tie plate (vs. tie bars) for increased structural rigidity
  • IP68 waterproofing keeps water and the elements out
  • Load-holding brake for great control
  • rockerbar digital control switch, and HUB Wireless Receiver
  • Limited lifetime warranty (mechanical), 3 year warranty (electrical)
  • Includes 50-ft. of durable 1/4-in. steel rope and a roller fairlead
  • Designed, engineered, and assembled in the USA in the USA

vehicle Compatibility List

Specifications

Brake ActivationAutomatic
Brake TypeDrum
Cable Diameter1/4 IN
Cable Length50 FT
Cable MaterialMetal Rope
D Shackle IncludedNo
Fairlead TypeRoller
Free SpoolingYes
Gear Ratio239:1
Gearing3-Stage Planetary

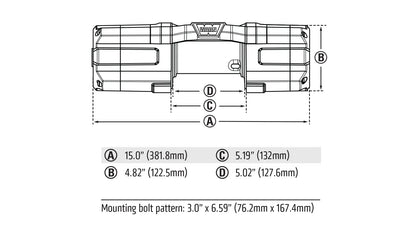

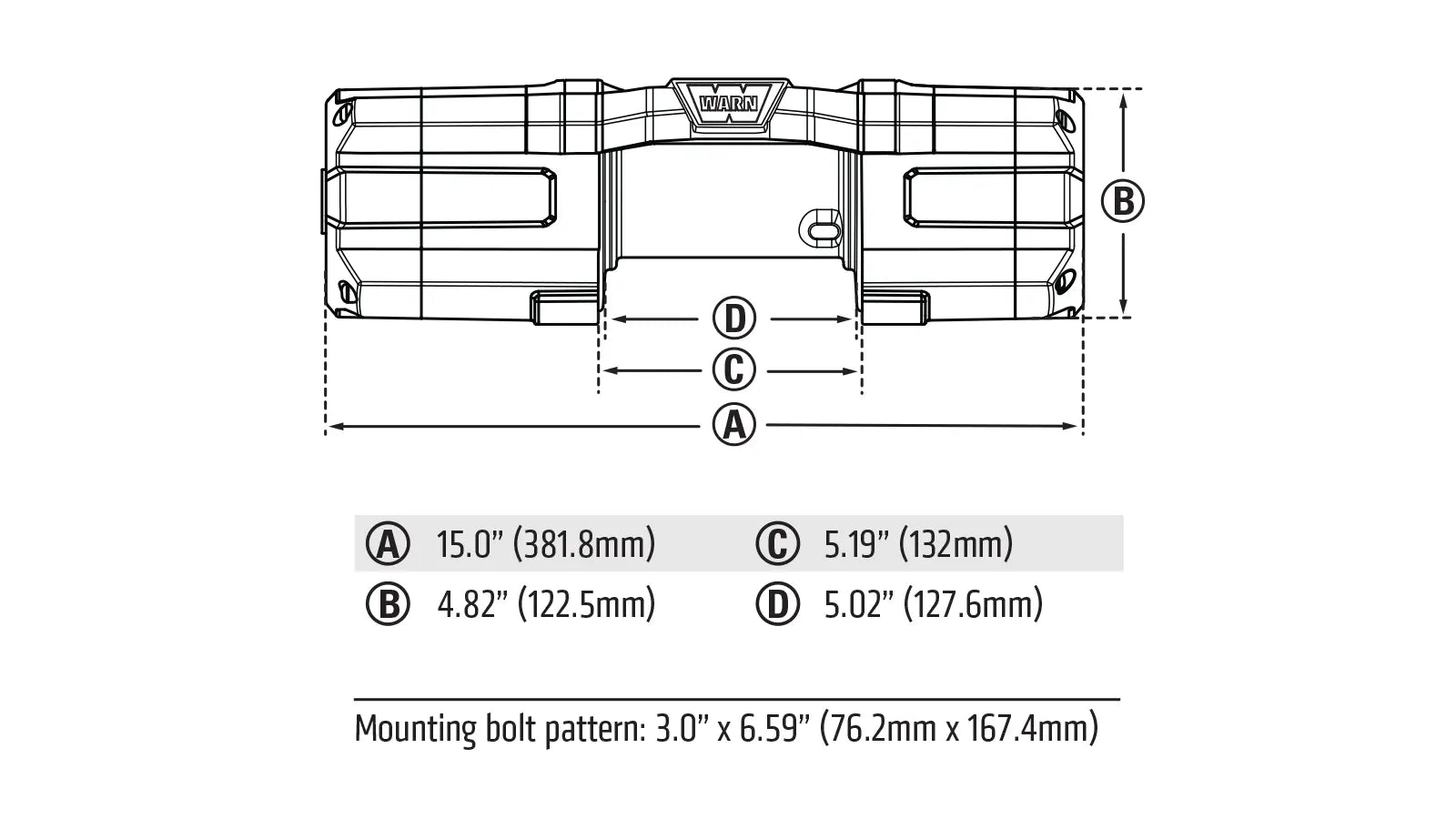

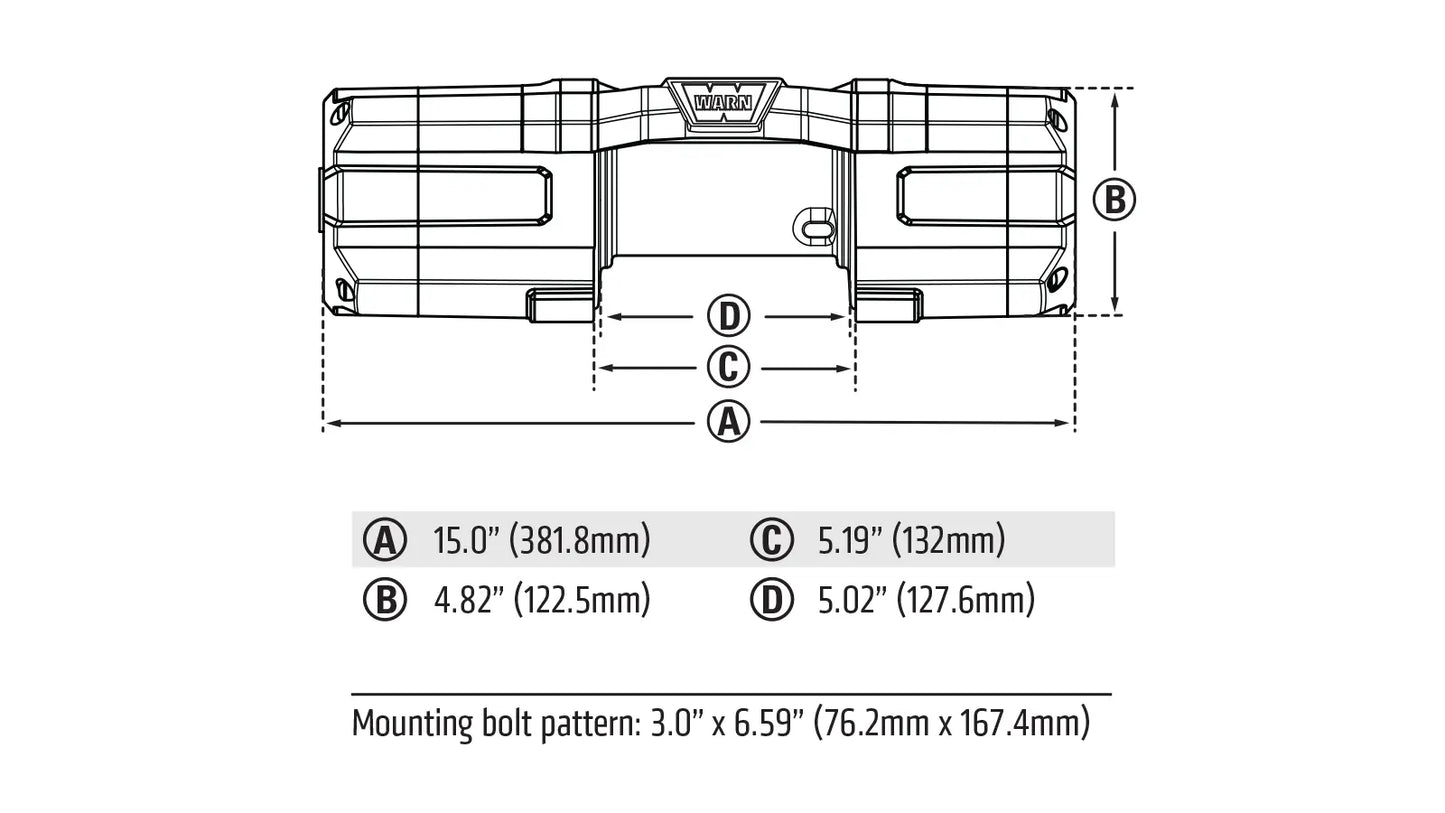

Length15
Maximum Height4.8 IN
Maximum Width4.6 IN
Motor TypePermanent Magnet
Motor Voltage12V
Mount TypeFixed Mount
Mounting Bolt Pattern Length6.59 IN
Mounting Bolt Pattern Width3 IN
Mounting Hole Quantity4
Plow ModeYes
Power OutYes
Rated Line Pull4500 LB
Requires MountYes
TypeElectric
Voltage12V

Product Literature

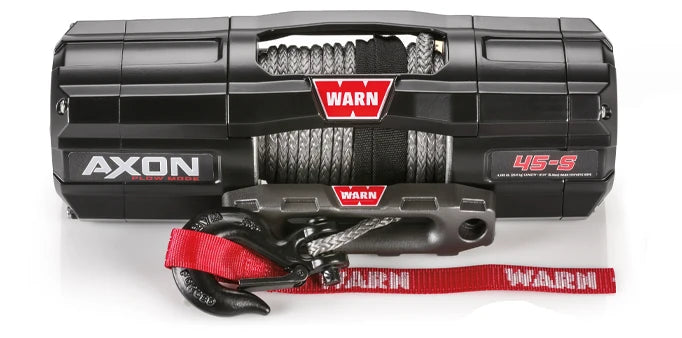

Axon Winch LineUp

HIGH-TECH MEETS EXTREME-DURABILITY

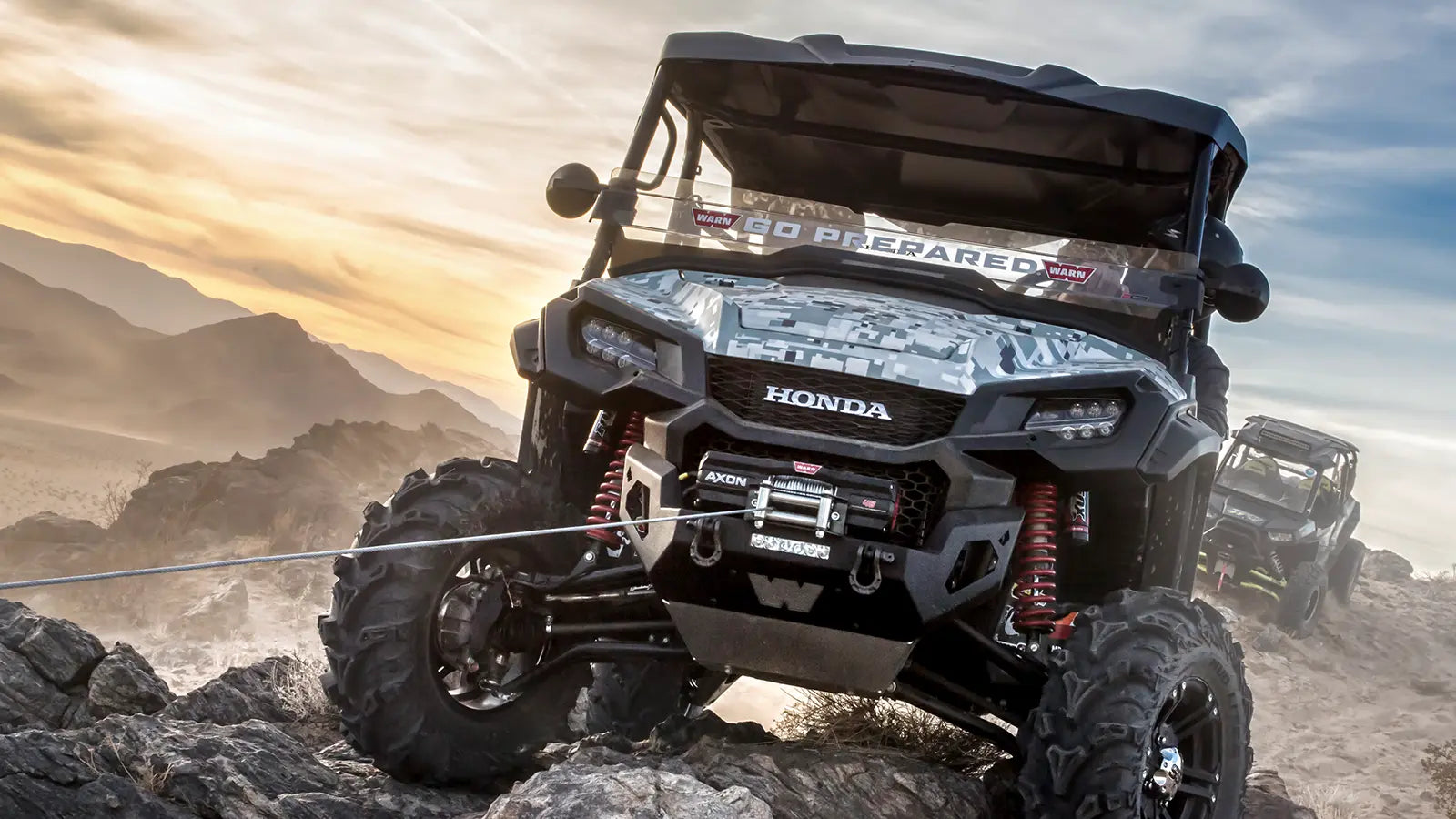

Whether it’s deep sand, thick mud, jagged rocks, or something in between, unexpected challenges can lead to stuck situations. That’s why the WARN AXON winches take a legendary reputation for proven performance to a new level. Advanced technology and standard HUB Wireless smartphone control monitors temperature and provide user feedback, all adding up to maximum levels of reliability. AXON delivers technology you can count on in any situation with brute force pulling power. All this from Warn—the company that has always put reliability above all else. If you live for pushing limits, you can’t live without AXON.

LEARN MORE →
Axon Winch LineUp
3,500–5,500 lb
Capacity
IP68/IP69K
Waterproof
Ltd. Lifetime
Warranty
