M12 24V

PART NUMBER: 265072

Vehicle Mounted; Vehicle Recovery Winch; 24 Volt Electric; 12000 Pound Line Pull Capacity; 125 Foot Wire Rope; Roller Fairlead; Wired Remote; Planetary Gear Drive; Requires Winch Carrier or Winch Mount

Regular price $2,727.99
Sale price $2,727.99 Regular price
Winch Comparison ➜
Fast delivery truck
Want Free & Faster Shipping?

With Ship-To-Store, we offer thousands of products shipped to your local store fast and free with next-day delivery*. Learn More

Designed, engineered, and assembled in the USA
Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle. Please visit our Mounting & Protection category for available options.
California Prop 65:
California Prop 65 Warning
This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov

Description

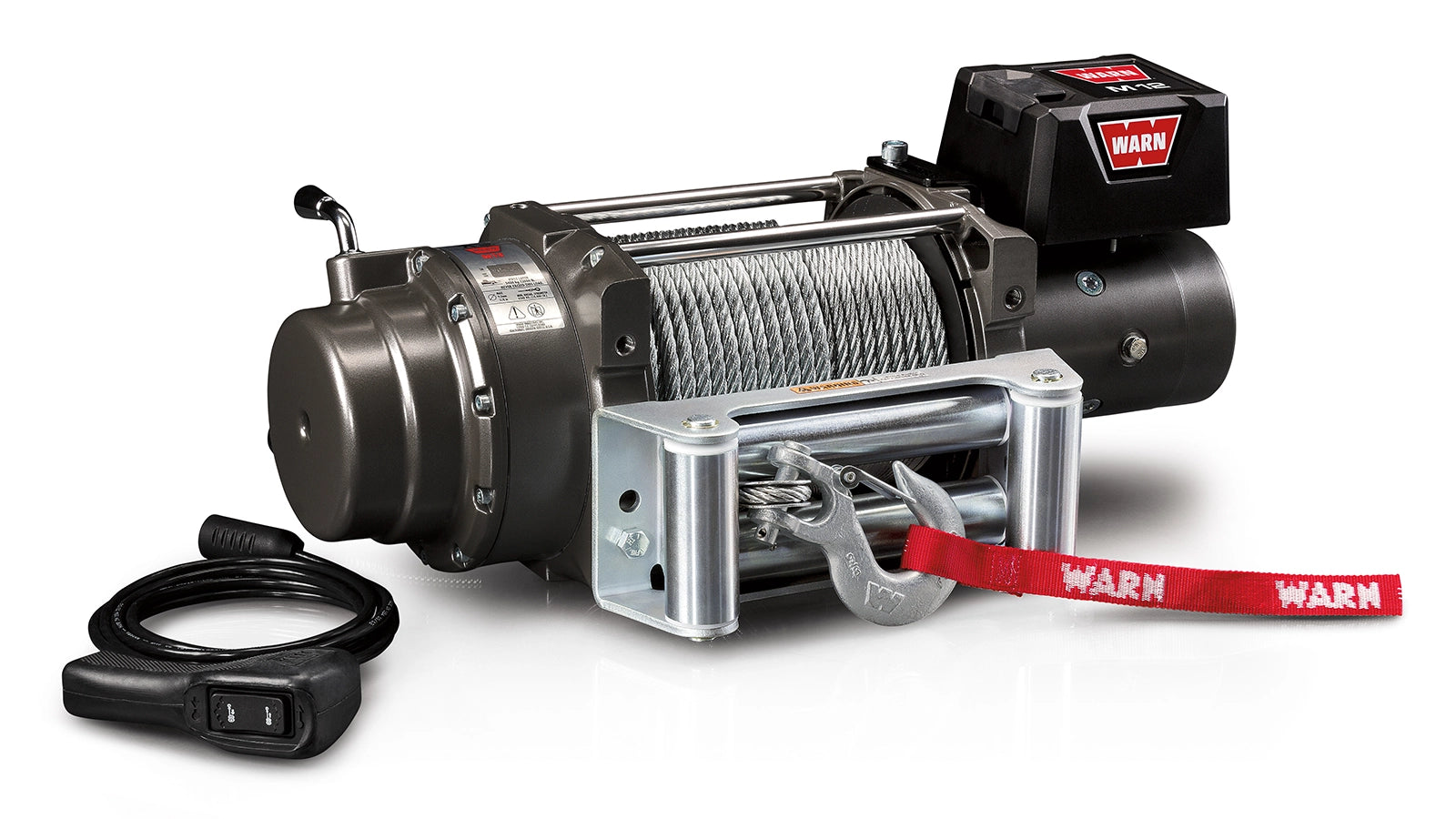

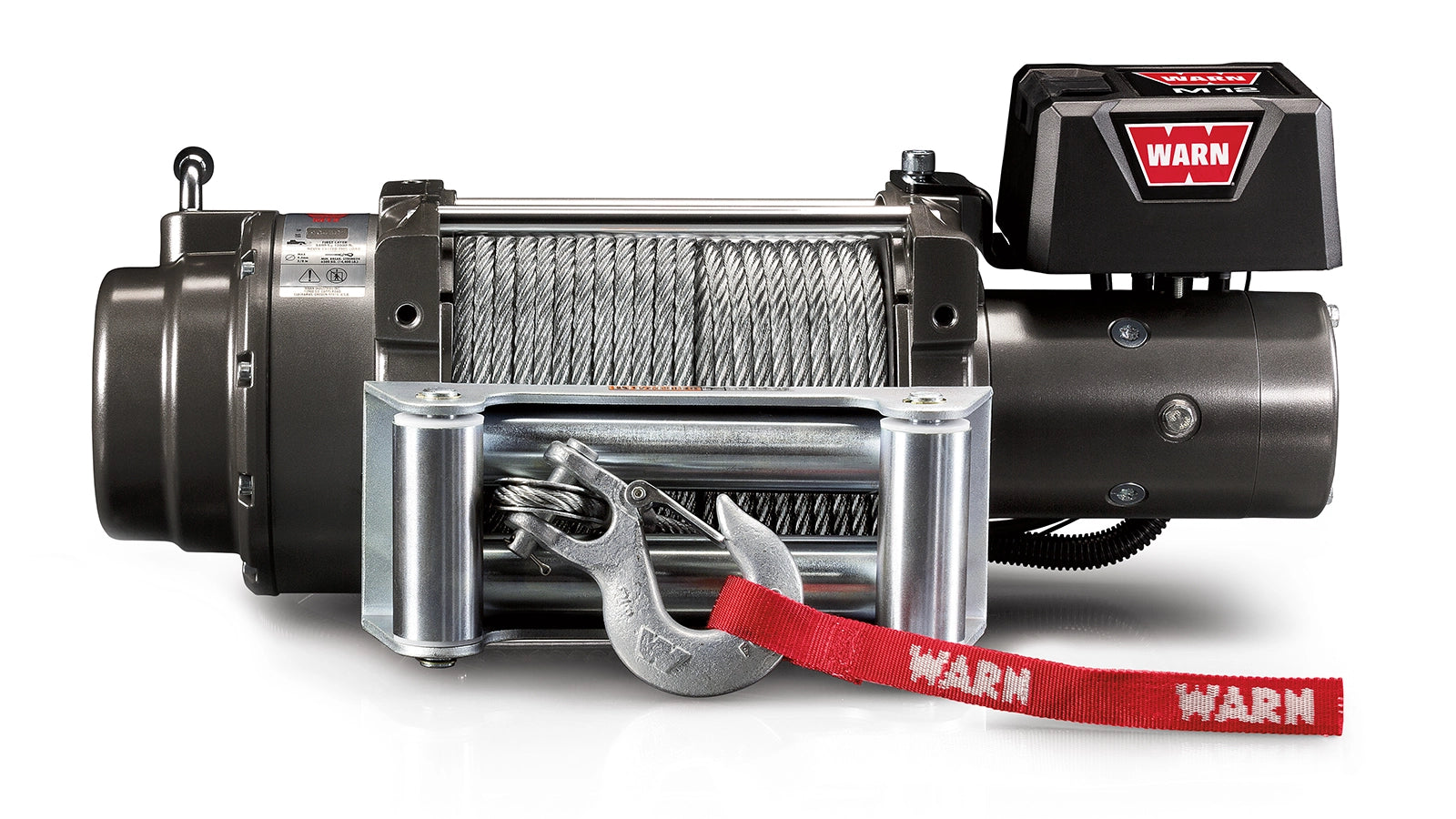

The M12-S is a reliable workhorse that'll meet your heavy winching needs. With a 12,000 lb. capacity, large-frame winch architecture with heavy-duty drum supports, and a powerful motor, the M12 is for 3/4-ton trucks that need to pull hard. The removable control pack houses a reliable Albright® contactor, and the stout geartrain is ready to go to work on those big, long pulls. Plus it's designed, engineered, and assembled in the USA.

Built for the biggest, heaviest and longest pulls, the WARN Heavyweight Series winches are capable of the heaviest pulls and the biggest jobs. They feature heavy-duty carrier plates engineered to handle the massive gear train stress generated when recovering the largest of loads. These are time-tested winches and crowd favorites among owners of big trucks and SUVs.

  • Large frame design to handle heavier winch loads
  • High speed 24V motor for fast line speed and powerful pulls
  • Long 125' of 3/8" durable steel rope with roller fairlead
  • Chip-resistant powder-coated finish resists corrosion
  • Remote-mount control box allows for various mounting options
  • Industry-leading warranty: Limited lifetime (mechanical components); seven year (electrical components)

vehicle Compatibility List

Specifications

Cable Length125 FT
Cable MaterialMetal Rope
Motor Voltage24V
Mount TypeFixed Mount
Rated Line Pull12000 LB
Requires MountYes

Product Literature

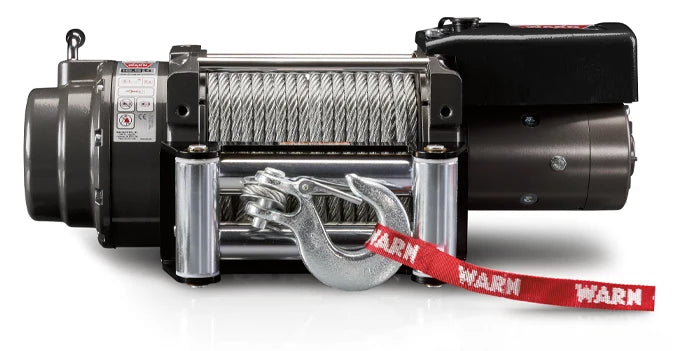

M12 & M15 Winch LineUp

The M12 & M15 are WARN's Heavyweight workhorse winches — built for big trucks, serious loads, and all-day use. With 12,000 and 15,000 lbs. of pulling capacity, massive torque, and large-frame construction, both are engineered to handle the stresses of heavy-duty winching. Whether you're hauling on the job or recovering on the trail, the M12 and M15 deliver the combination of power, speed, and durability that full-size trucks demand. Built and assembled in Oregon, USA.

LEARN MORE →
M12 & M15 Winch LineUp
12K–15K lbs
Capacity Range
22–30 ft/min
No-Load Speed
Up to 11,000 lbs
Suitable GVWR
Oregon, USA
Assembly
