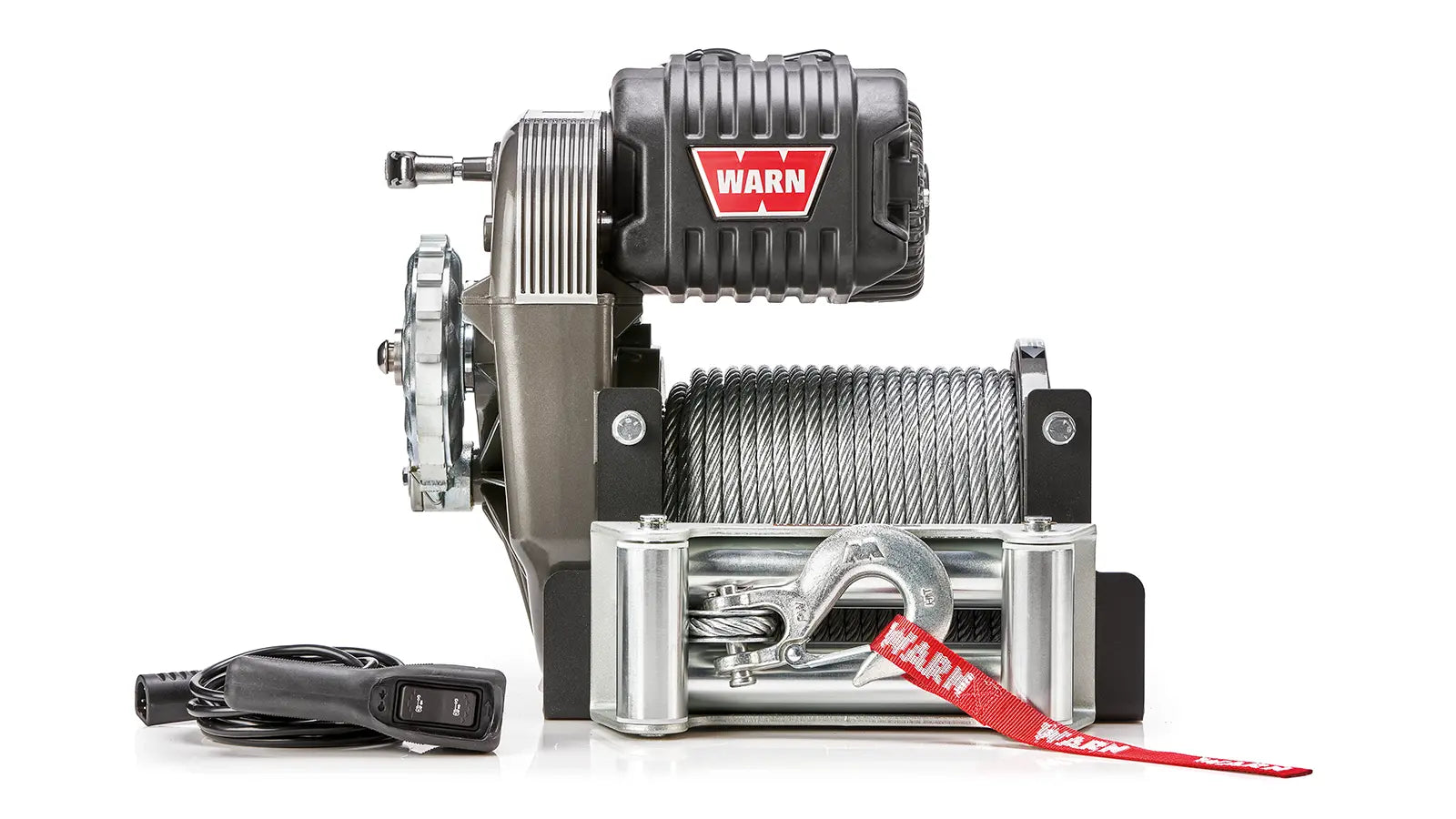

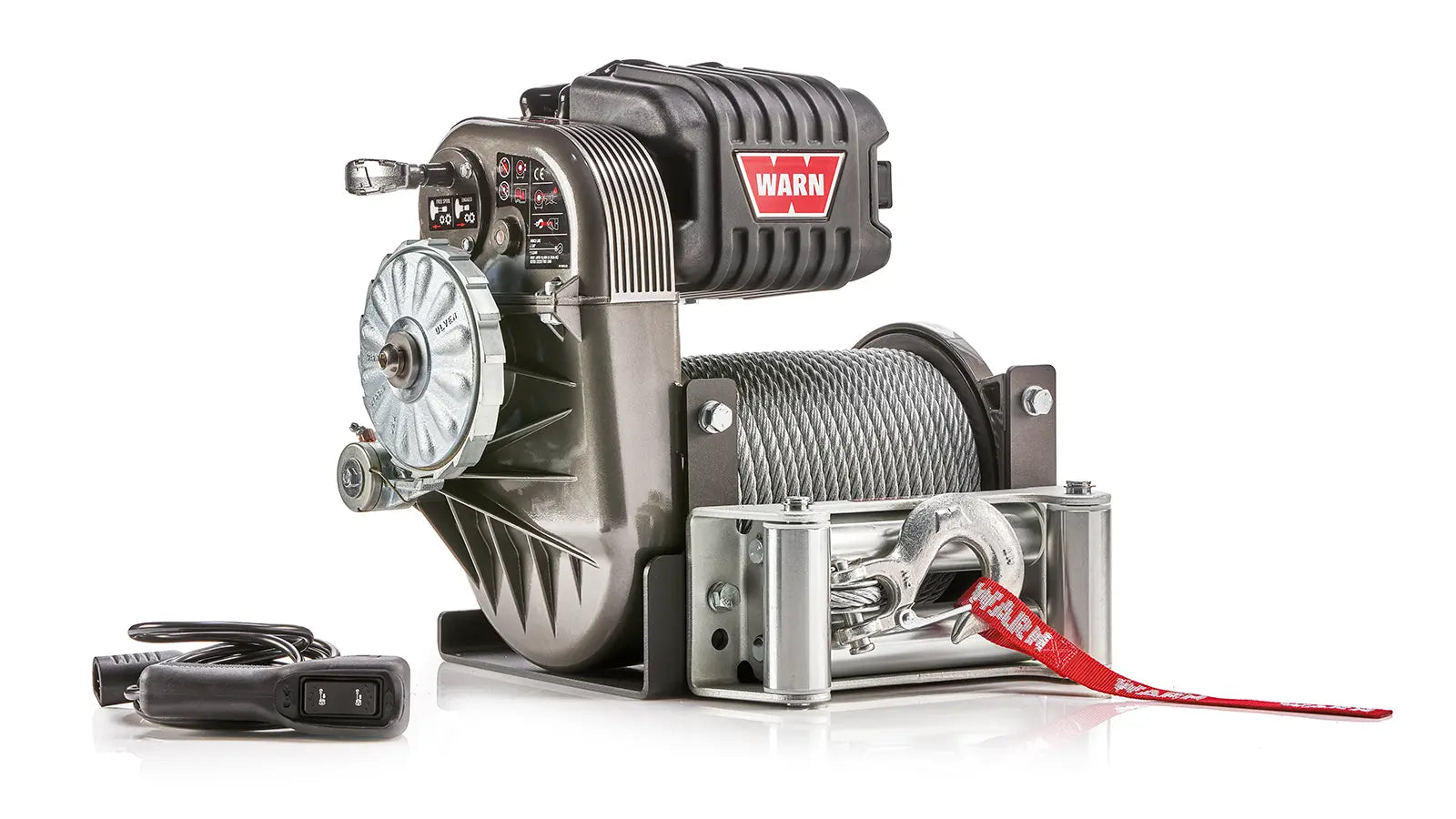

M8274

PART NUMBER: 106170

High-output 6HP motor for 10,000lb pulling capacity ; IP68 waterproof Albright electrical contactor ; 125ft of 3/8 diameter steel cable ; High-strength polymer control pack housing ; Ergonomic stainless steel clutch T-handle

Regular price $3,534.29
Sale price $3,534.29 Regular price
Winch Comparison ➜
Fast delivery truck
Want Free & Faster Shipping?

With Ship-To-Store, we offer thousands of products shipped to your local store fast and free with next-day delivery*. Learn More

Designed, engineered, and assembled in the USA
Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle. Please visit our Mounting & Protection category for available options.
California Prop 65:
California Prop 65 Warning
This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov

Description

The M8274 is living legend. Its DNA can be traced back to the original WARN winches of the late 1950s, but this modern marvel is still a favorite winch users the world over. With its super-fast no-load line speed, upright design, spur gear drive train, and long rope lengths, the M8274 is perfect for classic rigs and even some new ones. With a 10,000 lb. capacity, powerful 6hp motor, and Albright contactor control, the M8274 continues to be an icon. Plus, it's designed, engineered, and assembled in the USA.

The icon continues with the current evolution of the classic M8274. Featuring a powerful 6hp motor that provides a 10,000 lb. pulling capacity and 50% faster line speed at the rated load. Combine this with updated contactor control and available Spydura synthetic rope to achieve new levels of legendary.

  • Industry-leading warranty: Limited lifetime (mechanical components); seven year (electrical components)
  • Powerful, high-performance 6 hp series-wound motor provides fast line speeds, even under load
  • 10,000 lb. pulling capacity
  • Includes 125' of durable 3/8" steel rope and a roller fairlead
  • IP68 waterproof Albright contactor for increased reliability, efficiency
  • Two Oilite bushings installed on pinion gear assembly for improved wear resistance
  • Bolt-and-washer secured brake shaft delivers enhanced durability

vehicle Compatibility List

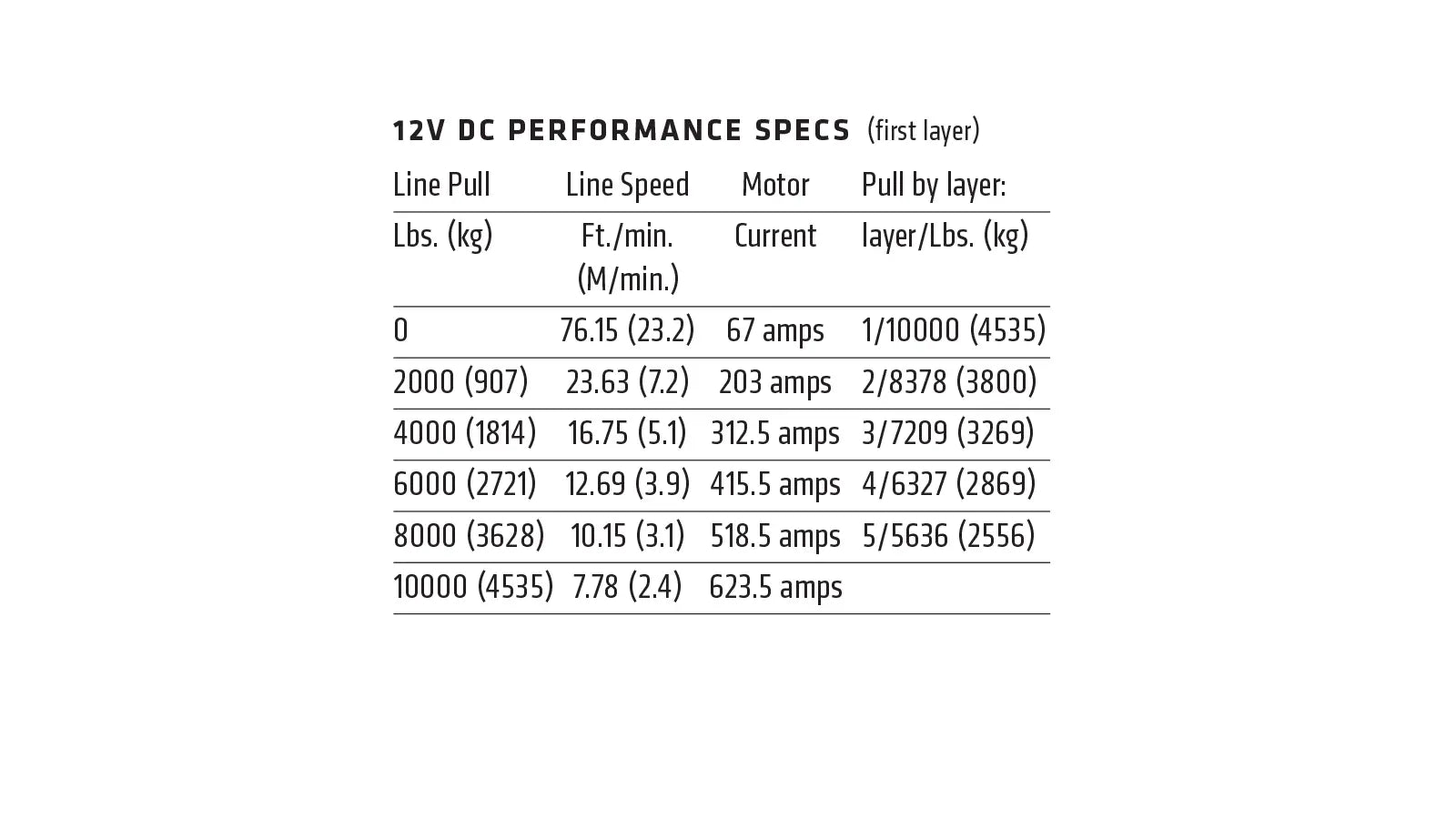

Specifications

Cable MaterialMetal Rope
Mount TypeFixed Mount
Rated Line Pull10000 LB
Requires MountYes
Voltage12V

Product Literature

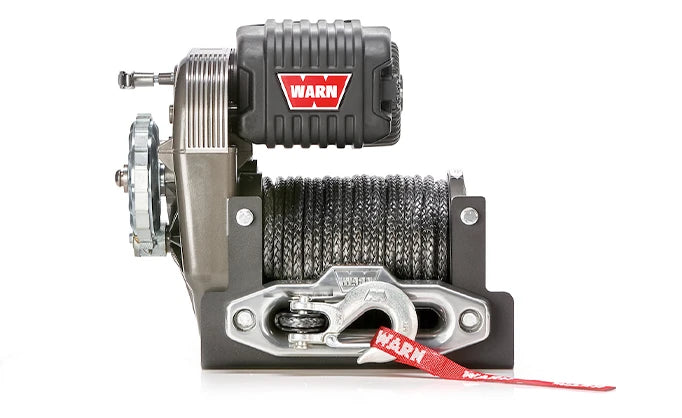

M8274 Winch LineUp

WHY THE M8274 IS A BELOVED MODERN CLASSIC -

Introduced in 1974 as a direct descendant of the original 1959 WARN Belleview — the first electric winch made for vehicles — the M8274 has earned a passionate cult following over five decades. Its still-unmatched no-load line speed, long rope capacity, and indestructible construction appeal to everyone from 4WD enthusiasts and off-road racers to hunters and ranchers. The iconic upright design, spur gear train, and exterior brake are unmistakable. More than a tool, the M8274 is a badge of honor and a piece of off-road history — a modern classic built to last through countless adventures.

LEARN MORE →
M8274 Winch LineUp
10,000 lbs
Capacity
Vertical
Spool Orientation
Steel or Synthetic
Rope Options
Oregon, USA
Assembly
