R25

PART NUMBER: 110025

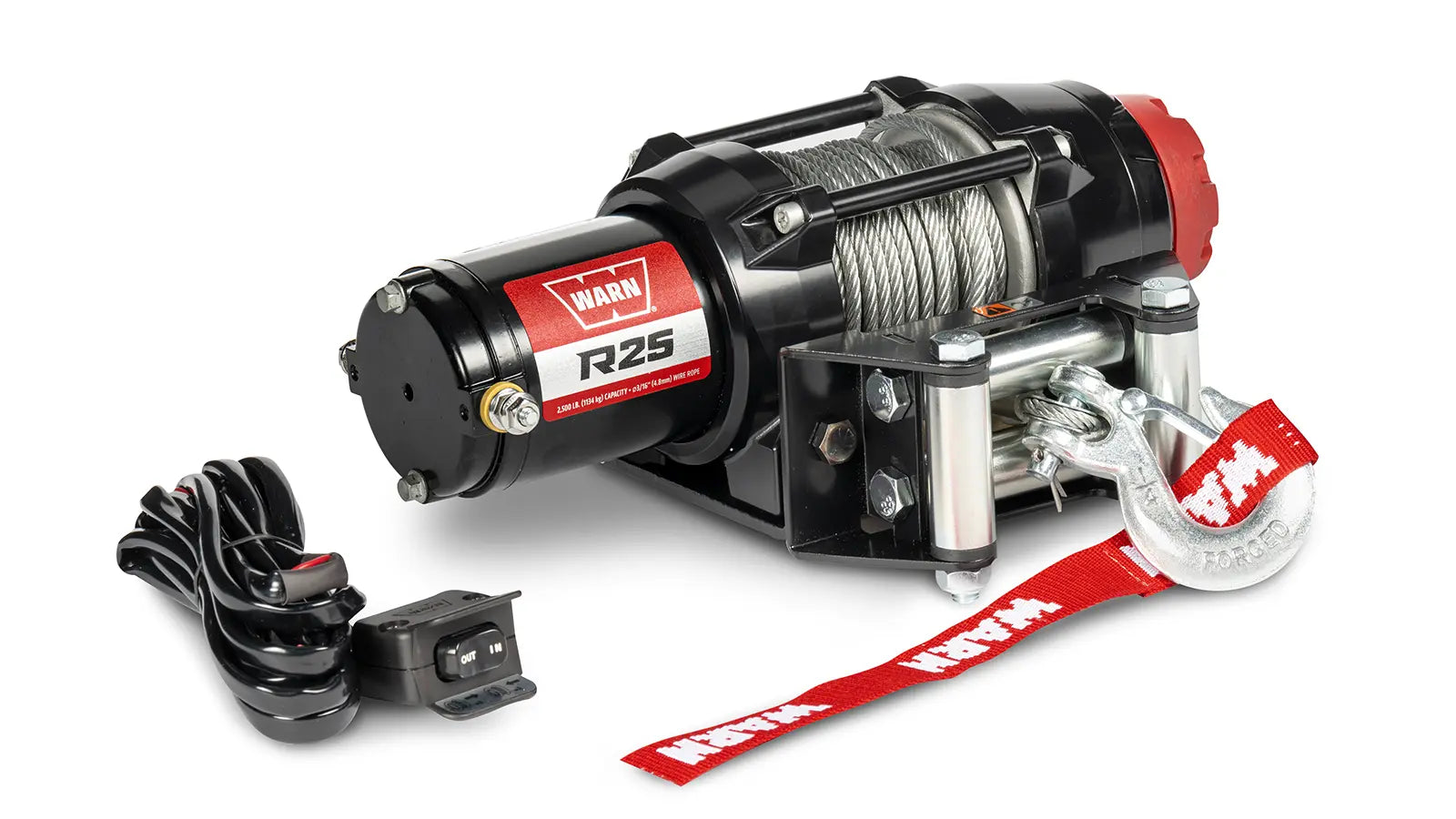

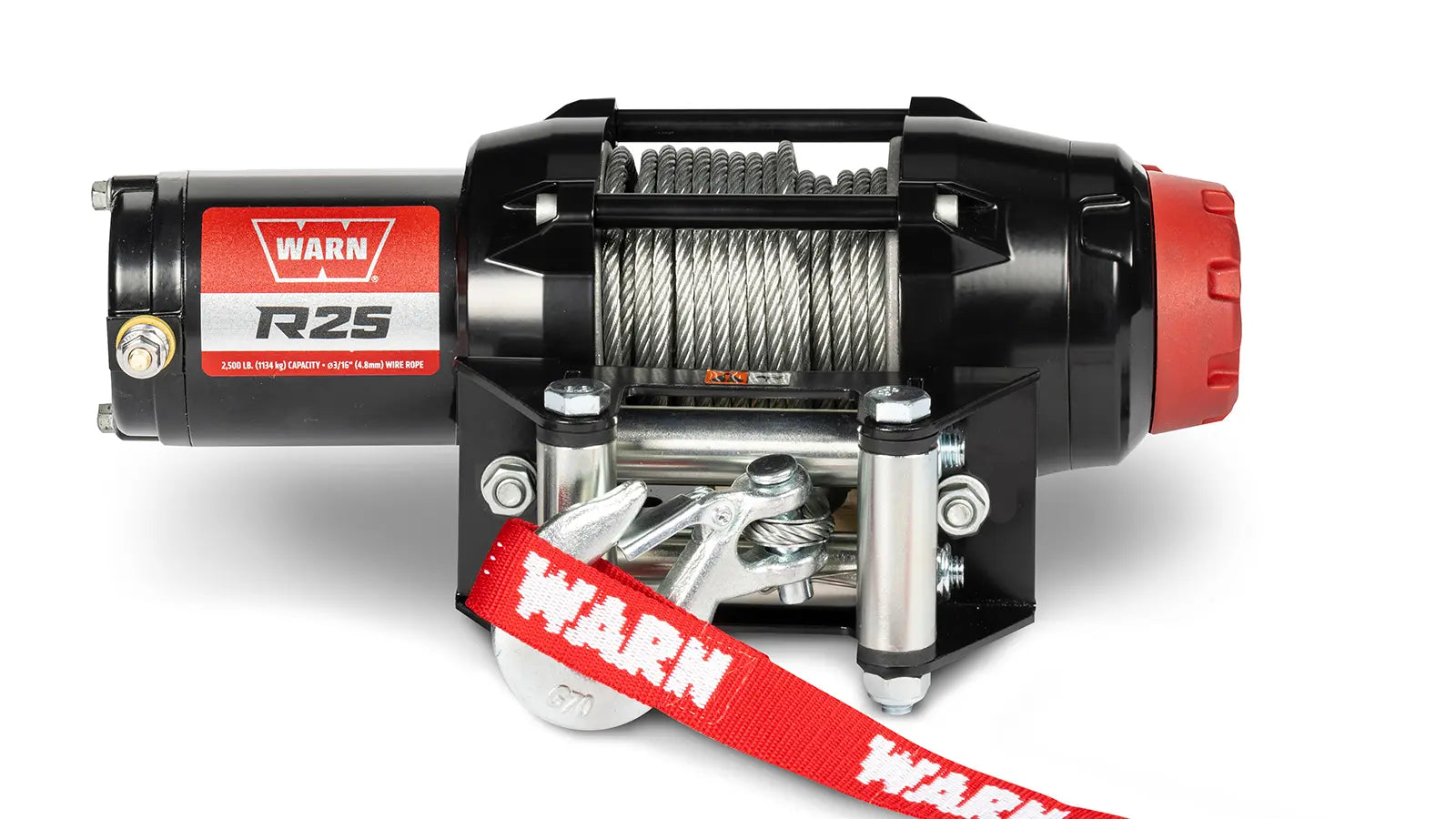

This powersports winch is equipped with 50-ft. of 3/16-in. steel rope, a roller fairlead, and a handlebar-mounted rocker control switch. With a 2,500 lb. capacity, this winch is great for quads or smaller ATVs. With the WARN R-Series, you simply get more. More waterproofing, more capacity, more metal, and a more comprehensive warranty.

Regular price $279.99
Sale price $279.99 Regular price
Winch Comparison ➜
Fast delivery truck
Want Free & Faster Shipping?

With Ship-To-Store, we offer thousands of products shipped to your local store fast and free with next-day delivery*. Learn More

Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle. Please visit our Mounting & Protection category for available options.
California Prop 65:
California Prop 65 Warning
This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov

Description

WARN R-Series Powersports Winches offer reliable performance from a name you can trust. With capacities ranging from 2,500 lbs. to 6,000 lbs.—our highest capacity powersports winch ever—we offer something for every ATV, UTV, or even something as small as a pickup or SUV. R-Series has the features you want, the power you need, and a price that won’t leave you stuck looking at lesser brands. Engineered in-house at our Oregon headquarters, these winches are built to Warn’s specs and put through rigorous testing and quality control measures. All-metal gear trains, IP67 waterproofing, a compact design, and steel or synthetic rope make R-Series the top standard-duty powersports winches on the market. After all, if they’re going to wear a red WARN W, they must be better than good, they need to be great.

  • Engineered in Oregon, built to WARN specs, and thoroughly tested for quality control
  • IP67 waterproofing keeps the water, dirt, and debris out and reliability in
  • Highly efficient and strong all-metal three-stage planetary gear train is built to last
  • The compact design is easy to install
  • Reliable automatic load-holding brake for excellent control
  • Superior 5-year mechanical warranty, 3-year electrical warranty, supported by a US-based customer service team
  • 2,500 lb. capacity is perfect for ATVs
  • Includes 50-ft. of durable 3/16-in. steel rope and a roller fairlead
  • Handlebar-mounted rocker control switch is simple to operate

vehicle Compatibility List

Specifications

Brake ActivationAutomatic
Brake TypeAutomatic
Cable Diameter3/16 IN
Cable Length50 FT
Cable MaterialMetal Rope
D Shackle IncludedNo
Fairlead TypeRoller
Free SpoolingYes
GearingSplit differential
Length12.4 IN
Maximum Height4.5 IN
Maximum Width4.0 IN
Motor TypePermanent Magnet
Motor Voltage12V
Mount TypeFixed Mount
Mounting Bolt Pattern Length4.87 IN
Mounting Bolt Pattern Width3 IN
Mounting Hole Quantity4
Power OutYes
Rated Line Pull2500 LB
Requires MountYes
TypeElectric
Voltage12V

Product Literature

R-Series Winch LineUp

THE NAME YOU TRUST, THE PRICE YOU DEMAND.

With the WARN R-Series, you simply get more. More waterproofing, more capacity, more metal, and a more comprehensive warranty. When you compare the specs, you’ll see that our dominance is in the details.

Engineered in-house at our Oregon headquarters, these winches are built to Warn’s specs and put through rigorous testing and quality control measures. All-metal gear trains, IP67 waterproofing, a compact design, and steel or synthetic rope make R-Series the top standard-duty powersports winches on the market. After all, if they’re going to wear a red WARN W, they must be better than good, they need to be great.

LEARN MORE →
R-Series Winch LineUp
2,500–6,000 lb
Capacity
IP67
Waterproof
5-yr / 3-yr
Warranty
