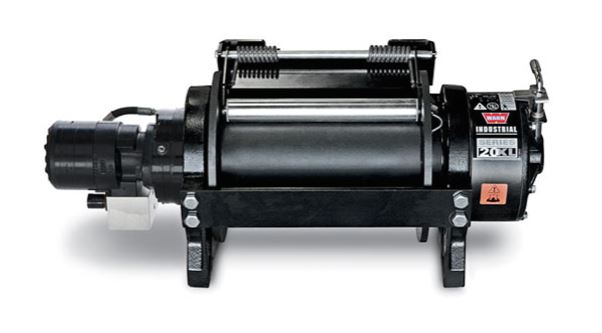

Series 20XL Low Pressure Standard Drum Air Clutch

PART NUMBER: 78970

Vehicle Mounted; Industrial Winch; Low Pressure Hydraulic; Standard Drum; Air Clutch; 20000 Pound Line Pull Capacity; Without Wire; Without Fairlead; Planetary Gear Drive

Winch Comparison ➜

This product isn't available for purchase online, please contact
WARN customer service to find a dealer.

Fast delivery truck
Want Free & Faster Shipping?

With Ship-To-Store, we offer thousands of products shipped to your local store fast and free with next-day delivery*. Learn More

Designed, engineered, and assembled in the USA
California Prop 65:
California Prop 65 Warning
This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov

Description

For heavy duty Winching needs, Warn Winch is a champion workhorse. Big torque, power and quick no load retrieval speed is what Warn delivers

  • For hydraulic winching applications, no product performs better than a Warn Industrial winch. P
  • 11.9 Cubic-Inch High-Performance Motor With 20,000 Pounds. Capacity-Great For Wreckers, Trailer
  • Spring-Applied Disc Brake Designed To Hold The Full-Rated Load
  • Hardened Aircraft Grade Nickel Chromalloy Two Stage Planetary Gear Train For Speed And Reliabil
  • Standard Air Clutch With Manual Clutch Option
  • Available In Short- And Long-Drum Versions
  • Limited lifetime warranty for mechanical components and five (5) year warranty on electrical components

vehicle Compatibility List

Specifications

Brake ActivationAutomatic
Cable LengthN/A FT
Cable MaterialNot Included
Clutch TypeAir
Drum Length8
Fairlead TypeNot Included
Gear RatioN/A
Motor Capacity11.9
Motor TypeHydraulic
Motor VoltageN/A
Rated Line Pull20000 LB
RotationBi-directional
Standards ComplianceMeets SAE J706 and CE specifications
TypeHydraulic
