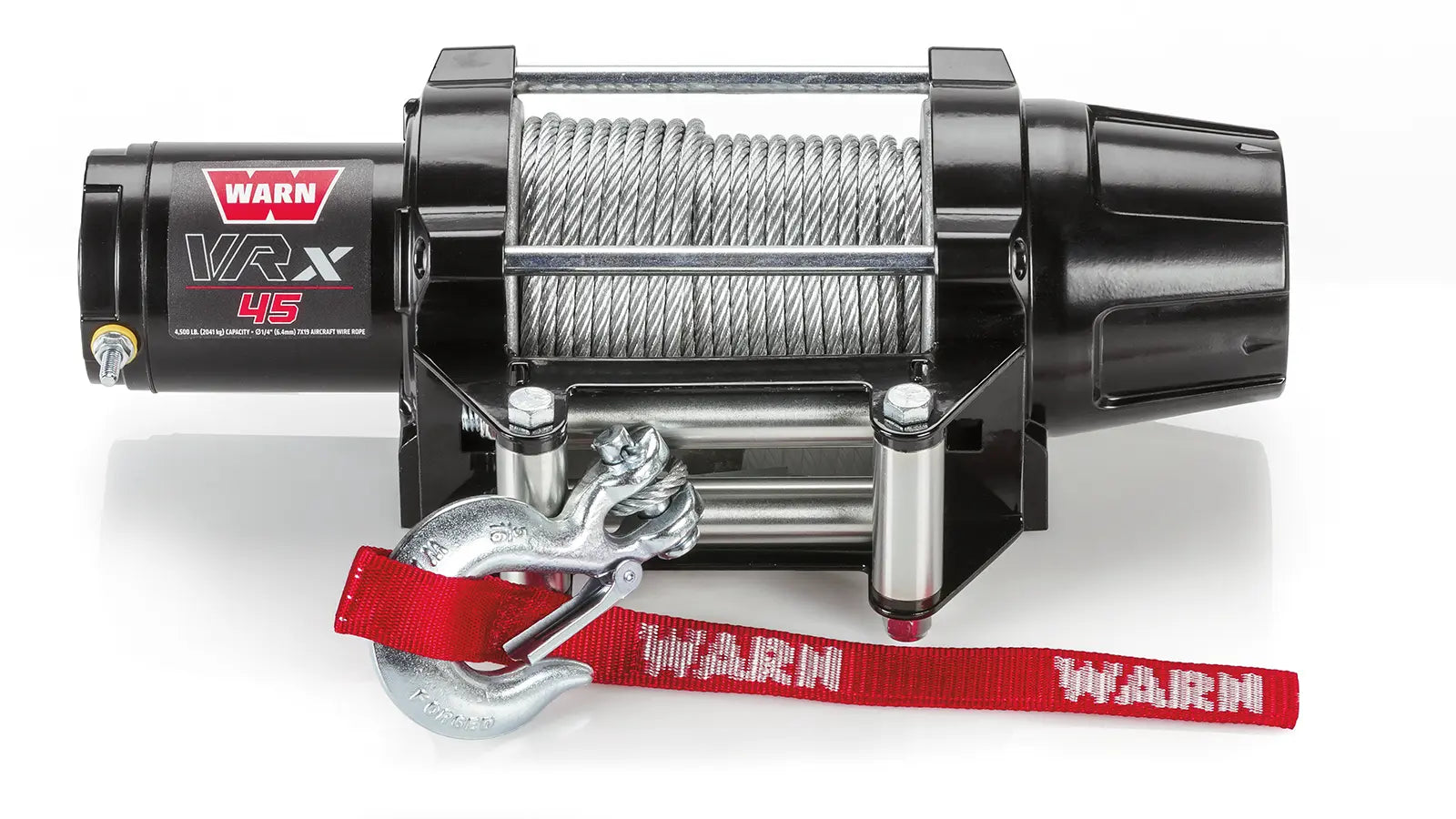

VRX 45

PART NUMBER: 101045

Whether you’re on the job or on the trail, the 4,500 lb. capacity WARN VRX 45 winch works as hard as you do and is great for UTVs. Thanks to all-metal construction, a clutch based on the legendary WARN 4WD hublock design, an ultra-durable all-metal gear train, and full IP68 waterproof sealing to take on the elements, the VRX is a true workhorse. Plus, it's designed, engineered, and assembled in the USA.

Regular price $589.99
Sale price $589.99 Regular price
Winch Comparison ➜
Fast delivery truck
Want Free & Faster Shipping?

With Ship-To-Store, we offer thousands of products shipped to your local store fast and free with next-day delivery*. Learn More

Designed, engineered, and assembled in the USA
Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle. Please visit our Mounting & Protection category for available options.
California Prop 65:
California Prop 65 Warning
This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov

Description

Whether you’re on the job or on the trail, the 4,500 lb. capacity WARN VRX 45 winch works as hard as you do and is great for UTVs. Thanks to all-metal construction, a clutch based on the legendary WARN 4WD hublock design, an ultra-durable all-metal gear train, and full IP68 waterproof sealing to take on the elements, the VRX is true workhorse. Plus, it's designed, engineered, and assembled in the USA.

Whether you’re looking for 4 wheeler winches, side by side winches, or something in between, the WARN VRX offers the best combination of performance and value in the powersports market. With capacities ranging from 2,500 to 4,500 lbs., IP68 waterproof construction, these winches are ready to work, whether that’s pulling a stuck quad, lifting an ATV snow plow, or moving something in between. Part winch, part workhorse, 100% Warn.

  • VRX 45 includes 50’ of durable ¼” steel rope, roller fairlead, and zinc-plated hook
  • Huge 4,500 lb. capacity available for the hardest-working UTVs
  • Load-holding brake for great control
  • Durable all-metal construction
  • Clutch design is based on legendary WARN 4WD hub lock know-how and is easy to use
  • Complete IP68 waterproof sealing keeps all the elements out and reliability in
  • Semi-gloss back powder-coated finish and stainless steel fasteners for corrosion resistance
  • Smooth and reliable all-metal three-stage planetary gear train

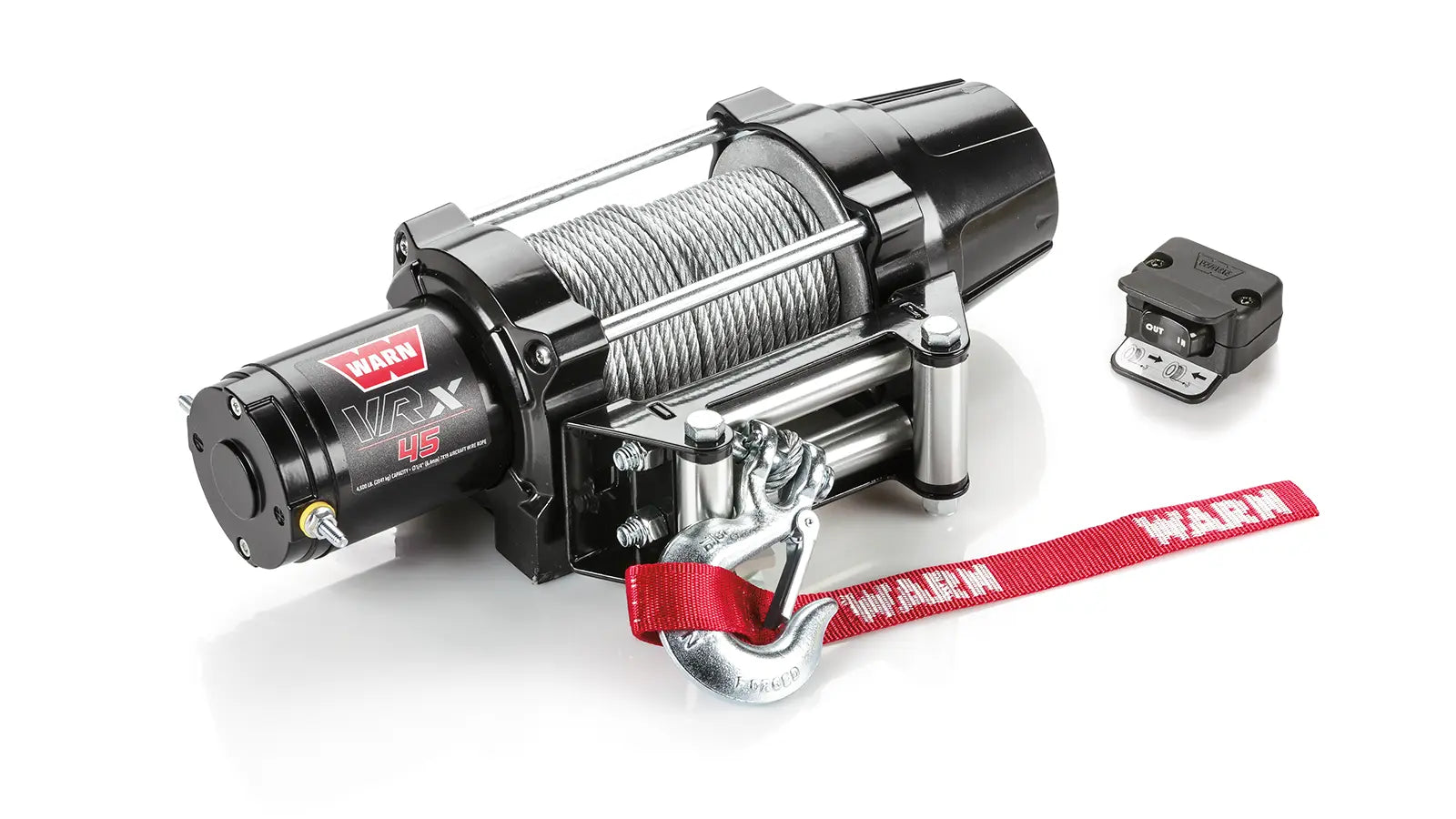

  • Dash-mounted rocker control and corded remote for multiple control options
  • Limited lifetime warranty (mechanical), 3 year warranty (electrical)

vehicle Compatibility List

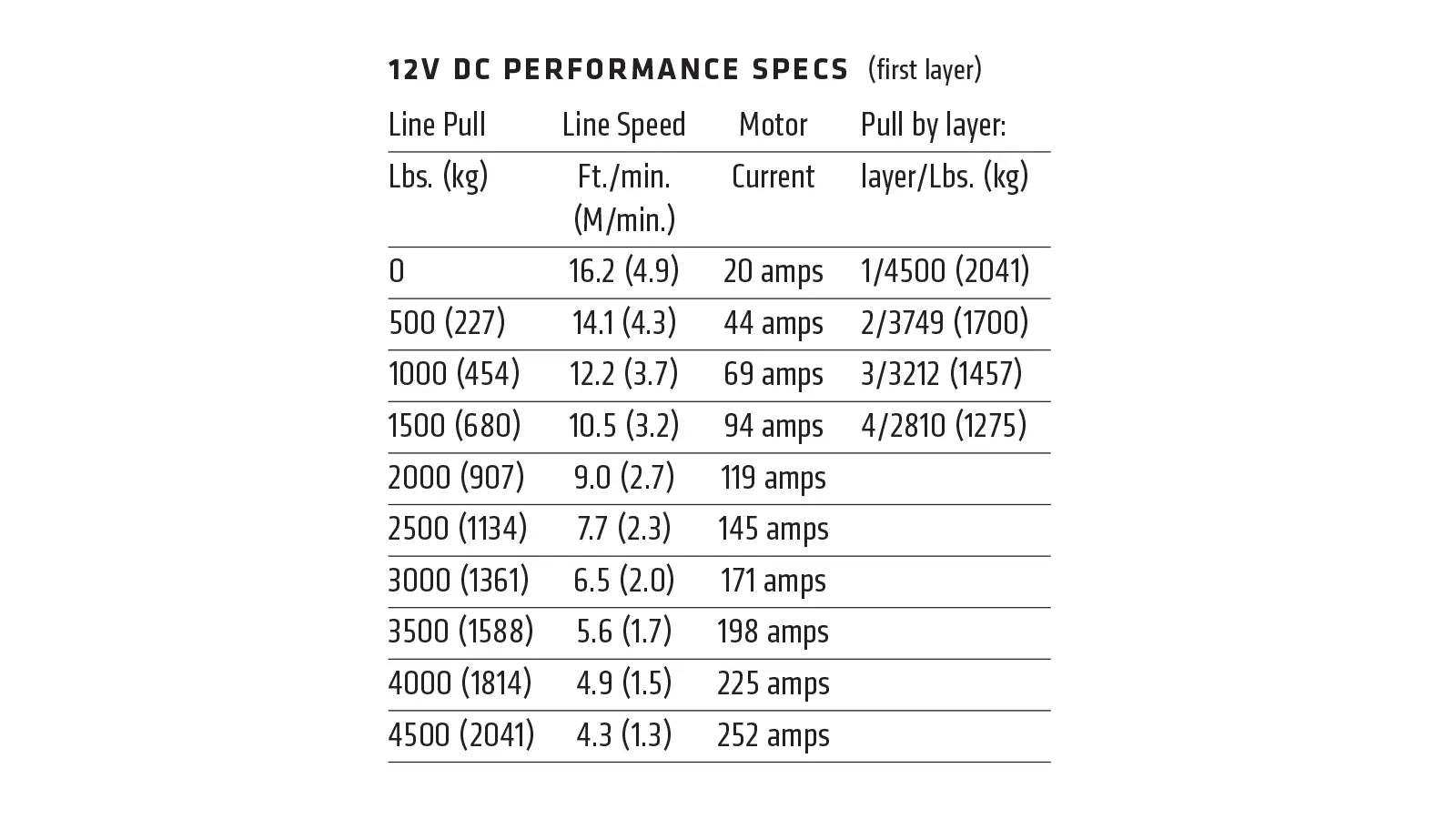

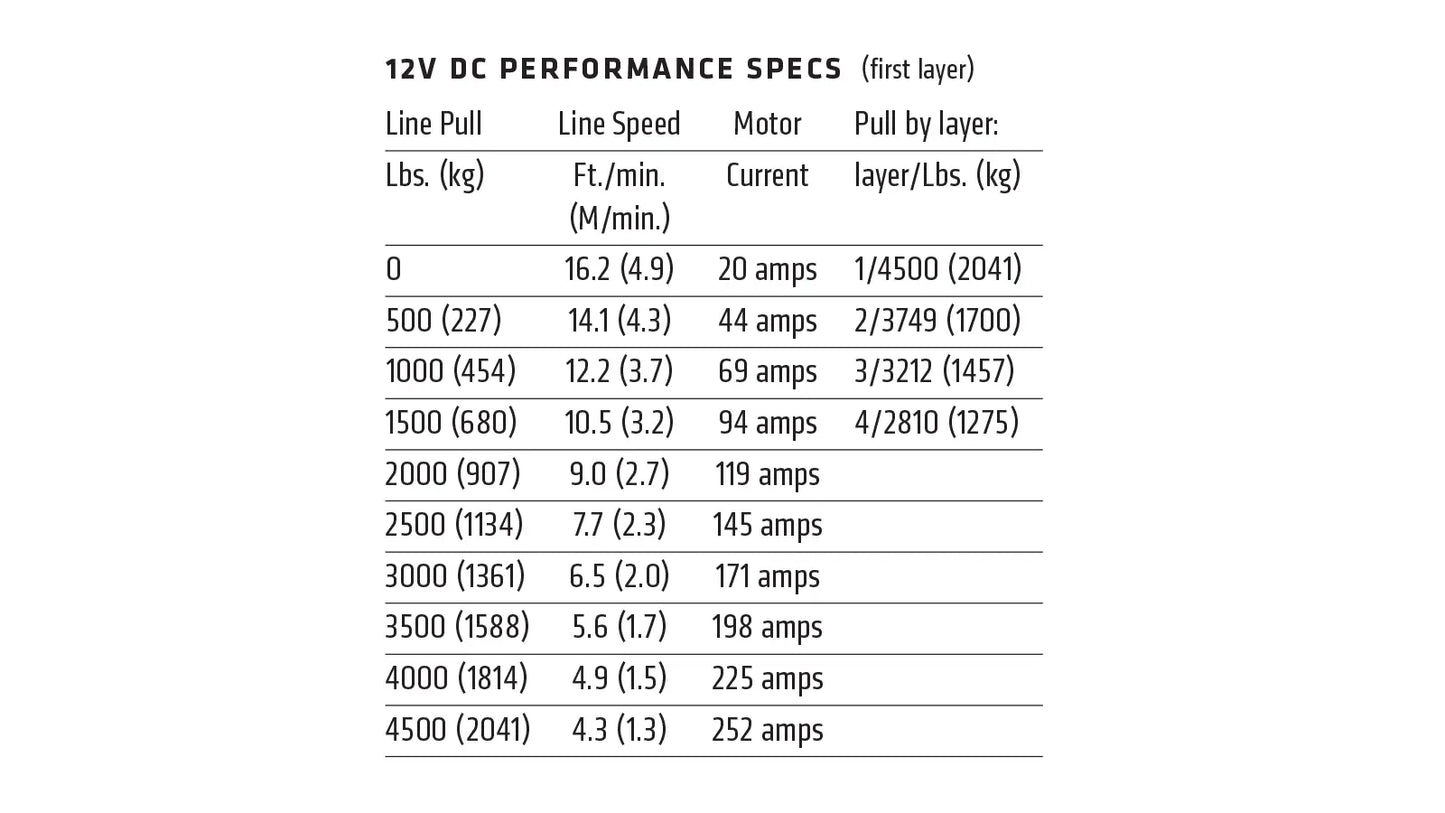

Specifications

Brake ActivationAutomatic
Brake TypeDrum
Cable Diameter1/4 IN
Cable Length50 FT
Cable MaterialMetal Rope
D Shackle IncludedNo
Fairlead TypeRoller
Free SpoolingYes
Gear Ratio198:1
Gearing3-Stage Planetary
Length15
Maximum Height4.7 IN
Maximum Width4.7 IN
Motor TypePermanent Magnet
Motor Voltage12V
Mount TypeFixed Mount

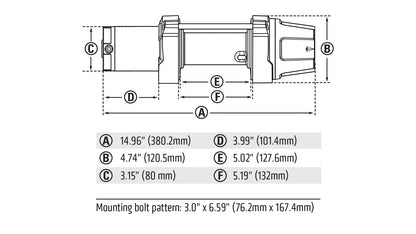

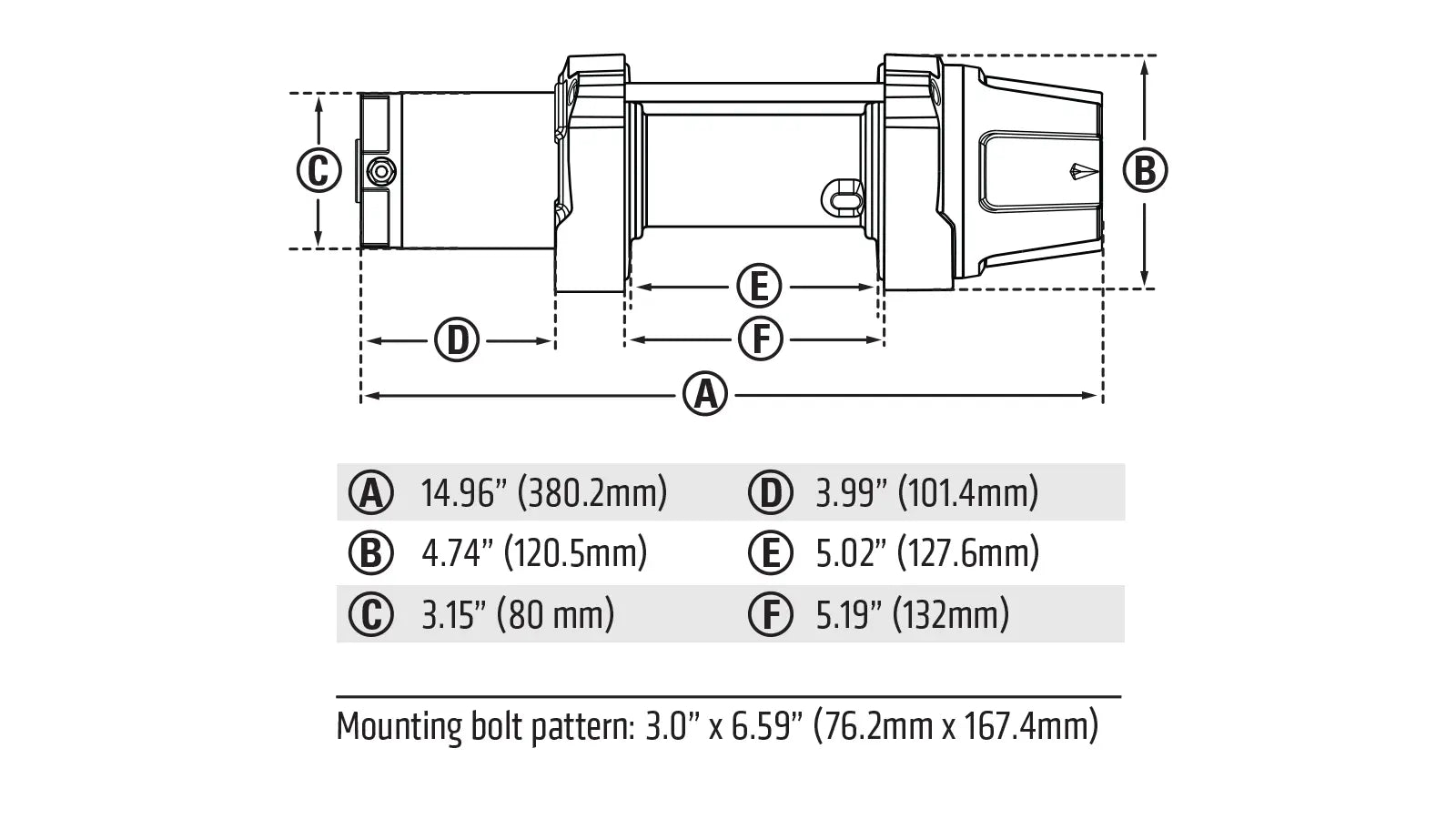

Mounting Bolt Pattern Length6.59 IN
Mounting Bolt Pattern Width3 IN
Mounting Hole Quantity4
Power OutYes
Rated Line Pull4500 LB
Requires MountYes
TypeElectric
Voltage12V

Product Literature

VRX Winch LineUp

ALL-NEW LINEUP TAKES PERFORMANCE AND VALUE TO LEVELS NEVER BEFORE SEEN IN A POWERSPORTS WINCH.

Whether you’re on the job or on the trail, WARN VRX winches work as hard as you do thanks to all-metal construction, a new clutch based on the legendary WARN 4WD hublock design, an ultra-durable all-metal gear train, and full waterproof sealing to take on the elements. VRX is available in 2,500, 3,500, and 4,500 lb. capacities and is perfect for a variety of vehicles and any job—big or small

LEARN MORE →
VRX Winch LineUp
2,500–4,500 lb
Capacity
IP68/IP69K
Waterproof
Ltd. Lifetime
Warranty
