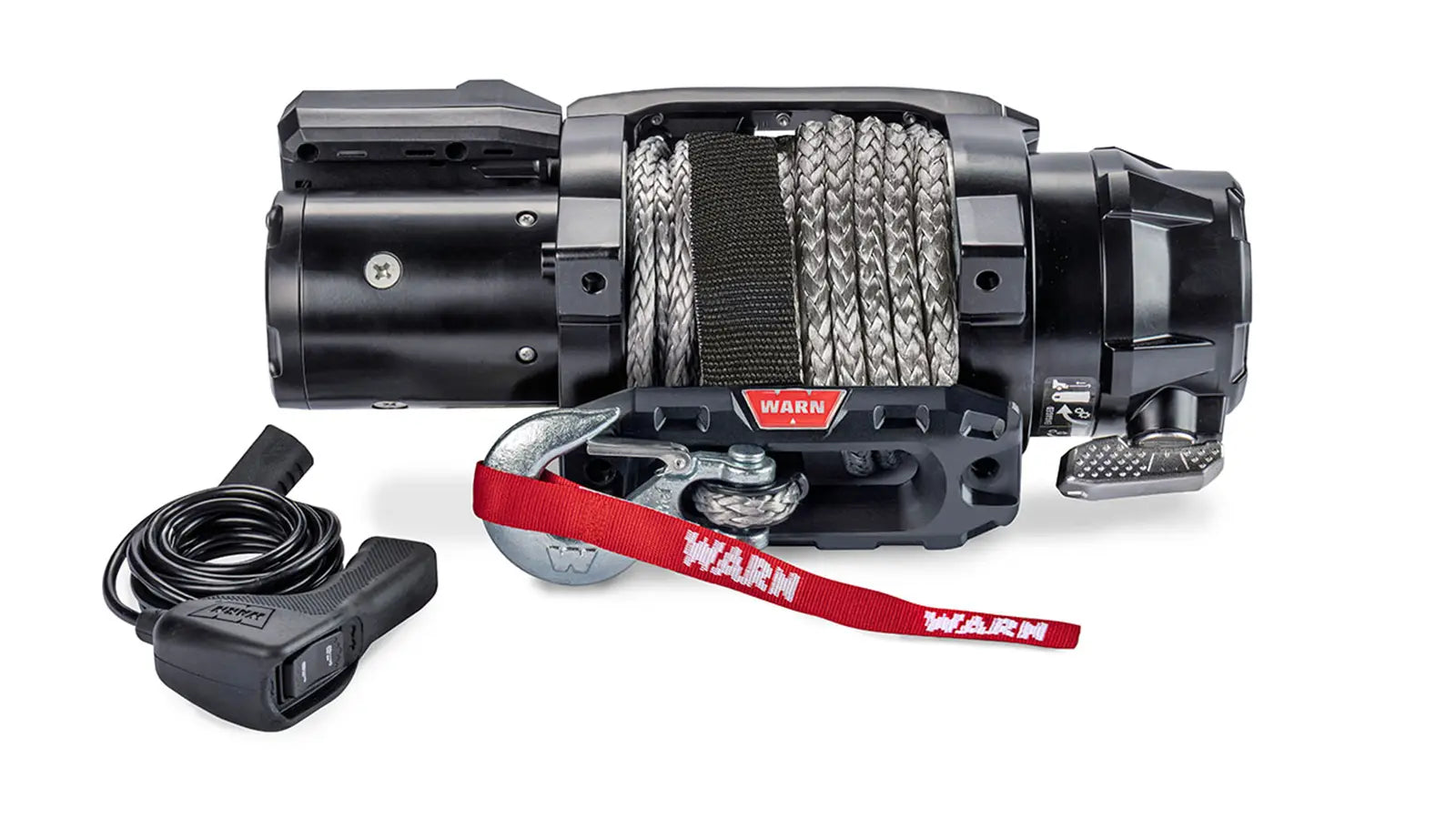

ZEON XC 12-S Winch for WARN Fully Hidden Kits

PART NUMBER: 112356

ZEON XC 12-S for Hidden Winch Mounts delivers all the performance of ZEON XC in a more compact package, making it the perfect winch for WARN's line of Fully Hidden Winch Mounts.

Regular price $1,749.99
Sale price $1,749.99 Regular price
Winch Comparison ➜
Fast delivery truck
Want Free & Faster Shipping?

With Ship-To-Store, we offer thousands of products shipped to your local store fast and free with next-day delivery*. Learn More

Designed, engineered, and assembled in the USA
Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle. Please visit our Mounting & Protection category for available options.
California Prop 65:
California Prop 65 Warning
This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov

Description

If you're buying a WARN Fully Hidden Kit, this is the winch to use. The ZEON XC 12-S For Fully Hidden Kit offers 12,000 lbs. of pulling capacity in a narrow, short-drum configuration. It offers many of the features of the ZEON XD, such as IP68/IP69k waterproofing and excellent performance and efficiency, but with less size, weight, and a low-profile control box. Plus, it's designed, engineered, and assembled in the USA.

Based on the proven foundation of ZEON XD, the ZEON XC delivers ultimate performance in a low-profile, compact package, giving users greater flexibility for mounting applications. The ZEON XC offers the unmatched capability with best-in-class line speed and capacity, superior durability, and the industry’s leading warranty. Every ZEON XC is meticulously engineered, rigorously tested, and expertly assembled in Clackamas, Oregon, USA.

  • Short drum version of ZEON XC 12-S with the transmission rotated forward 144 degrees

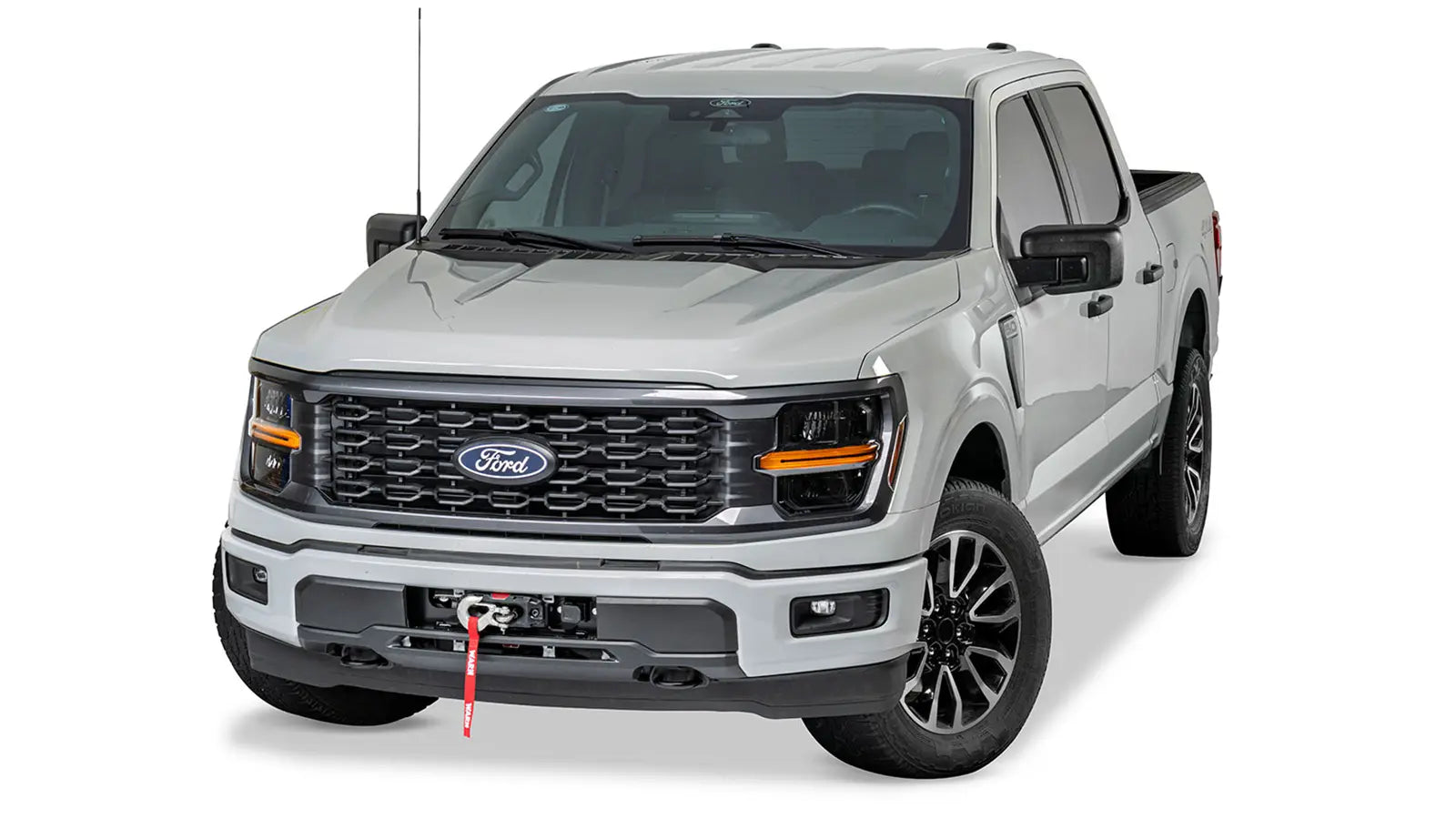

  • Small size makes it the perfect winch for the WARN Fully Hidden Kit winch mounts
  • Comes with 6' remote socket relocation harness, allowing the remote socket to stay accessible even when the winch is hidden behind the bumper
  • Compact, low profile design: the entire control pack sits below the top of the tie plate, making it possible to mount this winch in the tightest applications
  • Ultimate performance and durability: best-in-class line speed, superior durability, and pulling capacity
  • Fully waterproof: IP68 submersion and IP69K spray rated achieved through the use of automotive-grade O-ring seals
  • OEM grade corrosion resistance: OE-grade paint and fasteners increase resistance to fading and corrosion, ensuring ZEON XP stays pristine for years to come
  • 70' of lightweight, easy-to-handle 3/8" Spydura Pro synthetic rope and a large-radius black aluminum hawse fairlead
  • Industry-leading warranty: Limited lifetime mechanical, seven year electrical—all backed by a global service network.
  • Designed, engineered, and assembled in the USA

vehicle Compatibility List

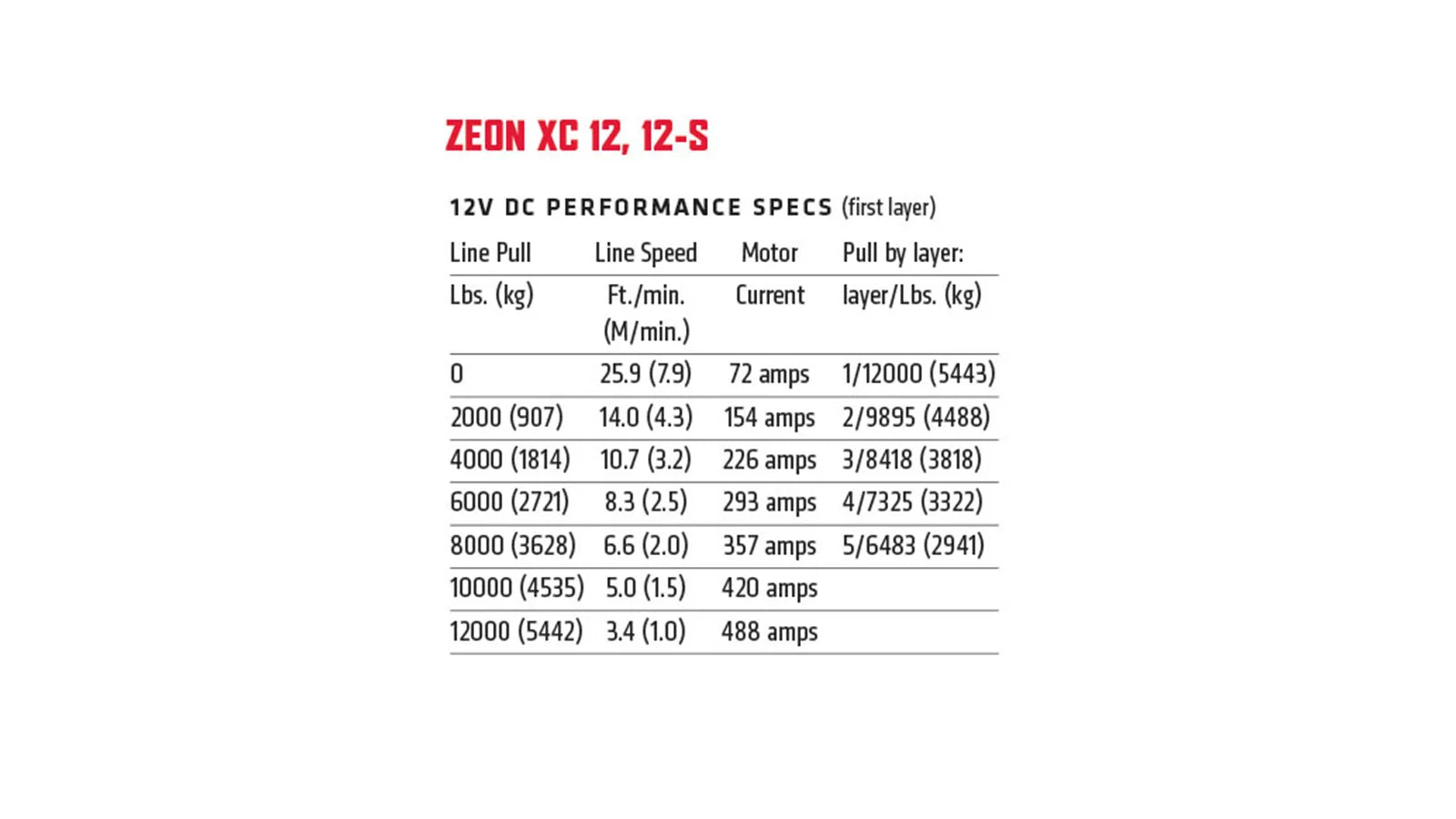

Specifications

Brake ActivationAutomatic
Brake TypeCone
Cable Diameter3/8 IN
Cable Length70 FT
Cable MaterialSynthetic Rope
ColorBlack
D Shackle IncludedNo
Fairlead TypeHawse
Free SpoolingYes
Gear Ratio176:1
Gearing3-Stage Planetary
Hand SaverYes
Length19.5 IN
Maximum Height7.8 IN
Maximum Width6.7 IN
Motor TypeSeries Wound
Motor Voltage12V
Mount TypeFixed Mount
Mounting Bolt Pattern Length4.5 IN
Mounting Bolt Pattern Width10 IN
Mounting Hole Quantity4
Power OutYes
Rated Line Pull12000 LB
Remote IncludedYes
Remote TypeWire
Requires MountYes
Solenoid TypeContactor
Tree SaverNo
TypeElectric
Voltage12V
Winch RatingElectric

Product Literature

ZEON XC Winch LineUp

Built on the proven ZEON XD platform, the ZEON XC delivers top-tier performance in a low-profile, compact package — offering greater mounting flexibility, best-in-class line speed and capacity, superior durability, and the industry's leading warranty.

LEARN MORE →
ZEON XC Winch LineUp
10K–14K lbs
Capacity Range
IP68 / IP69K
Waterproof Rating
7.8" low
Profile Height
Oregon, USA
Assembly
