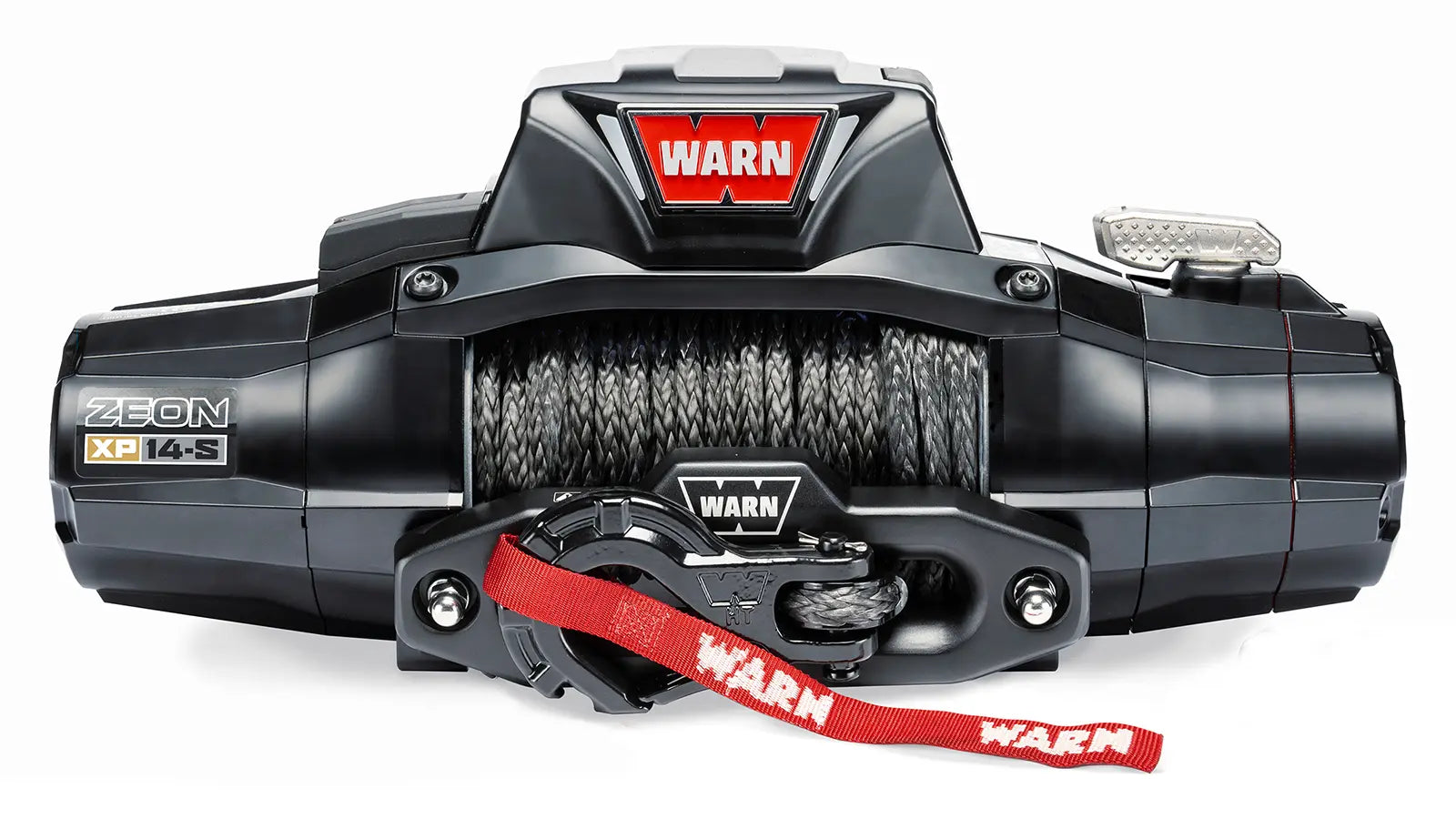

ZEON XP 14-S

PART NUMBER: 110140

WARN ZEON XP 14-S ultimate performance recovery winch. Dual controls and remote activated clutch provide freedom to winch however and wherever needed. Dynamic lighting and real-time feedback increase awareness of whats

Regular price $3,352.93
Sale price $3,352.93 Regular price
Winch Comparison ➜
Fast delivery truck
Want Free & Faster Shipping?

With Ship-To-Store, we offer thousands of products shipped to your local store fast and free with next-day delivery*. Learn More

Designed, engineered, and assembled in the USA
Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle. Please visit our Mounting & Protection category for available options.
California Prop 65:
California Prop 65 Warning
This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov

Description

The ZEON XP 14-S is our highest-capacity ZEON winch ever. It offers redefined levels of ultimate performance in a massive 14,000 lb. capacity. This is the winch big 3/4-ton or 1-ton truck and 4x4 owners need for when there's no room for uncertainty. It's the most reliable, durable, and easiest-to-use winch on the market. With useful, versatile, and powerful features, ZEON XP is Warn's top-of-the-line winch. Plus, it's designed, engineered, and assembled in the USA.

  • ZEON XP features new controls and feedback to allow users to push the limits and work their winch with confidence. ZEON XP offers unmatched performance with best-in-class line speed and capacity, superior durability, and the industry's leading warranty. Every ZEON XP is meticulously engineered, rigorously tested, and expertly assembled in Clackamas, Oregon, USA.

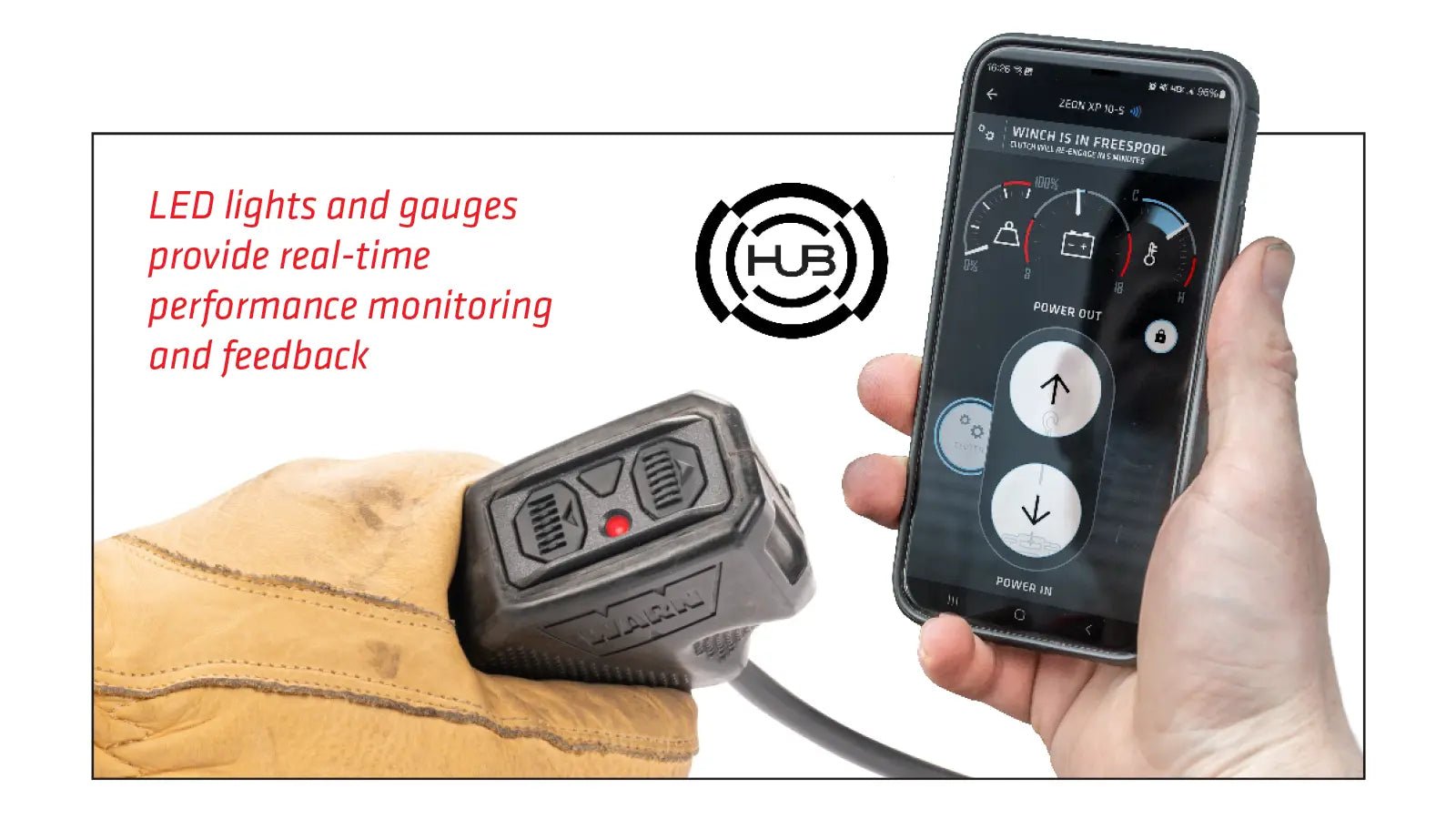

  • All-new controls give real-time, live feedback on winch motor temperature, load, and vehicle battery condition, allowing you to be more aware of what's happening with your winch and the vehicle recovery
  • Dual controls; handheld corded remote plus built-in HUB Wireless Control give you the freedom to control the winch however and wherever you want
  • Remote activated clutch with manual backup, makes the winch easier and faster to use

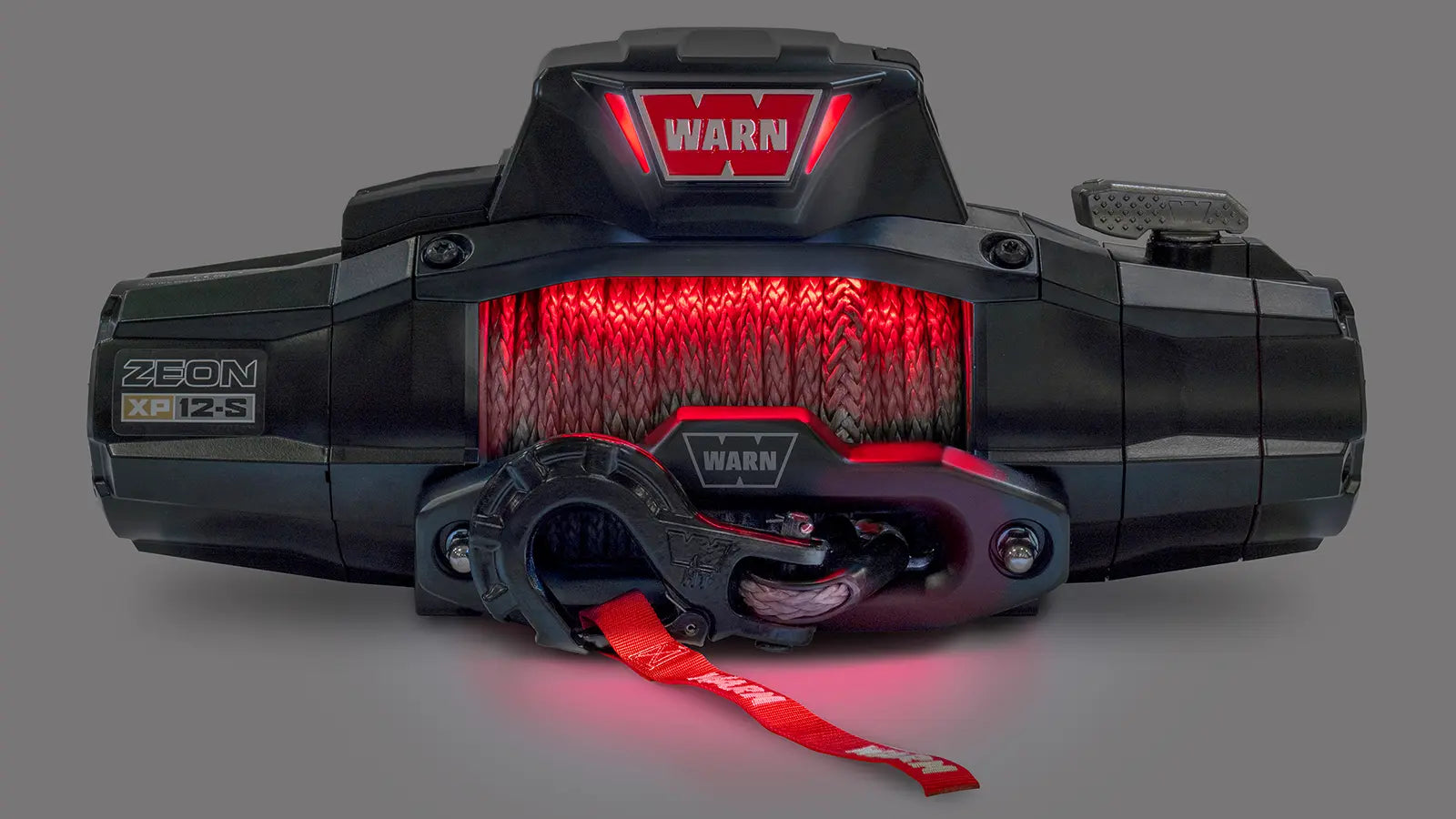

  • Dynamic lighting: drum and accent lights change color based on winch status

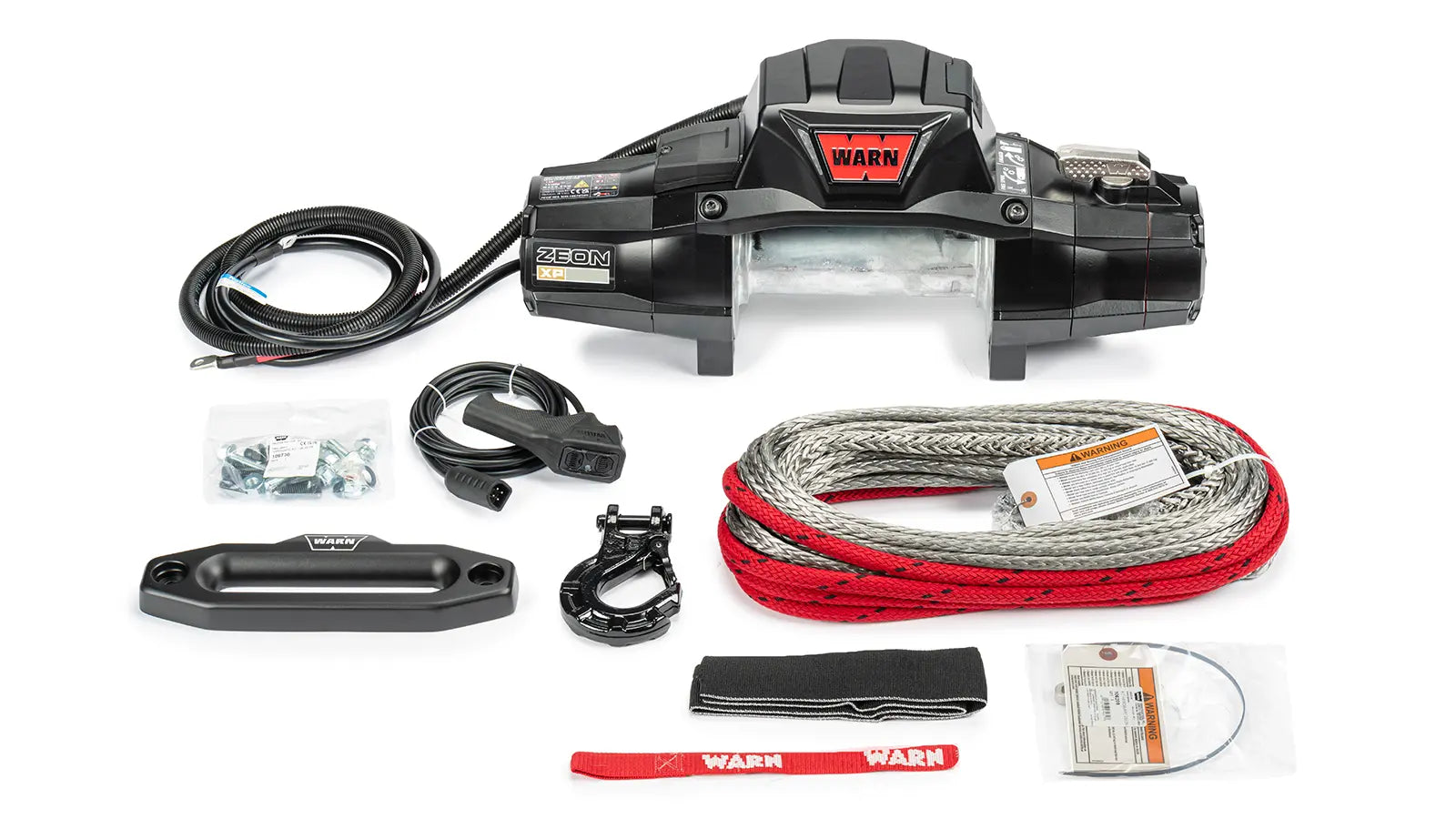

  • Includes 80' of lightweight, easy-to-handle 3/8" Spydura Pro synthetic rope with a large-radius black forged-aluminum hawse fairlead
  • Ultra-reliable waterproof construction, IP68 submersion and IP69K spray rated
  • Designed, engineered, and assembled in the USA
  • Industry-leading warranty: Limited lifetime mechanical, seven year electrical all backed by a global service network.

vehicle Compatibility List

Specifications

Brake ActivationAutomatic
Brake TypeCone
Cable Diameter3/8 IN
Cable Length80 FT
Cable MaterialSynthetic Rope
ColorBlack
D Shackle IncludedNo
Fairlead TypeHawse
Free SpoolingYes
Gear Ratio213:1

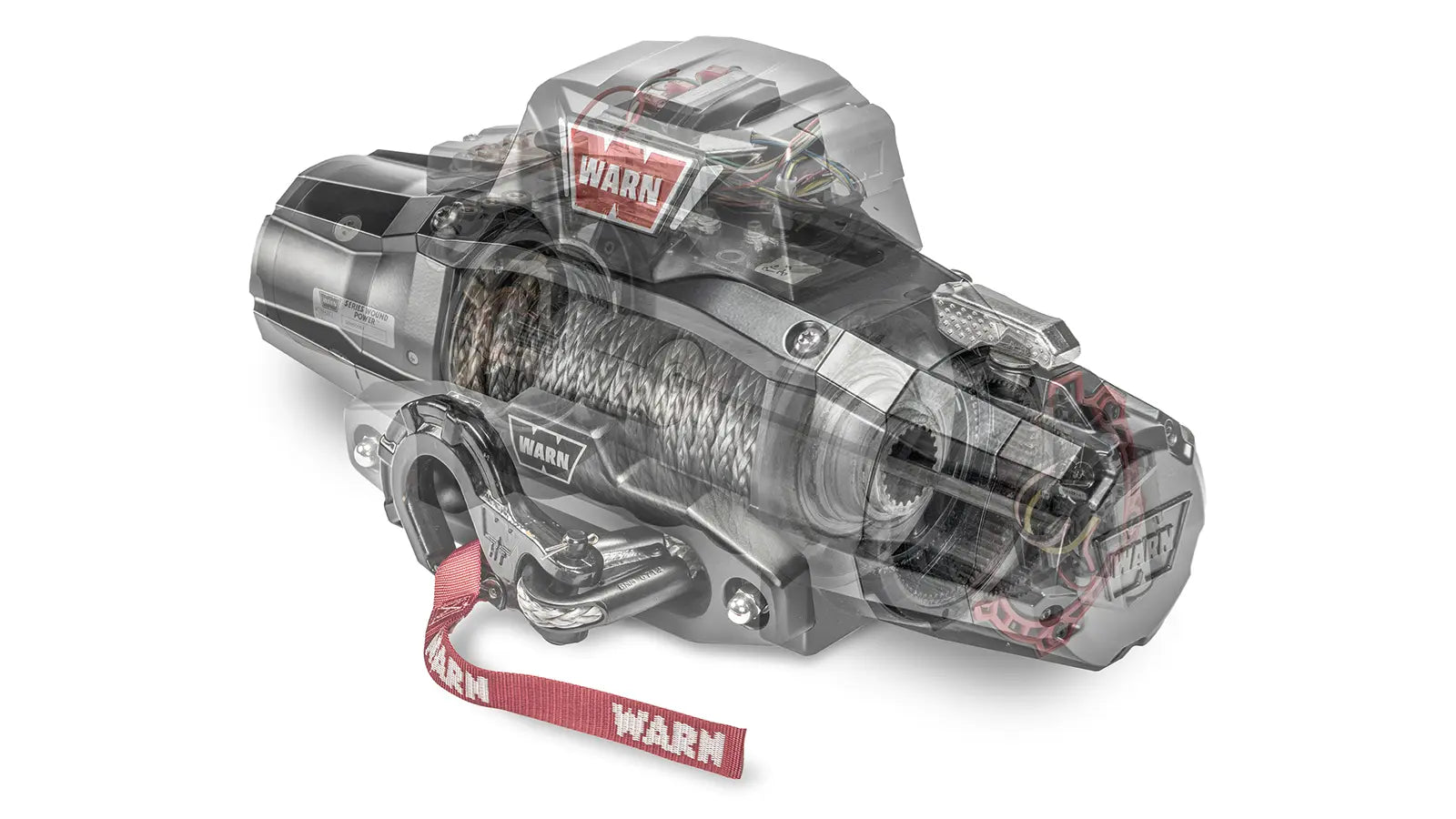

Gearing3-Stage Planetary

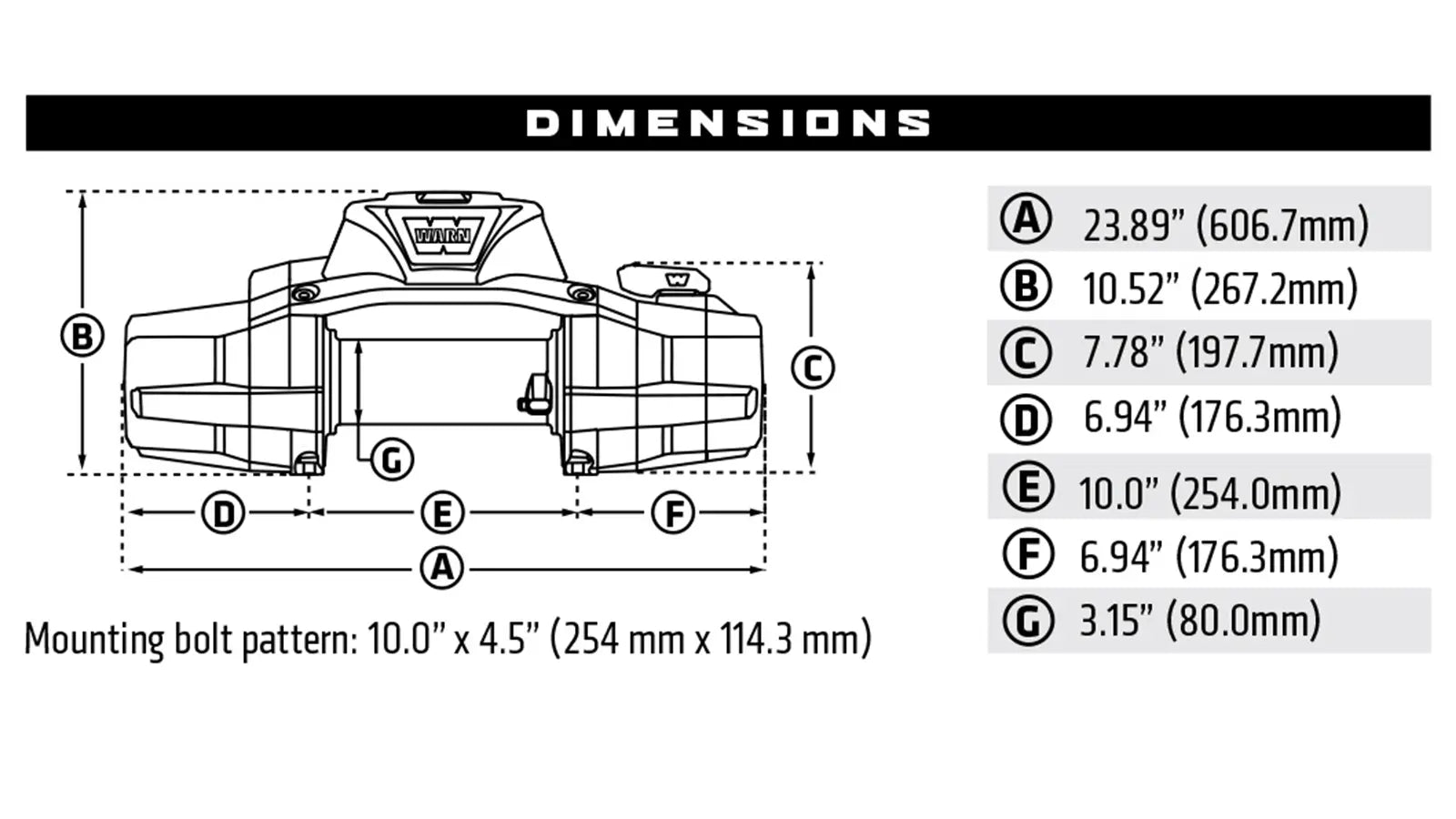

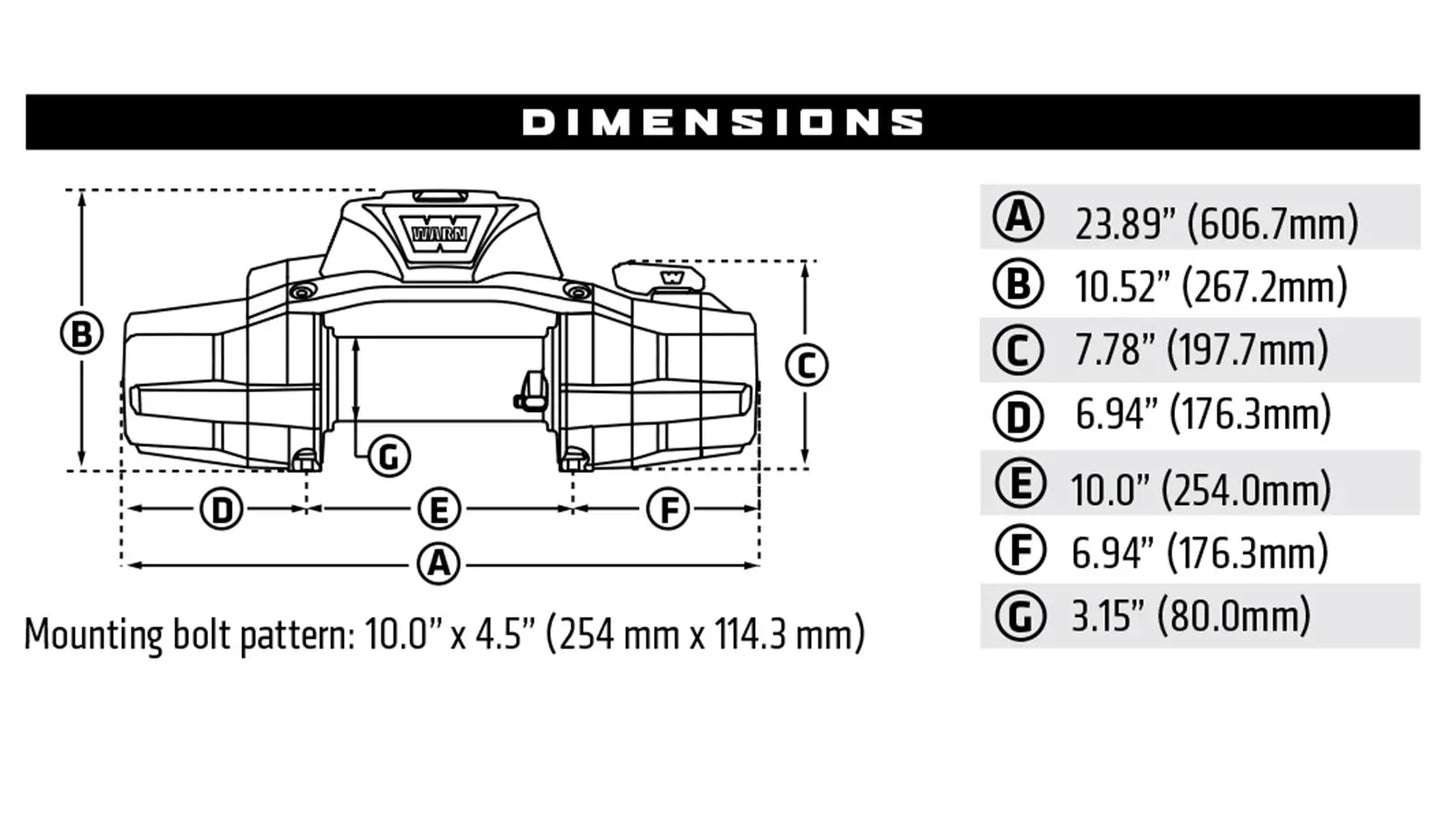

Length23.9
Maximum Height10.5 IN
Maximum Width7.1 IN
Motor TypeSeries Wound
Motor Voltage12V
Mount TypeFixed Mount
Mounting Bolt Pattern Length4.5 IN
Mounting Bolt Pattern Width10 IN
Mounting Hole Quantity4
Power OutYes
Rated Line Pull14000 LB
Remote IncludedYes
Remote TypeWire, Wireless
Requires MountYes
Solenoid TypeContactor
TypeElectric
Voltage12V
Winch RatingElectric

Product Literature

ZEON XP Winch LineUp

In unforgiving terrain there's no room for uncertainty. It's then that a dependable winch isn't just a show piece; it's a necessity—a literal lifeline. The all-new ZEON XP is Warn's top of the line — an ultimate performance pulling machine with unmatched control. It's the reliable, American assembled winch you can always count on to pull you through.

Available in capacities up to 14,000 lbs with your choice of steel cable or synthetic rope.

LEARN MORE →
ZEON XP Winch LineUp
10K–14K lbs
Capacity Range
IP68 / IP69K
Waterproof Rating
Up to 40 ft/min
No-Load Line Speed
Temp / Load / Battery
Performance Sensors
