Industrial

Industrial Accessories

When it's all on the line — engineered to save lives and endure the toughest situations.

Industrial

Industrial Accessories

When it's all on the line — accessories engineered for extreme industrial winching situations. View Fairleads →
Industrial Fairleads 1 Series
6.5" – 10"
Width Options
Series G2
Winch Compatible

Each product was engineered to create a seamless WARN industrial winching experience for extreme situations. Heavy-duty welded frame with high-strength steel rollers and permanently lubed bronze bushings for long roller life and smooth cable retrieval.

Industrial Roller Fairleads callout

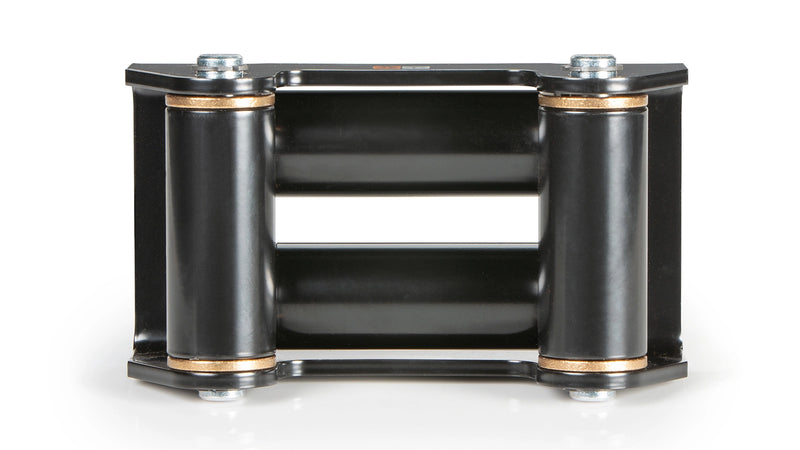

ROLLER FAIRLEADS — INDUSTRIAL

Heavy-duty welded frame; high-strength steel rollers; permanently lubed bronze bushings for long roller life and smooth cable retrieval. Corrosion, impact, salt, weather, and UV-resistant coating. Series G2 compatible.

29844 — Black, 6.5" drum →
24335 — Black, 8" drum →
24336 — Black, 10" drum →
107199 — Black, 12.5" drum (contact us to order) →

Series XL:
77532 — Black, Series XL, 8" drum (contact us to order) →
77869 — Black, Series XL, 14" drum (contact us to order)

Key Features
  • Roller fairleads: heavy-duty welded frame; high-strength steel rollers; permanently lubed bronze bushings
  • Corrosion, impact, salt, weather, and UV-resistant coating
  • Available widths: 6.5", 8", 10"
  • Series G2 compatible

HAWSE FAIRLEADS — SERIES G2

Durable coating is corrosion, impact, salt, weather, and UV-resistant. Large radius opening minimizes rope wear. Designed to fit WARN Series G2 winches.

107200 — 6.5" Hawse Fairlead for Series G2 (contact us to order) →
107201 — 8.0" Hawse Fairlead for Series G2 (contact us to order) →
107202 — 10.0" Hawse Fairlead for Series G2 (contact us to order) →
107203 — 12.5" Hawse Fairlead for Series G2 (contact us to order) →



Series G2 Modular Clutch 1 Series
4 Options
Manual · Air · Remote · Plugged
50–250 PSI
Air Clutch Range

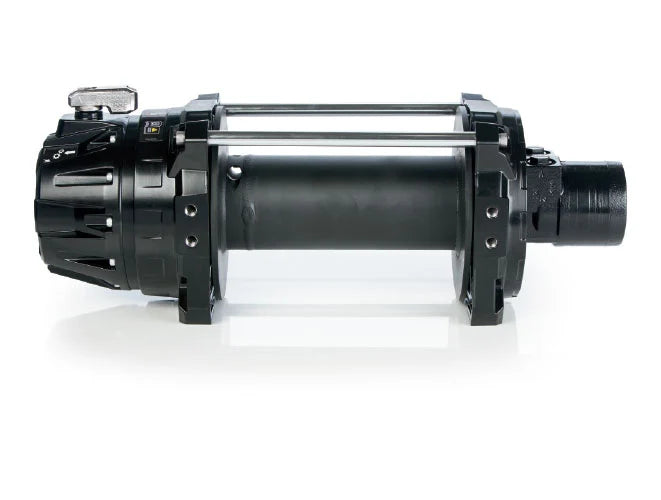

The Series G2 Modular Clutch system gives you four options to match your application — manual, air, remote, or plugged. All are purpose-built for WARN Series G2 industrial winches with durable corrosion-resistant finishes.

Series G2 Modular Clutch callout

MANUAL CLUTCH


107036 — Manual Clutch for Series G2 Winches (contact us to order) →
Standard heavy-duty manual clutch lever. Durable and corrosion-resistant finish.

AIR CLUTCH


107038 — Air Clutch for Series G2 Winches (contact us to order) →
Single acting air clutch with positive spring engagement. Enhanced design enables robust mounting. Operating range: 50–250 PSI (3.50 BAR – 17.25 BAR).

REMOTE CLUTCH


107037 — Remote Clutch for Series G2 Winches (contact us to order) →
Black powder-coated remote clutch lever. Enables easy integration from both driver and passenger side of the vehicle.

Also available:
Remote Clutch Extension Kit PN 107040 (contact us to order) →

PLUGGED CLUTCH


107039 — Plugged Clutch for Series G2 Winches (contact us to order) →
Removes freespool functionality for hidden applications.

Key Features

  • 107036 Manual Clutch: standard heavy-duty lever; corrosion-resistant finish
  • 107038 Air Clutch: positive spring engagement; 50–250 PSI operating range; robust mounting
  • 107037 Remote Clutch: black powder coat; driver and passenger side integration; extension kit available (107040)
  • 107039 Plugged Clutch: removes freespool for hidden installations
  • Contact us to order →

Tie Rods & Tie Bars 1 Series
6.5" – 12.5"
Width Options
Rods + Bars
Two Styles

Series G2 tie rods and tie bars maintain structural integrity of the winch and provide mounting options for rope tensioner kits. Choose the width that fits your configuration — available in 6.5", 8.0", 10.0", and 12.5" sizes.

Tie Rods & Tie Bars callout

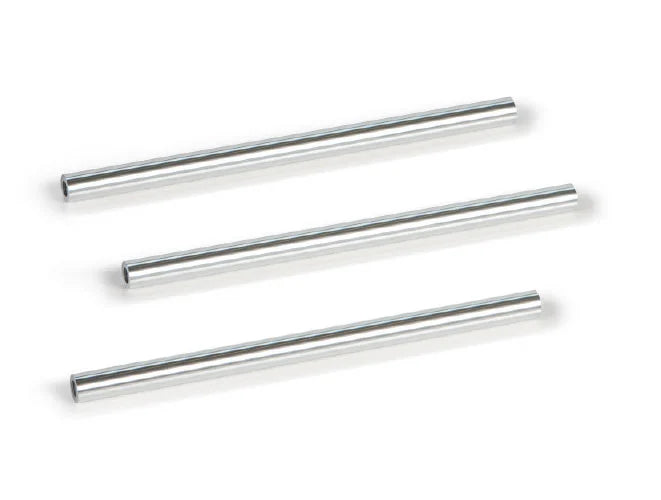

SERIES G2 TIE RODS

Maintains structural integrity of winch. Provides mounting options for rope tensioner kits.

107099 — 6.5" Industrial Tie Rod for Series G2 (contact us to order) →
98502 — 8.0" Industrial Tie Rod for Series G2 (contact us to order) →
98355 — 10.0" Industrial Tie Rod for Series G2 (contact us to order) →
98386 — 12.5" Industrial Tie Rod for Series G2 (contact us to order) →

SERIES G2 TIE BARS

Maintains structural integrity of winch. Aesthetically differentiating accessory option.

107100 — 6.5" Industrial Tie Bar for Series G2 (contact us to order) →
107101 — 8.0" Industrial Tie Bar for Series G2 (contact us to order) →
107102 — 10.0" Industrial Tie Bar for Series G2 (contact us to order) →
107103 — 12.5" Industrial Tie Bar for Series G2 (contact us to order) →

Key Features

  • Tie Rods: maintains structural integrity; mounting points for rope tensioner kits
  • Tie Bars: maintains structural integrity; aesthetically differentiating option
  • Both available in 6.5", 8.0", 10.0", and 12.5" widths
  • Designed for Series G2 industrial winches
  • Contact us to order → /pages/contact
Winch Accessories 1 Series
Up to 30,000 lbs
Industrial Snatch Block
12V + 24V
OLI Compatible

Choose accessories right for your heavy-duty towing or recovery operation. From Epic recovery kits and snatch blocks to wire rope tension kits, remote controls, and the Overload Interrupt system — WARN has everything you need for industrial winching.

Industrial Winch Accessories callout

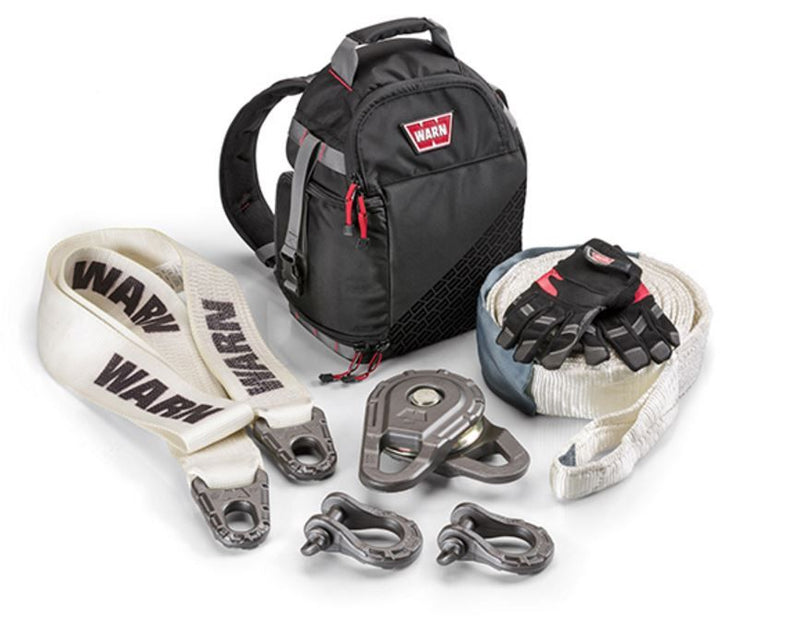

RECOVERY KITS


97570 — Epic Recovery Kit, Heavy Duty →
For winches up to 18,000 lbs. Includes two forged 3/4" Epic shackles; Epic tree trunk protector 4" x 8' rated to 30,000 lbs.; Epic snatch block up to 18,000 lbs.; premium recovery strap 3" x 30' rated to 21,600 lbs.; winching gloves.

97565 — Epic Recovery Kit, Medium Duty →
For winches up to 12,000 lbs.

95510 — Epic Recovery Backpack →
Rugged, modular Epic backpack; hands-free carrying; also available as standalone item.

PREMIUM RECOVERY STRAPS

18" nylon sliding sleeve prevents wear from sharp objects. Encased red warning marker indicates damaged webbing.

88922 — 2" x 30'; rated to 14,400 lbs. →
88924 — 3" x 30'; rated to 21,600 lbs. →

STANDARD RECOVERY STRAPS

Absorbs shock of heavy pulls; elastic rebound energy aids quick recovery.

88911 — 2" x 30'; rated to 14,400 lbs. →
88913 — 3" x 30'; rated to 21,600 lbs. →

Industrial Winch Accessories callout

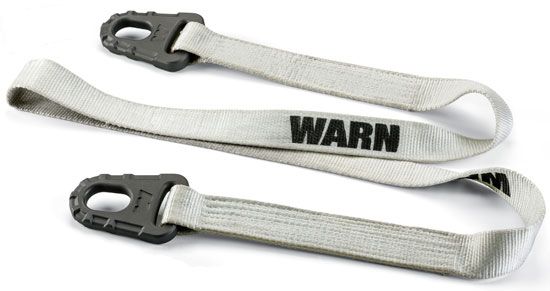

EPIC TREE TRUNK PROTECTORS

Forged steel ring connectors; E-coated for durability.

92095 — 2" x 8'; rated to 14,400 lbs. →
92096 — 4" x 8'; rated to 30,000 lbs. →

STANDARD TREE TRUNK PROTECTORS

Reinforced end loops with abrasion-resistant wear pads.

88897 — 2" x 8'; rated to 14,400 lbs. →
88995 — 4" x 8'; rated to 30,000 lbs. →

INDUSTRIAL SNATCH BLOCKS

Doubles pulling power; aids in sharp angle and three-point rigging.

15640 — For winches up to 12,000 lbs. →
63490 — For winches up to 15,000 lbs. →
80858 — For winches up to 30,000 lbs. →

EPIC SNATCH BLOCKS

Forged construction; grease port; E-coat finish.

92188 — For winches up to 12,000 lbs. →
93195 — For winches up to 18,000 lbs. →

Industrial Winch Accessories callout

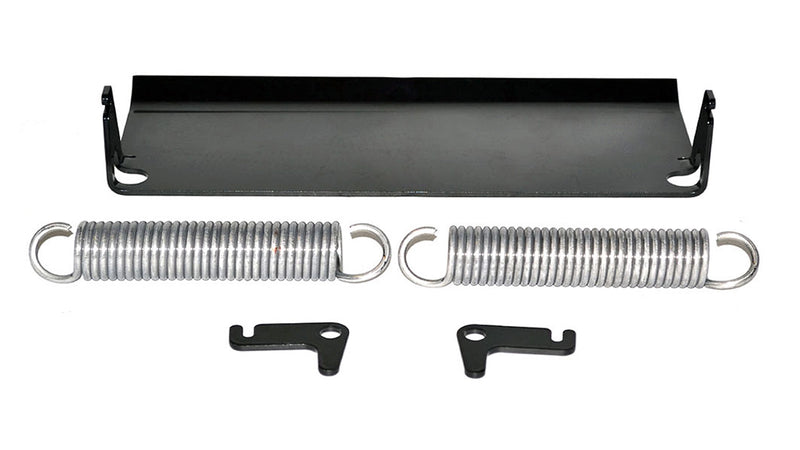

WIRE ROPE TENSION KITS

Prevents wire rope tangling when freespooling. Assists in uniform wire rope spooling.

31282 — 12.5" wide drum →
31149 — 10" wide drum →
31150 — 8" wide drum →
34373 — Series 6 →

Industrial Winch Accessories callout

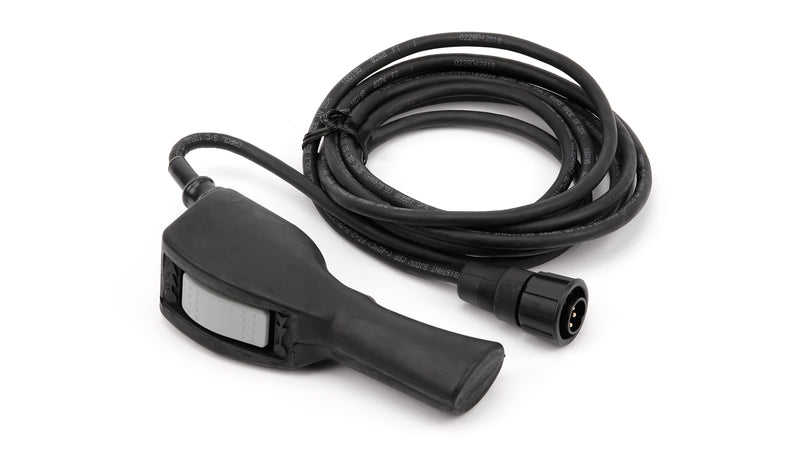

WINCH REMOTE CONTROLS

Weatherproof industrial-quality corded remote controls. Designed to meet stringent performance standards.

DC Electric Industrial Winches:
88528 — 12' (3.65m) lead →
88527 — 33' (10.05m) lead →

DC Electric Severe Duty Winches:
85394 — 33' (10.05m) lead →

OVERLOAD INTERRUPT (OLI)

Digital technology designed to limit a winch's maximum pulling power in overload or low-voltage situations. Contact WARN Customer Service for ordering assistance.

  • LED display provides motor current feedback
  • Sealed against moisture and chemical damage
  • For all WARN Industrial electric winches; 12V and 24V compatible
  • Factory programmed to customer specifications; field-reprogrammable by trained factory representatives

Key Features

  • Epic Recovery Kit Heavy Duty (97570): for winches up to 18,000 lbs.; Epic shackles, tree protector, snatch block, recovery strap, gloves
  • Epic Recovery Kit Medium Duty (97565): for winches up to 12,000 lbs.
  • Epic Recovery Backpack (95510): modular; hands-free carry; standalone available
  • Premium Recovery Straps (88922/88924): 18" sliding sleeve; 14,400–21,600 lbs.
  • Standard Recovery Straps (88911/88913): 14,400–21,600 lbs.
  • Epic/Standard Tree Trunk Protectors: 2" and 4" widths; up to 30,000 lbs.
  • Snatch Blocks (15640/63490/80858): up to 30,000 lb. winch capacity
  • Wire Rope Tension Kits (31282/31149/31150/34373): standard drum widths 8"–12.5" and Series 6
  • Remote Controls (88528/88527/85394): industrial and severe duty; 12' and 33' leads
  • OLI: 12V/24V; LED feedback; field-reprogrammable

Ropes 1 Series

WARN offers synthetic and wire rope options engineered specifically for industrial winching demands — from heat-treated Spydura Pro to fully armored Spydura ProMax for military and severe duty applications, plus a comprehensive range of EIPS wire rope assemblies in every size.

Industrial Ropes callout

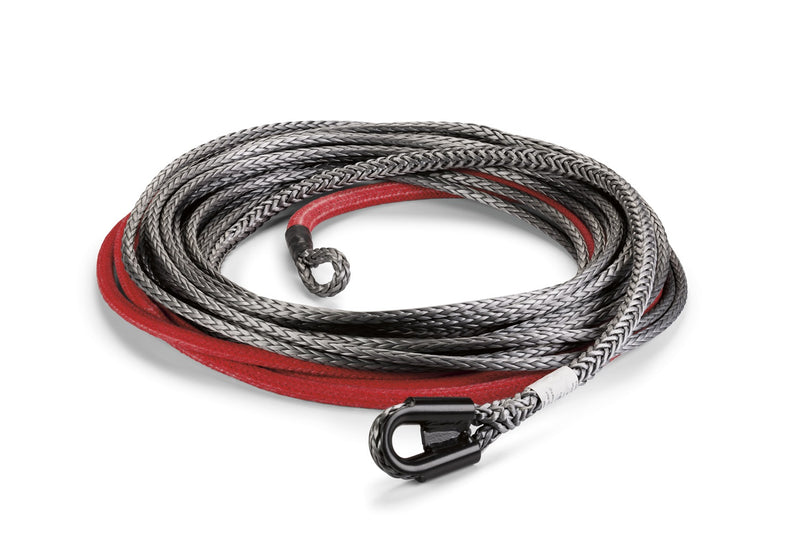

WARN SPYDURA® PRO SYNTHETIC ROPE

Heat treated for improved strength and rope length. Available for all Electric Series winches.

  • Heat-treated Spectra® 1000 fiber; maximum tensile strength and load bearing capacity
  • Compacted diameter for higher density and more rope length on the drum
  • Compacted diameter prevents sand and dirt from penetrating fibers; extends rope life
  • Coated for increased UV and chemical resistance
  • High-temperature resistant sleeve on the first layer
  • Ballistic nylon sliding sleeve for extra abrasion and wear protection


93120 — 80' x 3/8" →
91820 — 100' x 7/16" →

Industrial Ropes callout

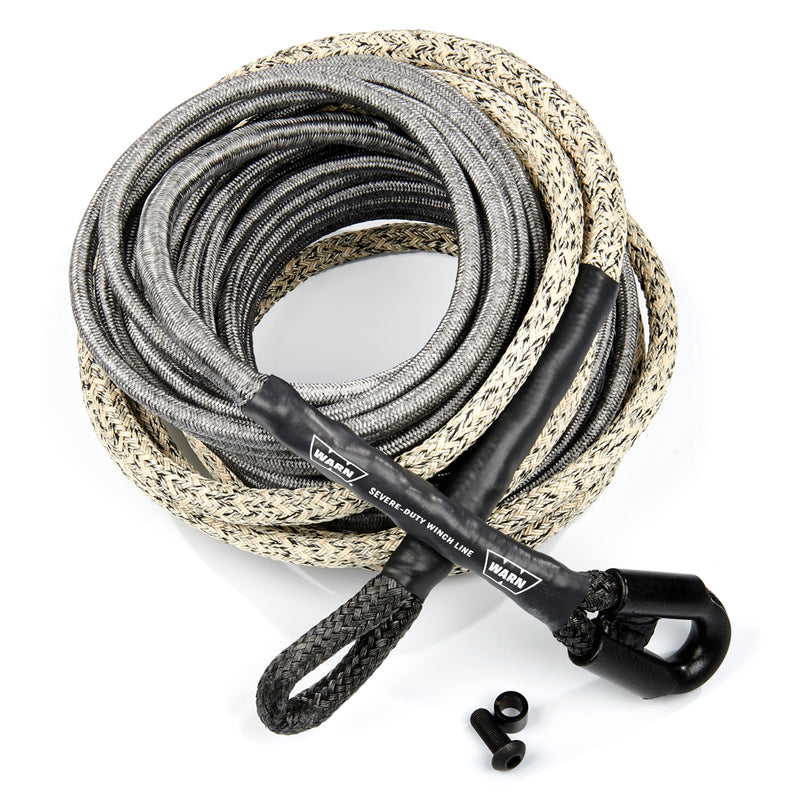

WARN SPYDURA® PROMAX SYNTHETIC ROPE

Fully armored for abrasion resistance. Exclusively developed for Military/Severe Duty applications.

  • Unique 6-strand Dyneema® SK-75 fiber construction for superior rope durability
  • Full-length woven cover for ultimate abrasion, dirt, and UV resistance
  • High-temperature resistant material woven directly into cover
  • Reinforced welded steel tube thimble and braided eyelets for maximum capacity


91840 — 70' x 1/2" →

Industrial Ropes callout

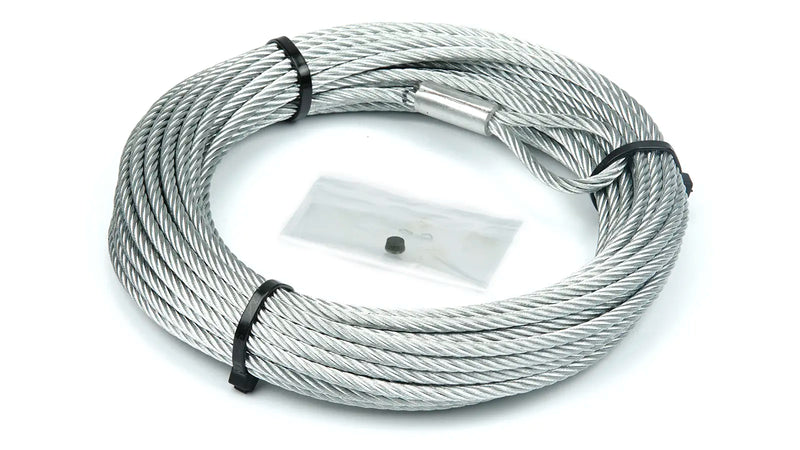

WIRE ROPE AND HOOK ASSEMBLIES

EIPS industrial-grade wire rope assemblies. Forged steel hook, hook latch, and metal protection thimble included in most assemblies.


3/16":
60076 — 3/16 x 50' Galvanized →

7/32":
68851 — 7/32 x 55' Galvanized →

1/4":
24889 — 1/4 x 25' EIPS →
24890 — 1/4 x 40' EIPS →
24891 — 1/4 x 50' EIPS →
71297 — 1/4 x 60' Galvanized →
24893 — 1/4 x 100' Galvanized →

5/16":
38309 — 5/16 x 50' Galvanized →
24899 — 5/16 x 75' EIPS →
24900 — 5/16 x 100' EIPS →

3/8":
23671 — 3/8 x 50' EIPS →
23672 — 3/8 x 75' EIPS →
27569 — 3/8 x 30M EIPS →
23674 — 3/8 x 125' EIPS →

7/16":
23677 — 7/16 x 75' EIPS →
23678 — 7/16 x 100' EIPS →

1/2":
80352 — 1/2 x 60' EIPS →
77534 — 1/2 x 75' EIPS →

9/16":
77451 — 9/16 x 140' EIPS (hook not included) →
77452 — 9/16 x 245' EIPS (hook not included) →

5/8":
77453 — 5/8 x 140' EIPS (hook not included) →
77454 — 5/8 x 245' EIPS (hook not included) →

Hoist Control Packs

Industrial control packs and remote controls are sold separately from WARN hoist units. Locate your hoist model in the chart below, then order the control pack and remote control that fits your DC-powered hoist. Control pack and remote are each sold separately.

Industrial Remote Controls (All Hoist Models)

PN
Description
88528
Heavy Duty Industrial Remote — 12 ft. (3.65m) lead
88527
Heavy Duty Industrial Remote — 10 meter (33 ft.) lead

Control Pack Fitment Chart

Control packs, contactors, and covers listed below are available through WARN Customer Service. Contact WARN directly for ordering assistance.

Hoist Model
Motor Type
Control Pack
Contactor / Cover
DC800-12V
Permanent Magnet
63926
Contactor (universal bracket): 83321
Contactor (WARN cover bracket): N/A
Cover (with remote plug): 36648
Cover (w/o remote plug): 35169
DC800-24V
Permanent Magnet
93926
Contactor (universal bracket): 83322
Contactor (WARN cover bracket): N/A
Cover (with remote plug): 36648
Cover (w/o remote plug): 35169
DC1000-12V
Permanent Magnet
63926
Contactor (universal bracket): 83321
Contactor (WARN cover bracket): N/A
Cover (with remote plug): 36648
Cover (w/o remote plug): 35169
DC1000-24V
Permanent Magnet
93926
Contactor (universal bracket): 83322
Contactor (WARN cover bracket): N/A
Cover (with remote plug): 36648
Cover (w/o remote plug): 35169
DC1200-CF-12V
Permanent Magnet
63926
Contactor (universal bracket): 83321
Contactor (WARN cover bracket): N/A
Cover (with remote plug): 36648
Cover (w/o remote plug): 35169
DC1200-CF-24V
Permanent Magnet
93926
Contactor (universal bracket): 83322
Contactor (WARN cover bracket): N/A
Cover (with remote plug): 36648
Cover (w/o remote plug): 35169
DC1600-LF-12V
Permanent Magnet
40709
Contactor (universal bracket): 34440
Contactor (WARN cover bracket): 34973
Cover (with remote plug): 36648
Cover (w/o remote plug): 35169
DC1600-LF-24V
Permanent Magnet
63752
Contactor (universal bracket): 34968
Contactor (WARN cover bracket): 34974
Cover (with remote plug): 36648
Cover (w/o remote plug): 35169
DC2000-MF-12V
Permanent Magnet
40709
Contactor (universal bracket): 34440
Contactor (WARN cover bracket): 34973
Cover (with remote plug): 36648
Cover (w/o remote plug): 35169
DC2000-MF-24V
Permanent Magnet
63752
Contactor (universal bracket): 34968
Contactor (WARN cover bracket): 34974
Cover (with remote plug): 36648
Cover (w/o remote plug): 35169
DC2000-MF-12V
Series Wound
39602
Contactor (universal bracket): 34969
Contactor (WARN cover bracket): 34975
Cover (with remote plug): 36648
Cover (w/o remote plug): 35169
DC2000-MF-24V
Series Wound
39603
Contactor (universal bracket): 34970
Contactor (WARN cover bracket): 34976
Cover (with remote plug): 36648
Cover (w/o remote plug): 35169
DC2000-LF-12V
Permanent Magnet
40709
Contactor (universal bracket): 34440
Contactor (WARN cover bracket): 34973
Cover (with remote plug): 36648
Cover (w/o remote plug): 35169
DC2000-LF-24V
Permanent Magnet
63752
Contactor (universal bracket): 34968
Contactor (WARN cover bracket): 34974
Cover (with remote plug): 36648
Cover (w/o remote plug): 35169
DC2500-LF-12V
Permanent Magnet
40709
Contactor (universal bracket): 34440
Contactor (WARN cover bracket): 34973
Cover (with remote plug): 36648
Cover (w/o remote plug): 35169
DC2500-LF-24V
Permanent Magnet
63752
Contactor (universal bracket): 34968
Contactor (WARN cover bracket): 34974
Cover (with remote plug): 36648
Cover (w/o remote plug): 35169
DC3000-LF-12V
Series Wound
39602
Contactor (universal bracket): 34969
Contactor (WARN cover bracket): 34975
Cover (with remote plug): 36648
Cover (w/o remote plug): 35169
DC3000-LF-24V
Series Wound
39603
Contactor (universal bracket): 34970
Contactor (WARN cover bracket): 34976
Cover (with remote plug): 36648
Cover (w/o remote plug): 35169
DC4000-LF-12V
Series Wound
39602
Contactor (universal bracket): 34969
Contactor (WARN cover bracket): 34975
Cover (with remote plug): 36648
Cover (w/o remote plug): 35169
DC4000-LF-24V
Series Wound
39603
Contactor (universal bracket): 34970
Contactor (WARN cover bracket): 34976
Cover (with remote plug): 36648
Cover (w/o remote plug): 35169
